JRZ AT PRO - G WAGEN W463A (2018+)

This product is made to order.

Description:

We are new in the 4×4 market, but a pioneer in damping technology for over 50 years.

The JRZ system provides unique features that has changed the vision of damping by professional race teams all over the world. Focus is to control the movement of the un-sprung mass, which is considered to consist of the wheel, tire, brake, control arms. The movement of the un-sprung mass determines the way how the contact patch of the tire will follow road irregularities.

Race cars require stability during cornering and braking. They also need the ability to absorb big impacts when hitting curbs or enter rough road surfaces. Using the lifting force the damper creates due to the use of nitrogen pressure in conjunction with the rod diameter and the frequency responsive blow off valve in compression, both areas are tackled.

The combination of lifting force and compression damping created by the frequency responsive blow off valve gives the vehicle platform and stability. When the suspension experience impacts, the damper force created by the blow off valve controls the acceleration of the un-sprung mass.

The moment the suspension moves, the damper creates a significant amount of low speed compression damping resulting in body control. The compression damping in combination with the lifting force due to the nitrogen pressure is available over the full stroke. Therefore there is no need for a hydraulic bump stop.

Having worked in the field of armored vehicles, where center of gravity sits high due to the applied armoring, the JRZ system provides support when cornering and braking, without giving up on comfort but with excellent off road performance.

JRZ decided to enter the 4×4 truck market with this unique damping philosophy.

• Straight bolt-in
• No hopping
• Leveling and up to 2 inch lift
• Improved handling on and off road
• Better comfort level
• Better stability of vehicle body
• Fine yet noticeable change per click
• 14 clicks compression
• 21 clicks rebound
• High volume canister
• Adjustable gas pressure
• Heavy Duty bearings
• Fully rebuildable
• Long stroke kit customization possible

Features:

• External reservoir to increase volume for nitrogen pressure and heat dissipation
• Nitrogen gas pressure creates a lifting force. In combination with the frequency responsive blow off valve it gives the vehicle a high level of platform and body control as well as superb handling on off road conditions
• Swivel hose for ease of installation and prevent of stress on the hose after installation
• High grade anodized aluminium damper body and reservoir
• Chromoly induction hardened and hard chrome plated piston rod
• Heavy Duty bearings

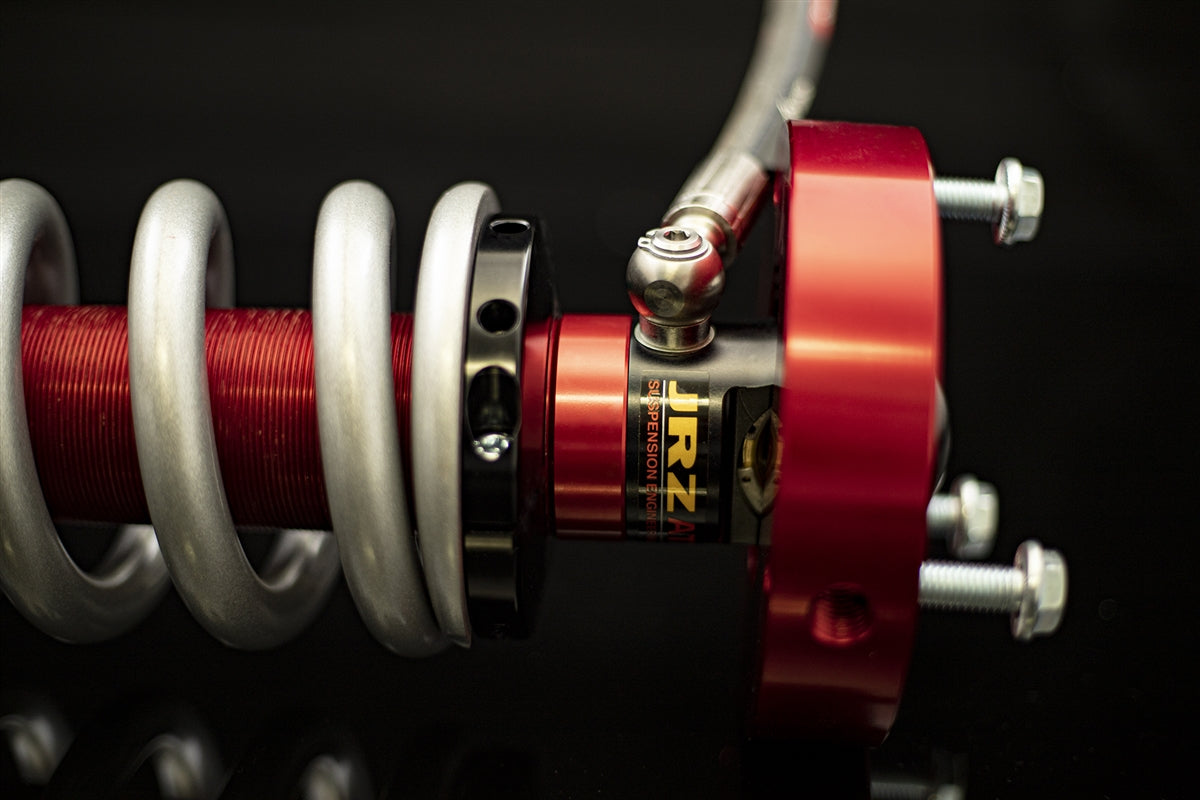

• High grade anodized aluminium top mounts. Specially engineered for extreme use. Under extreme conditions the force is not applied on the bolt due to design
• Fully rebuildable
