GEN 1 - UPPER CONTROL ARM DROP BRACKET - CAYENNE/TOUAREG

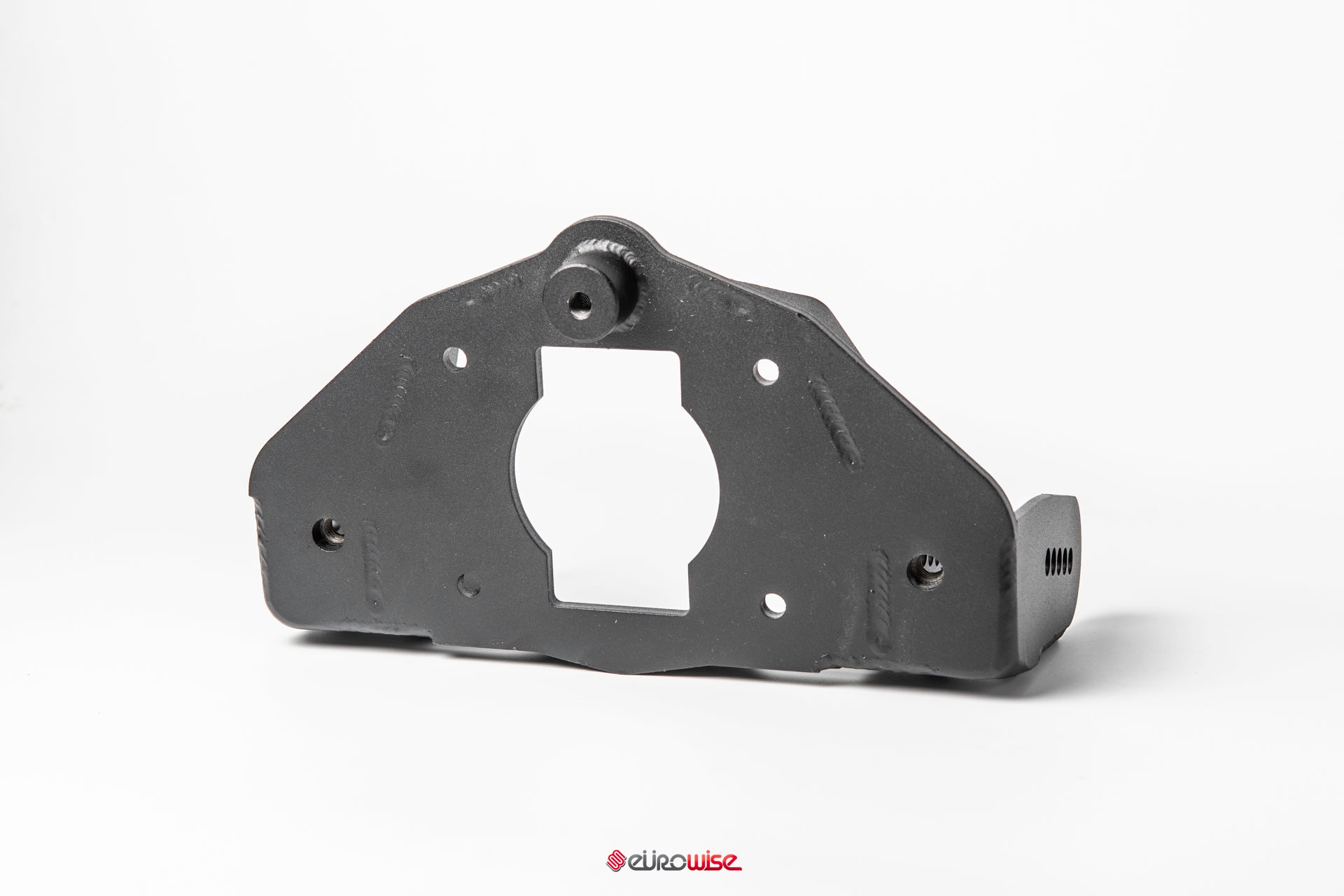

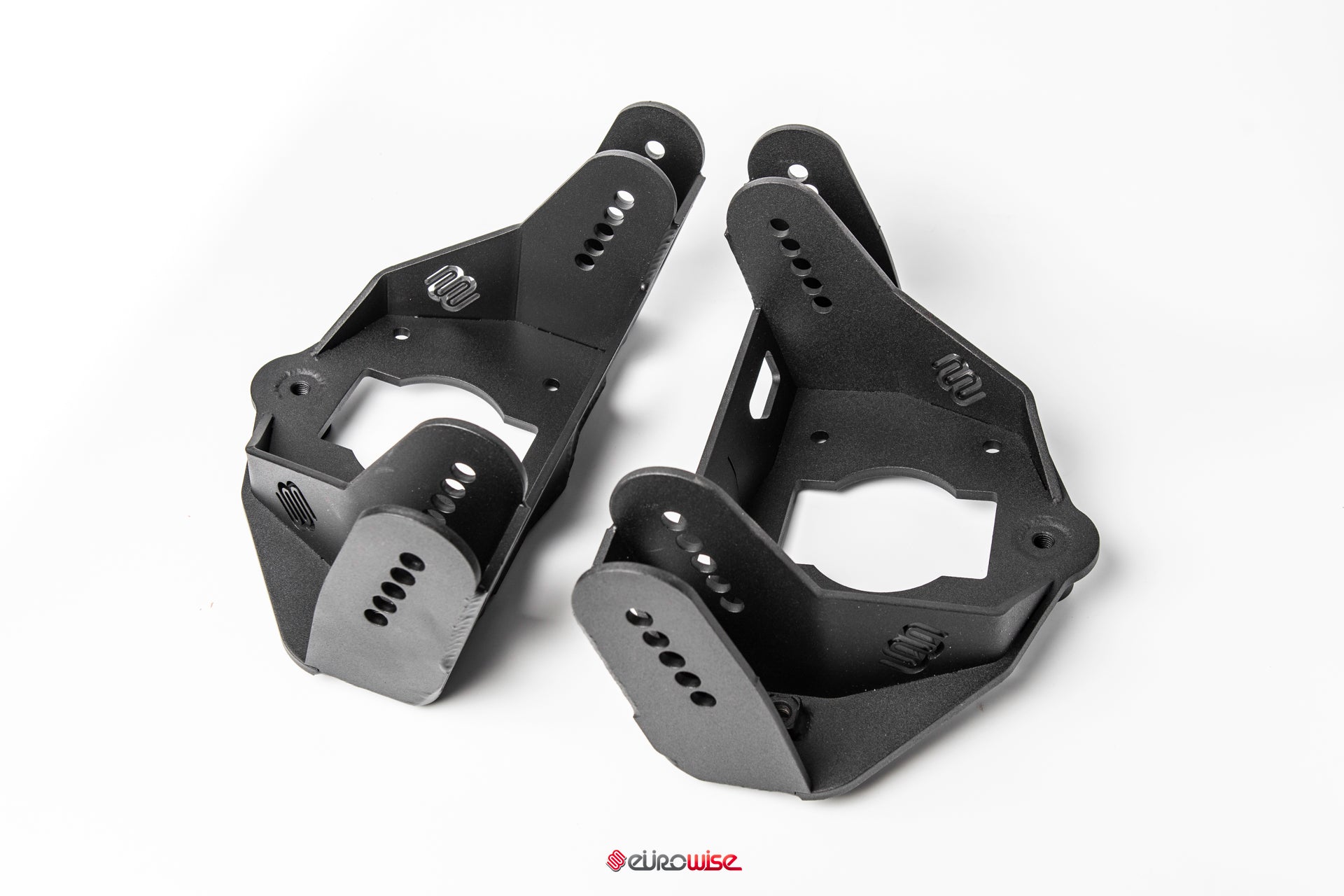

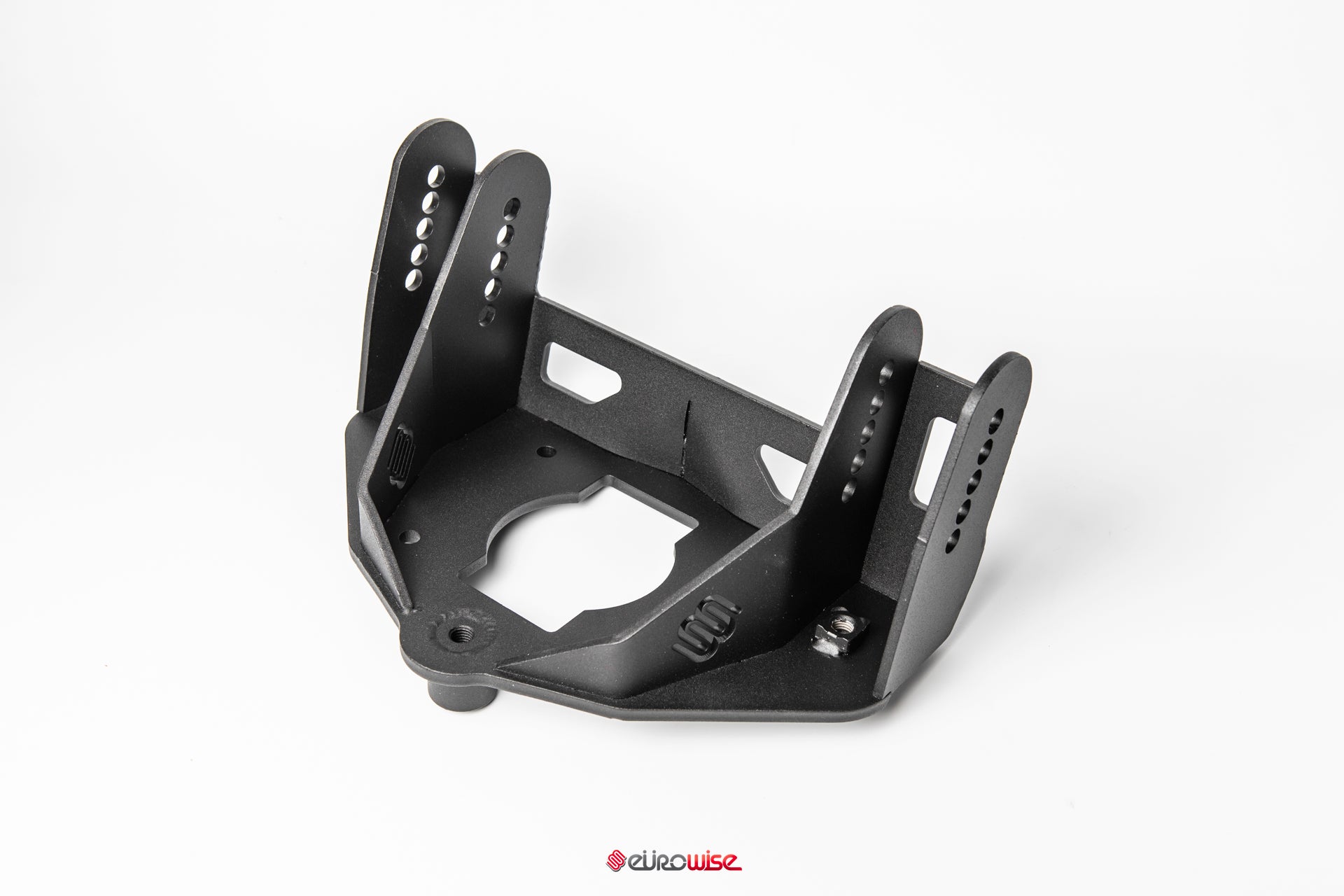

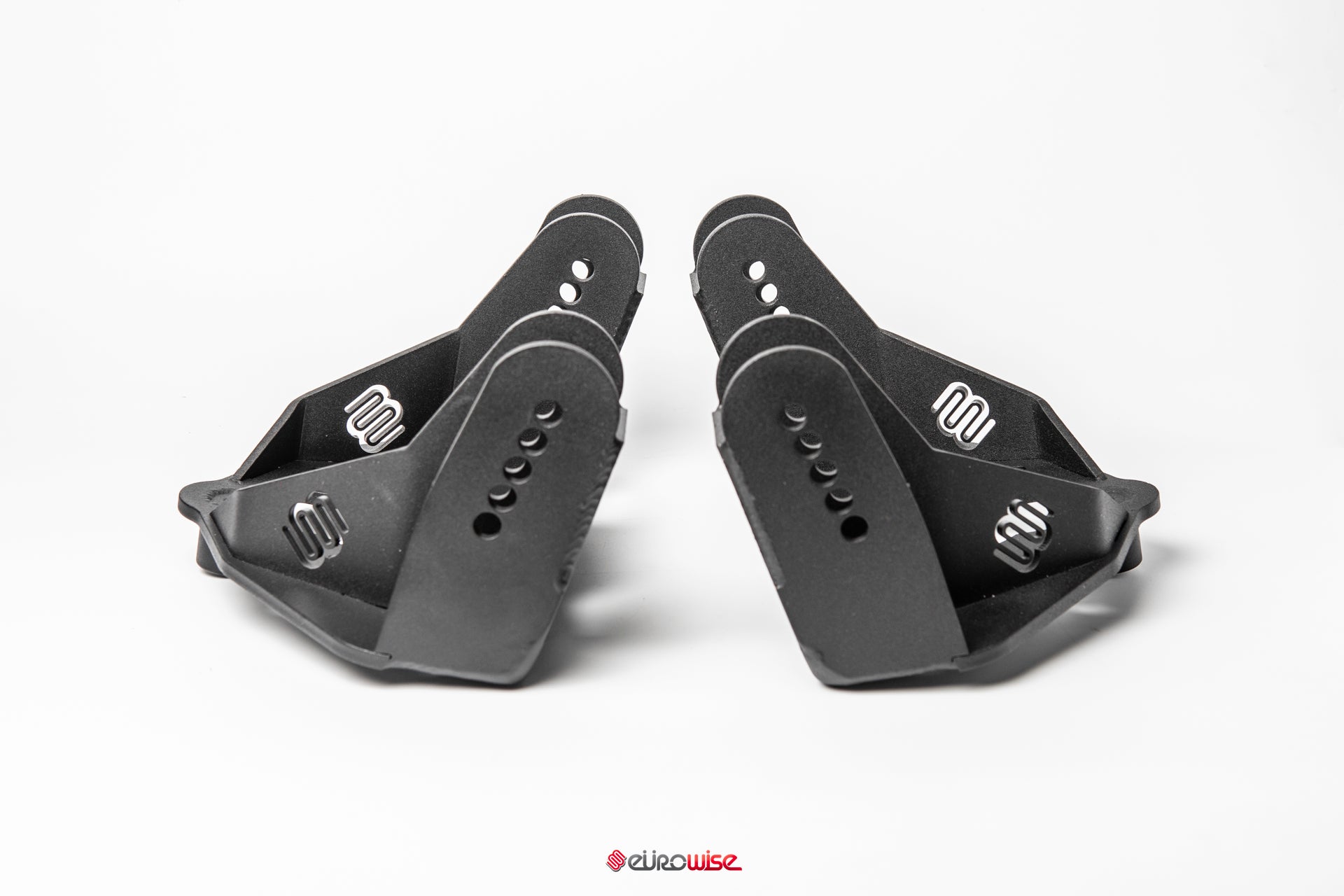

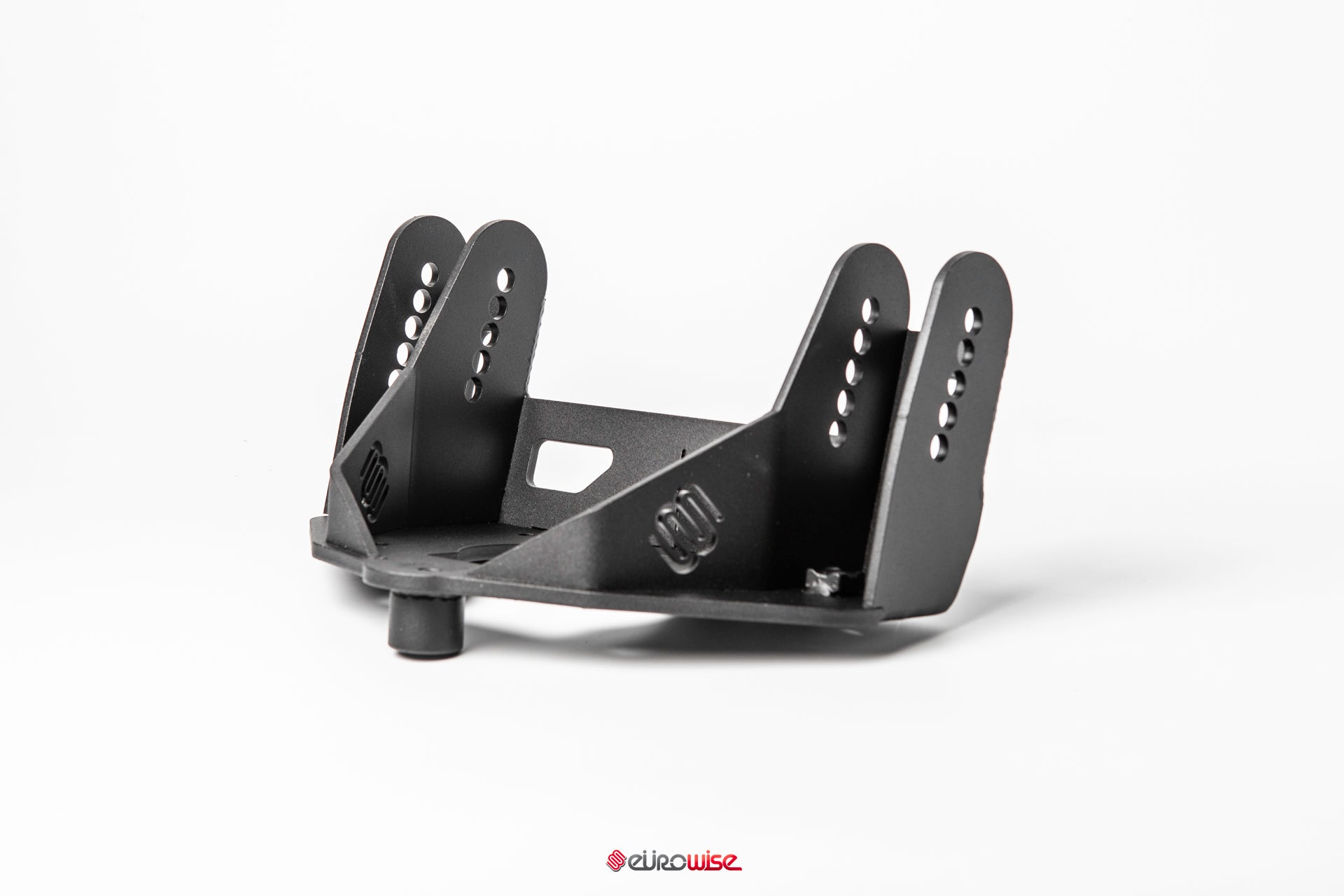

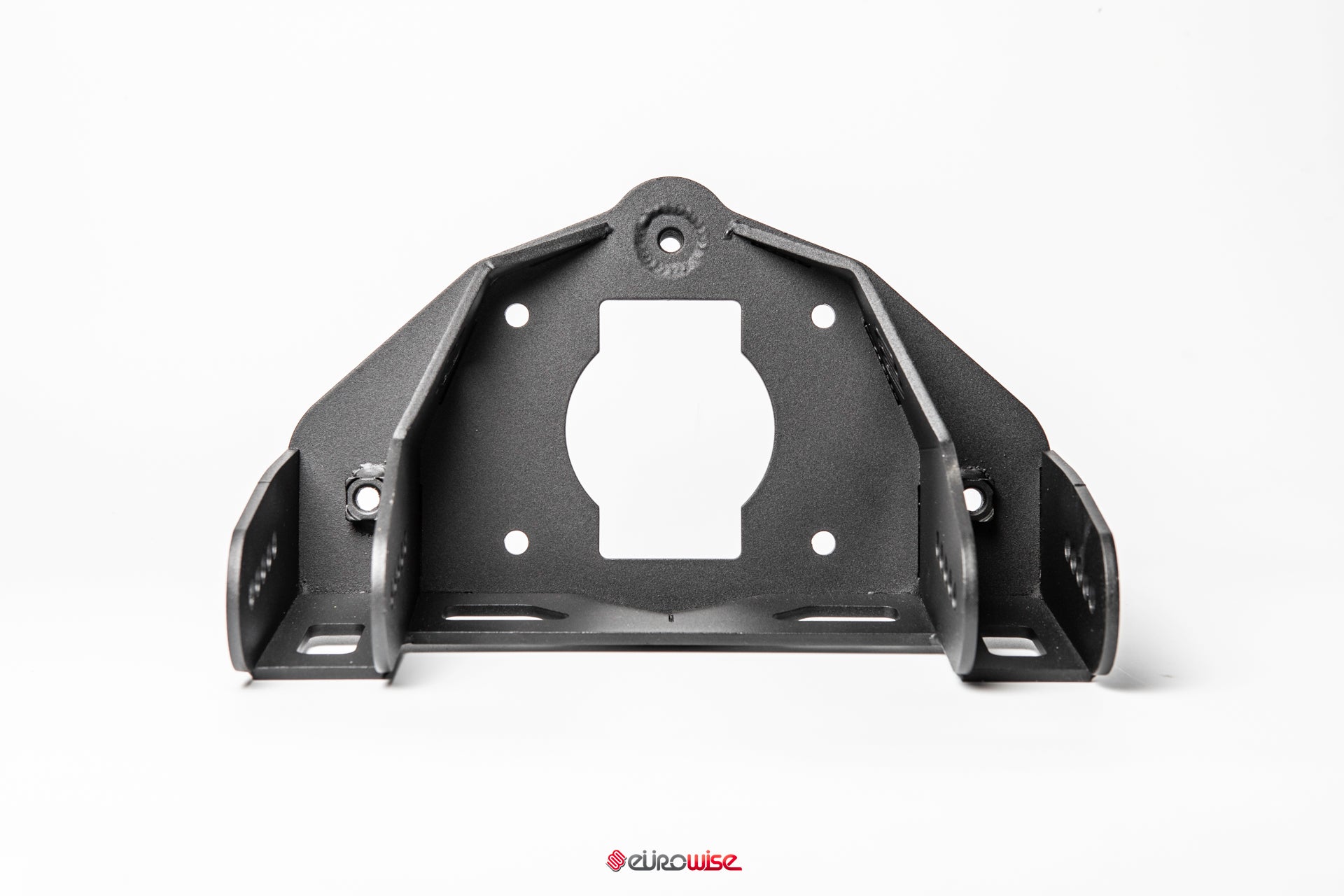

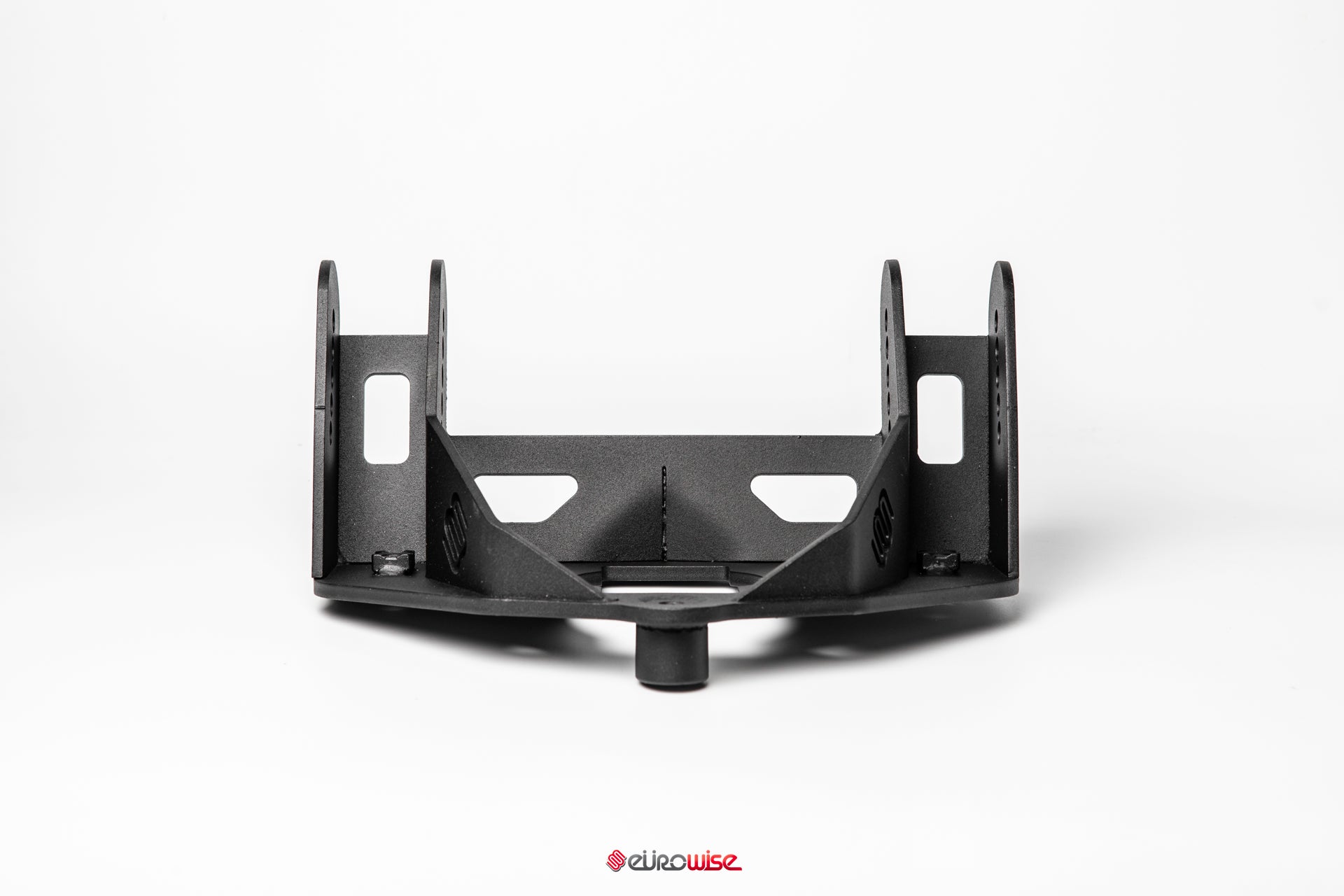

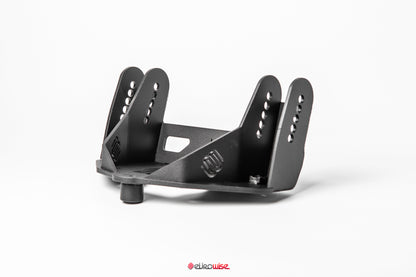

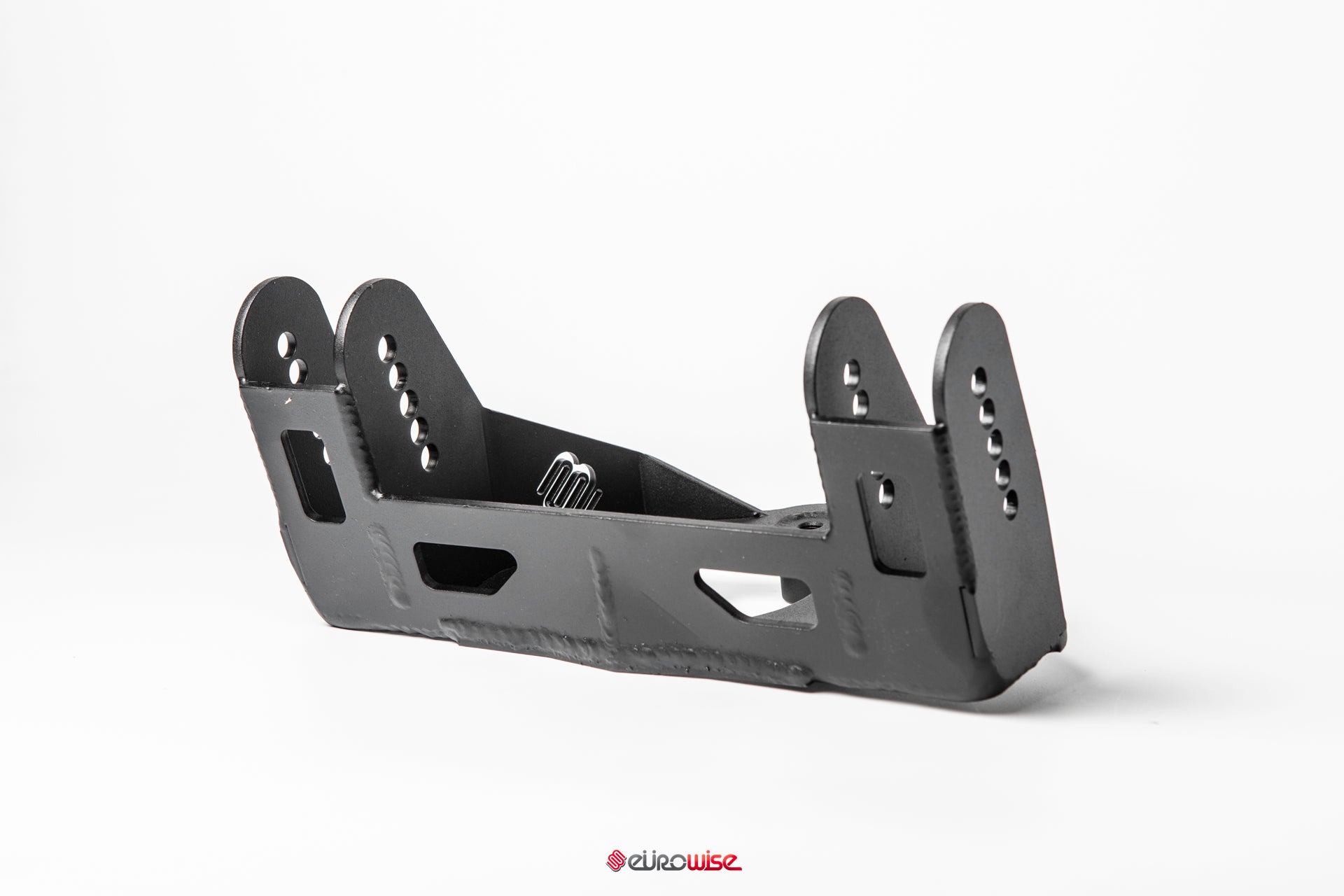

Eurowise Upper Control Arm Drop Bracket for Gen 1 Porsche Cayenne, VW Touareg, and Audi Q7

On the first-generation Cayenne, Touareg, and Q7, the OEM upper control arm mounting position sits over 2.5 inches below the strut tower, limiting available shock travel. The Eurowise Upper Control Arm Drop Bracket is designed to reclaim that unused space, providing increased up-travel and allowing for the use of longer-than-OEM shocks without excessive subframe drop.

By repositioning the control arm mount directly to the chassis, this bracket allows for improved suspension geometry while maintaining full down-travel—even with extended-length shocks. Multiple mounting positions are integrated into the bracket to accommodate varying setups and to compensate for camber gain/loss throughout the suspension cycle, particularly on vehicles with lowered subframes.

Each bracket is CNC cut, TIG welded, and powder-coated black, crafted in-house from 3/16” steel for maximum strength and durability. As with most Eurowise products, these brackets are backed by a limited lifetime warranty.

For best results, we recommend pairing these with Eurowise Adjustable Upper Control Arms for full alignment control and articulation potential.

FITMENT:

2002-2010 VW Touareg (with steel coil spring suspension)

2002-2010 Porsche Cayenne (with steel coil spring suspension)

2007-2015 Audi Q7 (with steel coil spring suspension)

PRODUCT INCLUDES:

(2) Front Upper Control Arm Mounts

THIS IS A MOTORSPORT PRODUCT FOR THE GUYS LOOKING TO MIX AND MATCH LONGER TRAVEL COILOVERS AND SUBFRAME DROPS FOR DIFFERENT CONFIGUARATIONS AND ARE LOOKING TO FINE TUNE THE SUSPENSION GEOMETRY. SOME CHASSIS MODIFICATIONS MAY BE REQUIRED TO FIT THEM
