VR6 ENGINE CONVERSION KIT - MK1 (R32/24V/3.2)

Eurowise R32 VR6 Engine Conversion Kit

Upgrade your build with the ultimate 24V R32 VR6 engine conversion, compatible with drivetrains from the R32, Passat, and Touareg. Handcrafted in-house at Eurowise in the USA, this kit is designed for easy installation without cutting, grinding, or welding, preserving the pristine condition of your engine bay.

Built from high-quality mild steel and TIG-welded for durability and strength, this kit offers multiple stages to match your power goals and driving needs. Whether you’re building a show car or performance vehicle, our conversion kits provide a seamless solution that’s also completely reversible, allowing you to return to the original configuration if desired.

Key Features

• Drive-By-Wire Adapter Plate Included
  Simplifies the installation of your throttle pedal for a clean and professional setup.
• No Cutting or Welding Required
  Keeps your engine bay intact, making installation straightforward and preserving your vehicle’s value.
• Reversible Design
  Offers the flexibility to revert to the original setup without permanent modifications.
• Stage Options Available
  Tailor your conversion to your performance needs and vehicle usage.

Important Notes:

1. Transmission Compatibility

   • This mount kit is specifically designed for use with 02A 5-speed and 02J 5-speed VR6 transmissions only.

2. Right-Hand Drive Vehicles

   • For right-hand drive vehicles, our adapter will not work. A hydraulic clutch conversion is required for these setups.

3. 12V Engine Compatibility

   • 12V engine owners should purchase the specific kit designed for their engine type: 12V Conversion Kit.

Chassis Fitment Applications:

• Scirocco Mk1 / Left and Right Hand Drive (1974-1982)
• Scirocco Mk2 / Left and Right Hand Drive (1982-1992)
• Golf Rabbit Caddy Jetta Mk1/ Left and Right Hand Drive (1974-1984)
• Golf Cabriolet Mk1/ Left and Right Hand Drive (1974-1992)

Engine Fitment Applications:

• 24 Valve R32 VR6
• 2.8 & 3.2 VR6 Motors
• All 24 Valve VR6 Motors (Jetta, Golf, GTI, Eurovan)
• All 24 Valve Motors from (Audi, Porsche, Volkswagen)

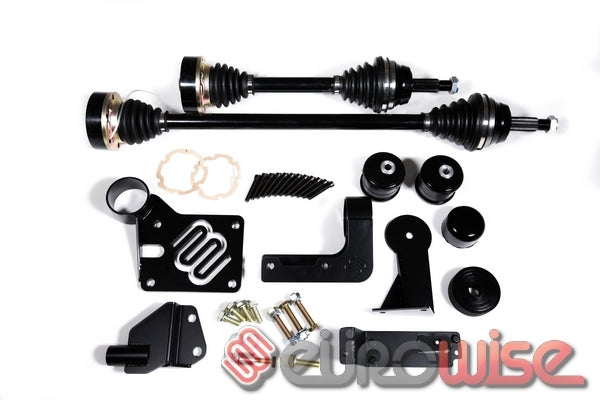

Contents:

• X1 Front Engine Mount w/Hardware & Bushing
• X1 Rear Engine Mount w/Hardware & Bushing
• X1 Upper Transmission Mount w/Hardware & Bushing
• X1 Lower Transmission 4th Mount w/Hardware & Bushing
• X1 Front Engine Mount Spacer w/Hardware
• X1 Custom Performance Axles w/Hardware
• X1 Drive By Wire

Seen above with Cayenne 3.2 Engine Swap

Important Notes for Installation

1. Reverse Switch Interference with 02J Transmissions

   • If using an 02J transmission with our manual cable conversion, you may experience interference with the reverse switch.
   • Solution: When using the 02J shifter tower or transmission, the mounting flange for the reverse switch must be cut off to resolve the issue.

2. Axle Flange Compatibility with Late-Model 02J Transmissions

   • Late-model 02J transmissions (e.g., 1.8T and VR6) are equipped with 108mm axle flanges, which are incompatible with our axles.
   • Solution: Replace the axle flanges with the following parts:
     • Qty 2: 02A-409-355D
     • Qty 2: 02J-409-359

MK1 Vehicles Older Than 1981

If your MK1 was manufactured prior to 1981, you may require 2 shims to prevent axle rubbing inside the spindle housing.

• These shims, included in the kit, should be installed between the outer CV joint and the inner wheel bearing for proper clearance.

DISCLAIMER - FOR OFF-ROAD USE ONLY

Eurowise parts, are sold for off-road use only. All performance modifications and installations are at the customers own risk.Eurowise Performance Fabrication Inc. or www.eurowise.com hold no responsibility either implied or otherwise for mechanical, electrical or other failure when using any aftermarket performance products. Items sold for off-road use only are illegal in many states and provinces and are intended for racing vehicles which may never be used on a public road.

By purchasing any aftermarket performance product, the customer takes full responsibility for any use, and/or misuse of the product and agrees that Eurowise Performance or www.shop.eurowise.com holds no responsibility for any consequences, legal, or other, of such use and/or misuse.
