ALUMINUM RADIATOR FAN SWITCH KIT

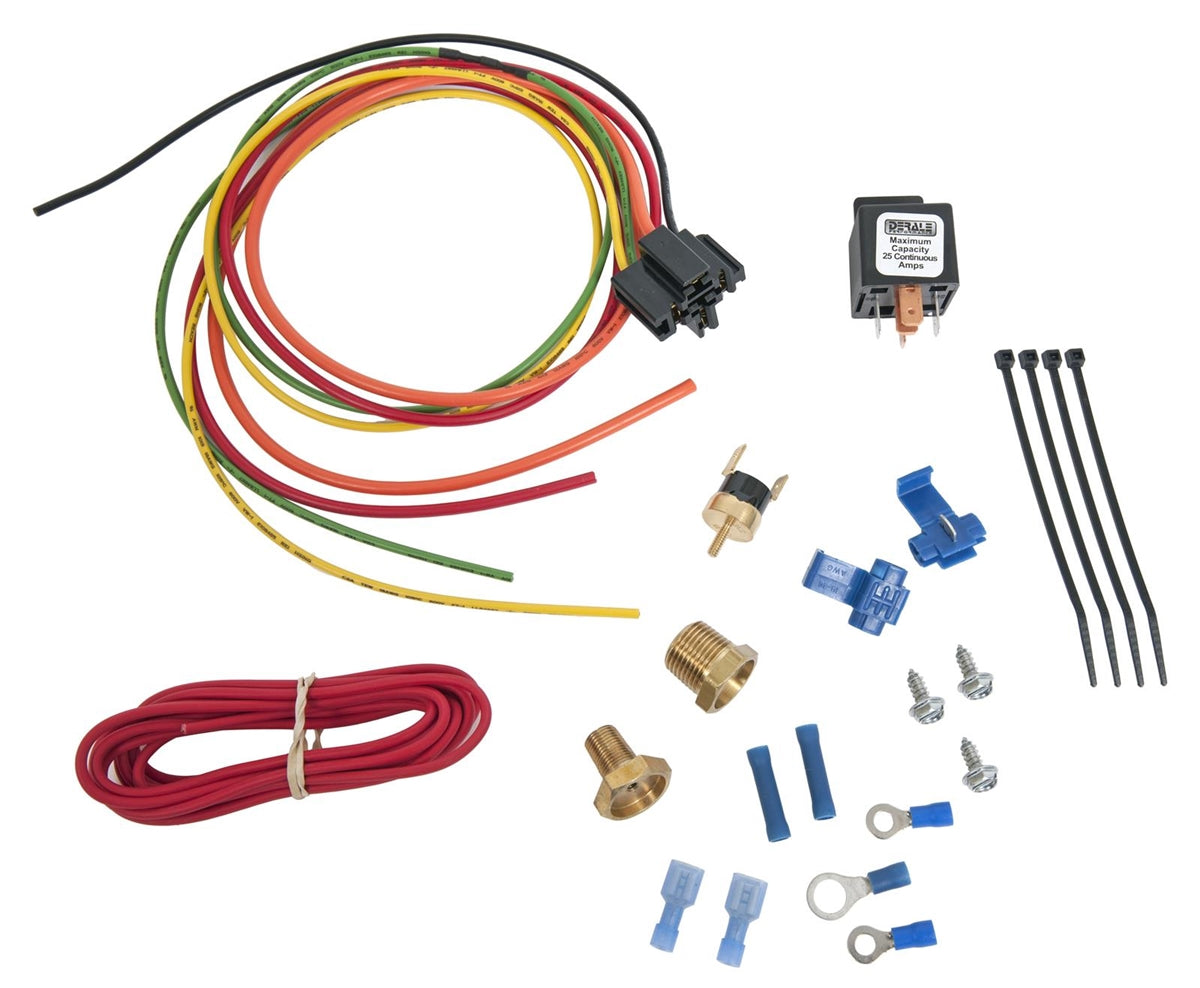

These fan switch kits are what we use in our aluminum radiators. 190°F-on/175°F-off electric fan control kit includes the 1/8" NPT threaded switch, 1/8" x 3/8" NPT adapter bushing and a relay wire harness to make it an easy installation. Maximum capacity on this kit is 25 amps.

Features:

• Single stage fan control thermostat with 190°F turn-on temperature
• Turn-off temperature is preset at 175°F
• Fits into either a 3/8" NPT or 1/8" NPT port
• 3/8" NPT x 1/8" NPT bushing included
• 40/60 amp relay wire harness with AC override included

NOTE: These do not fit into any OEM VW Radiators

Eurowise single-stage fan controllers can be installed in the side of the Eurowise aluminum radiator. They activate fans at a specific temperature and turn them off at a preset temperature. The controllers are available for single or dual fans.
