ENGINE CONVERSION (MOUNTS ONLY) - MK1 (02A/02J)

Eurowise 02A/02J Transmission Mount Conversion Kit

This kit provides a complete solution to convert your 4-cylinder or 6-cylinder engine swap into a modern 02A/02J transmission case. Designed for strength, reliability, and adaptability, the kit offers two configurations to suit your build:

• Upper Mount Only for standard setups.
• Upper and Lower Mounts for added support and durability, using the rear lower OEM mounting support.

The rear lower mount is optional and may not be needed when using the OEM front mount, depending on your power plant and setup.

Customization Options

When ordering, select the configuration that best fits your needs:

• Upper Mount Only
• Lower Mount Only
• Upper and Lower Mounts Together

Key Features

• Includes hardware and polyurethane bushings for installation.
• Compatible with OEM mounts, allowing press-in installation if preferred.

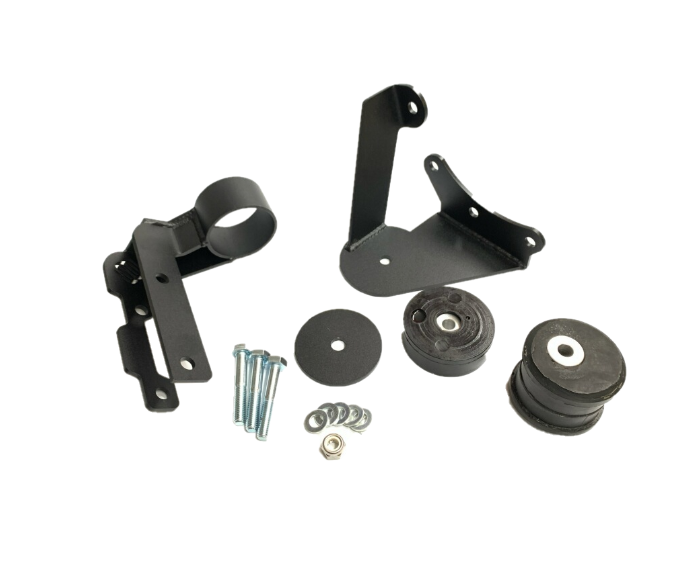

Parts Included

Upper Mount Kit

• Transmission Upper Mount
• Transmission Bracket
• Polyurethane Bushing
• 2x Mounting Bolts
• 4x Bolt Washers
• 2x Nuts

Lower Mount Kit

• Transmission Lower Mount
• Transmission Bracket
• Polyurethane Bushing
• 1x Mounting Bolt
• 2x Bolt Washers
• 1x Nut

Important Notes for Installation

1. Reverse Switch Interference with 02J Transmissions

   • If using an 02J transmission with our manual cable conversion, there may be interference with the reverse switch.
   • Solution: Cut off the mounting flange for the reverse switch when using the 02J shifter tower or transmission.

2. Axle Flange Compatibility with Late-Model 02J Transmissions

   • Late-model 02J transmissions (e.g., 1.8T and VR6) feature 108mm axle flanges, which are incompatible with our axles.
   • Solution: Replace the axle flanges using these part numbers:
     • Qty 2: 02A-409-355D
     • Qty 2: 02J-409-359

DISCLAIMER - FOR OFF-ROAD USE ONLY

Eurowise parts, are sold for off-road use only. All performance modifications and installations are at the customers own risk.Eurowise Performance Fabrication Inc. or www.eurowise.com hold no responsibility either implied or otherwise for mechanical, electrical or other failure when using any aftermarket performance products. Items sold for off-road use only are illegal in many states and provinces and are intended for racing vehicles which may never be used on a public road.

By purchasing any aftermarket performance product, the customer takes full responsibility for any use, and/or misuse of the product and agrees that Eurowise Performance or www.shop.eurowise.com holds no responsibility for any consequences, legal, or other, of such use and/or misuse.
