Eurowiseoffroad

Spherical Rear Toe Arms (Cayenne/Touareg/Q7)

SKU: EWOR6190R1

No reviews
Regular price $285.00 USD
Regular price Sale price $285.00 USD
Sale Sold out
Shipping calculated at checkout.
Usually Ships in 1 to 2 Weeks

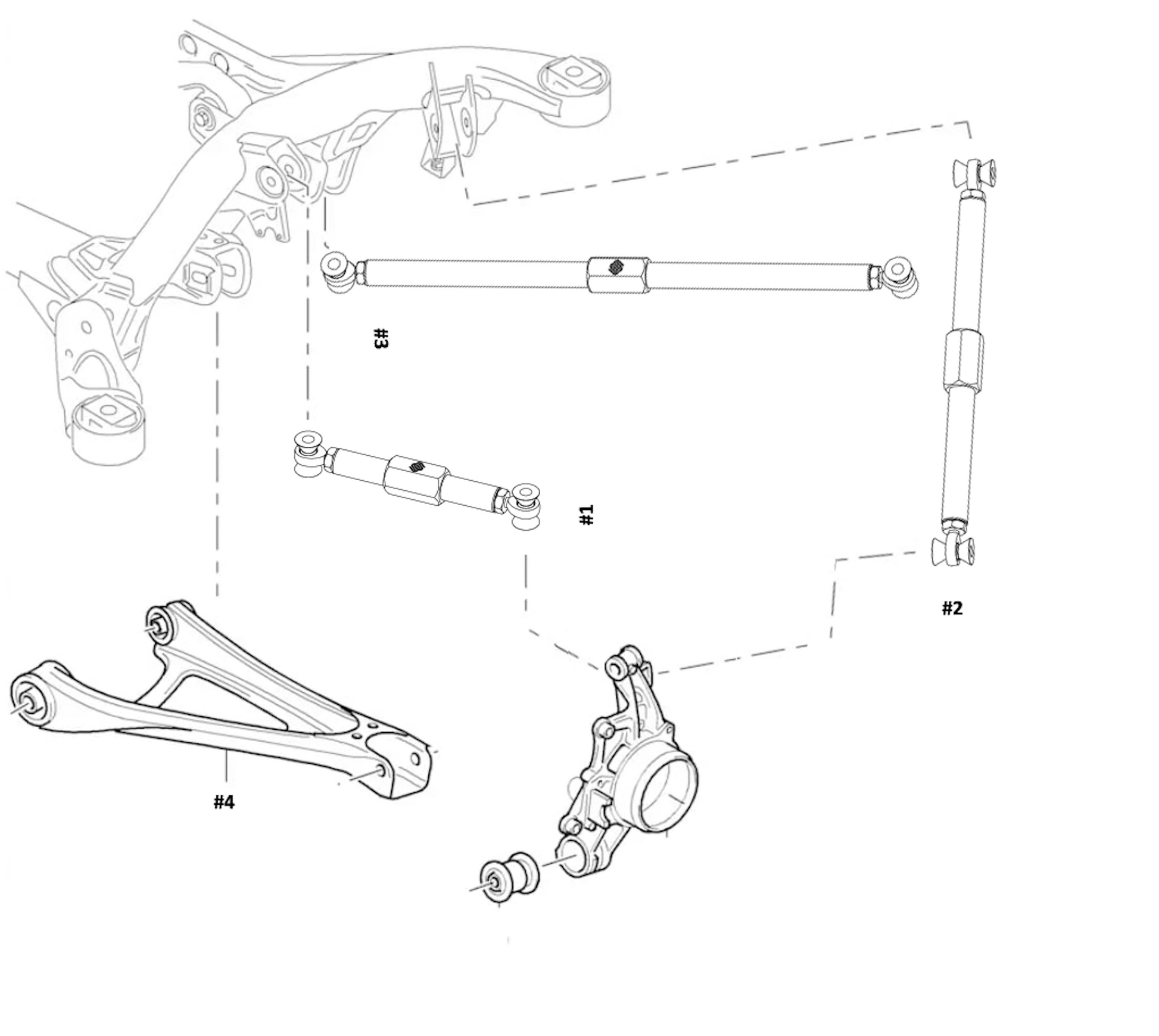

Cayenne Touareg Q7 rear toe arms are problematic and very flimsy from the factory. We've designed this robust steel tubular replacement arm that's direct bolt on built from DOM tubing.

This kit uses 3 piece heim joints. These bearings are maintenance and noise free, unlike urethane bushings.

We use right & left-hand threads as this making adjusting if needed easier on the vehicle without having to remove the arm completely.

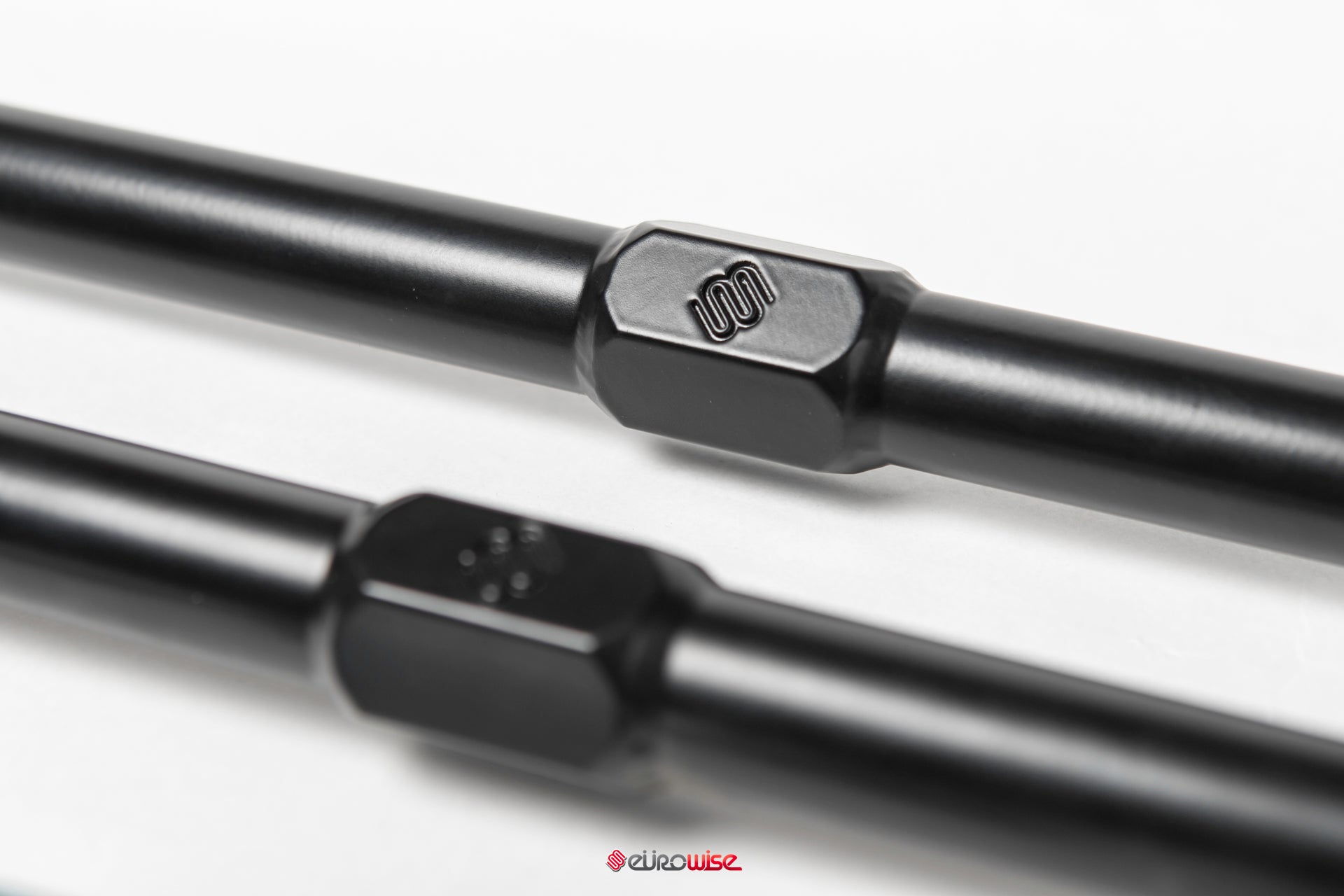

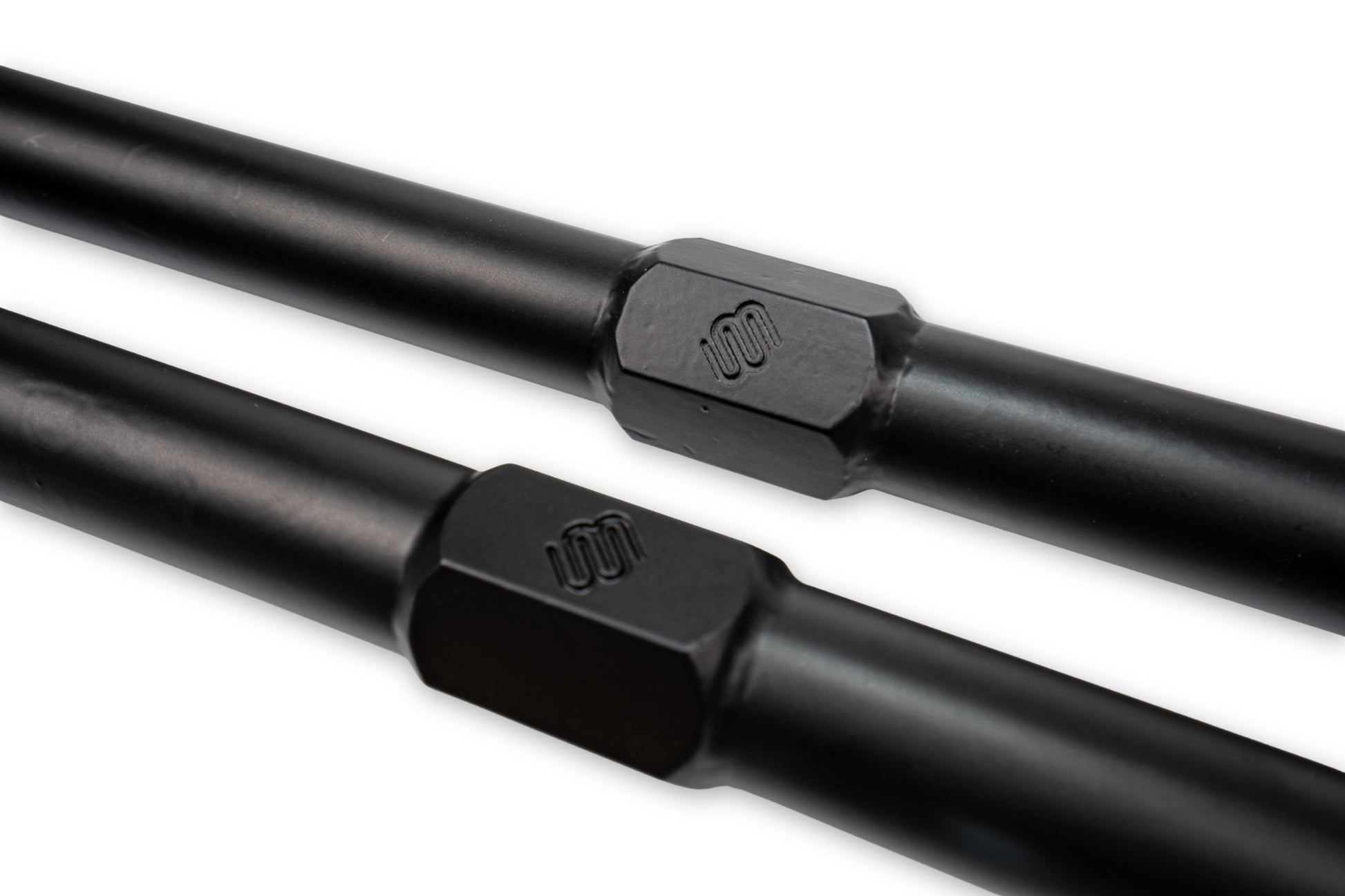

The arms come powder coated texture black, un-like the competitor, they are are adjustable on the vehicle and have adjuster nuts welded to the center of every bar.

We've also included TOE lockout tabs that replace the OEM Cam bolt to lock in your alignment. OEM cam bolts are known to lose settings while off-roading.


These arms are pre-adjusted and set to the stock lengths and are ready to install using the OEM hardware.

FITMENT:
2004-2010 Touareg/Cayenne
2011-2017 Touareg/Cayenne (air suspension only)
2007-2015 Q7

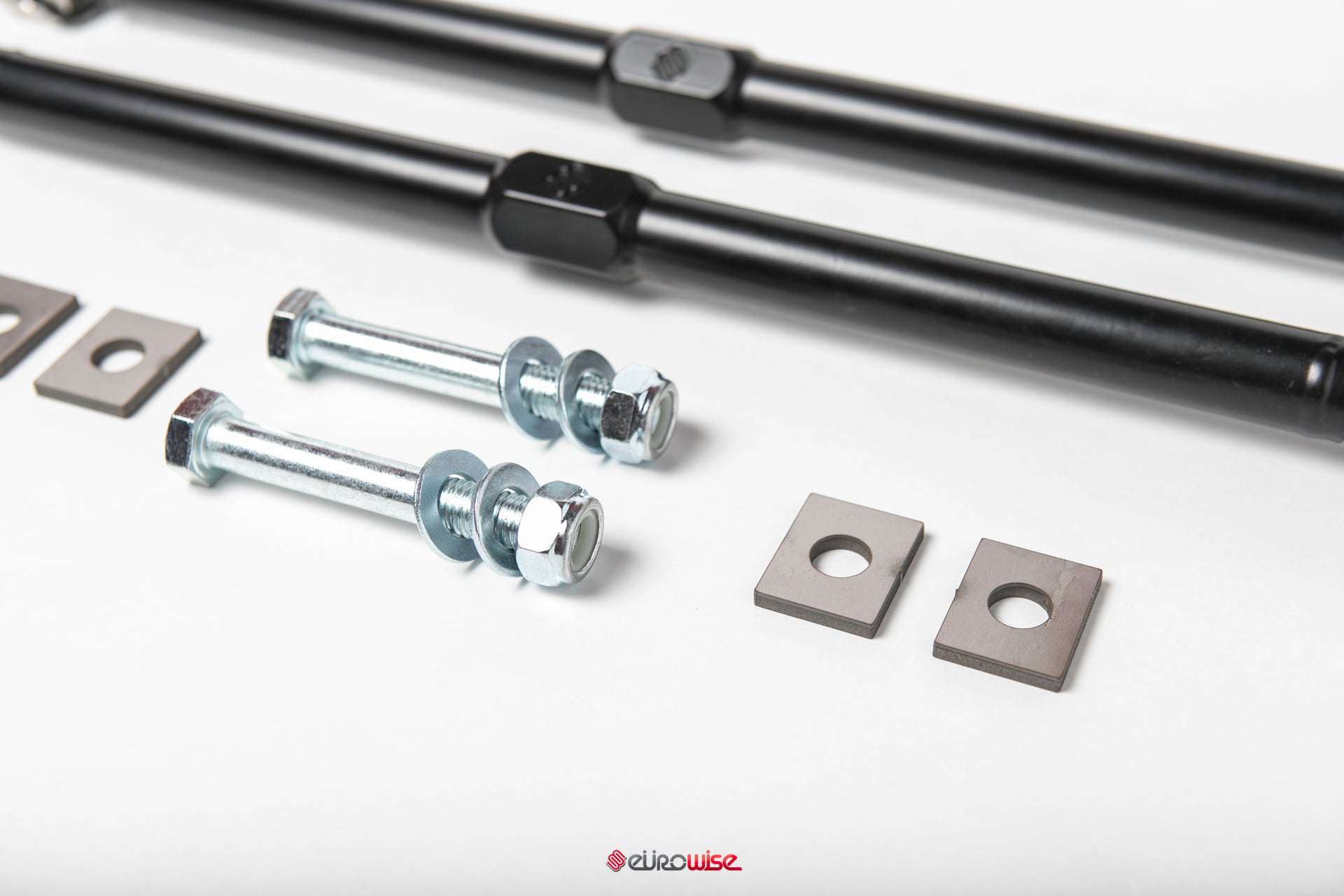

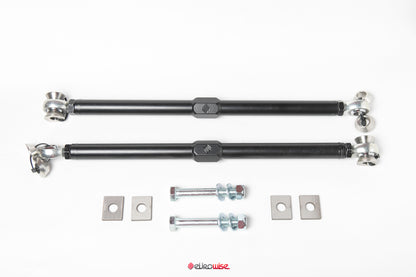

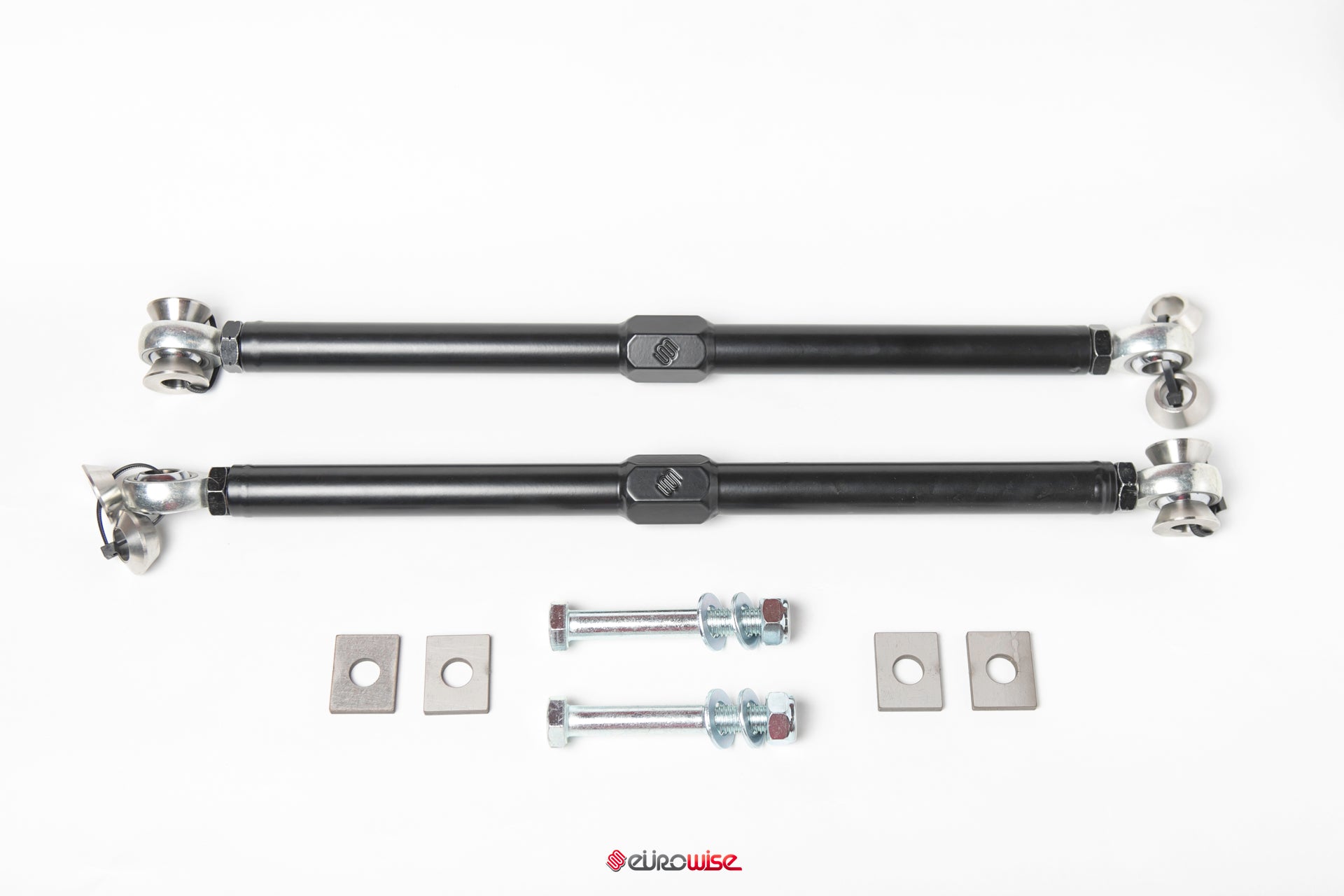

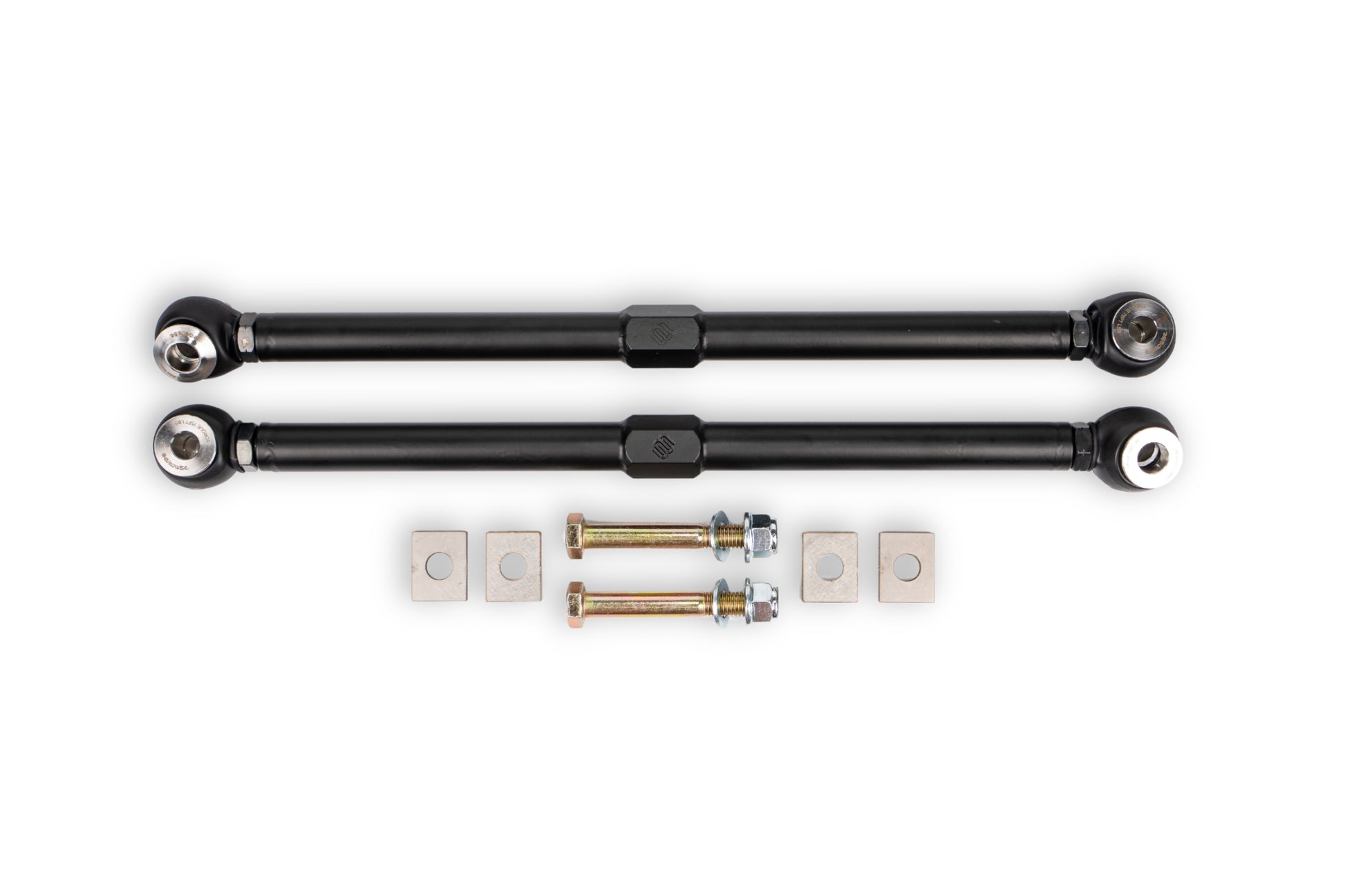

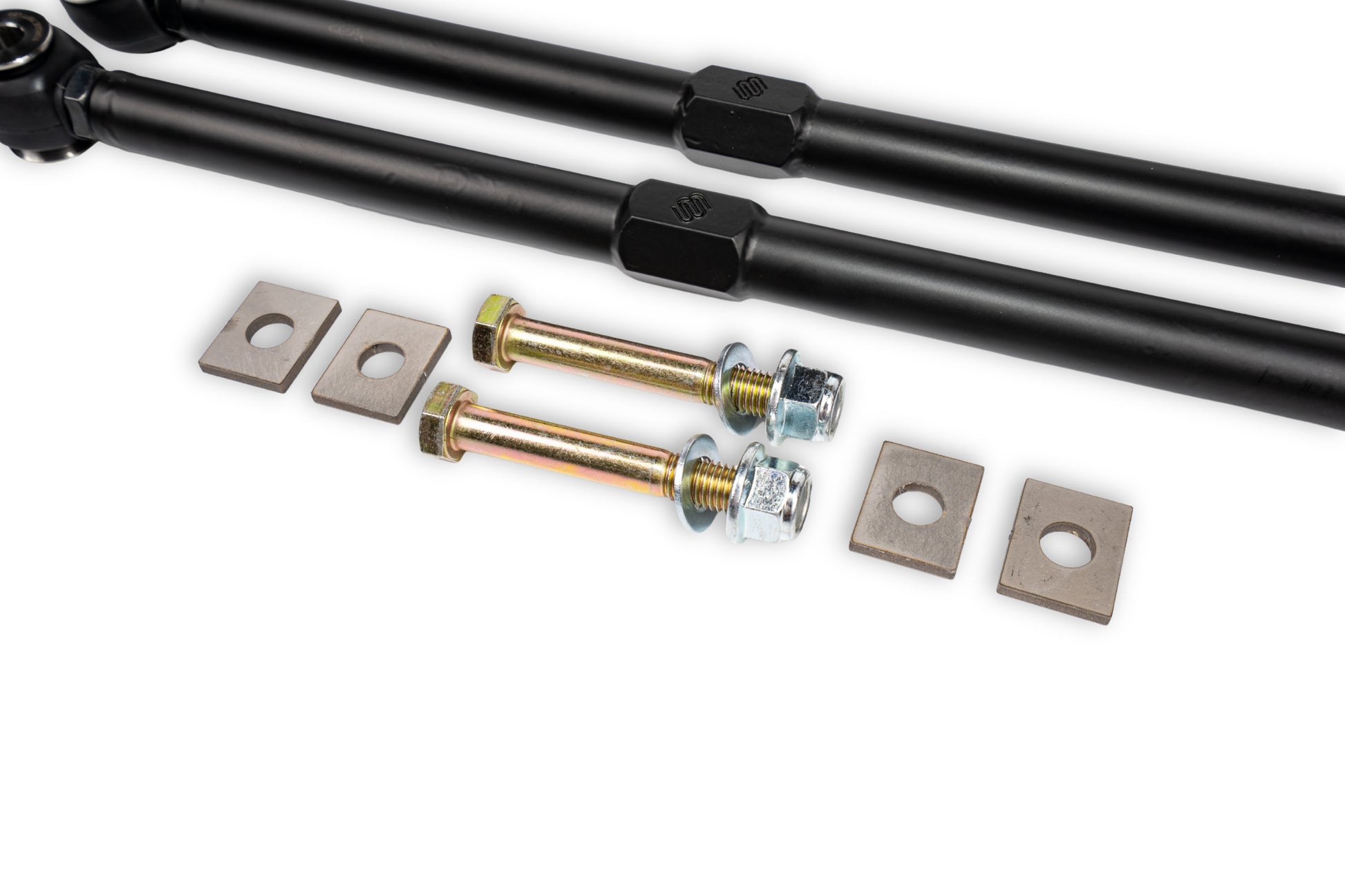

PRODUCT INCLUDES:
QTY. 2 Rear Toe Arms
QTY. 4 Aluminum Offset Spacers
QTY. 4 Toe Lockout Tabs
QTY. 2 Mounting Bolts

BENEFITS:
  • Allows for wider range of adjustment over OEM
  • Holds precise alignments since sphericals stay true and centered and don’t compress and sag over time.
  • Eliminates suspension deflection and geometry changes under load seen with rubber or urethane bushings.
  • Resistant to harsh weather, street and racing conditions
  • Fully rebuildable

SPECS:

  • 6061 T6 aluminum offset spacers
  • Anodized for long lasting protection
  • Tubes are welded with Left & Right hand threads which allows for easy alignment adjustability without removing arms
  • Heims come preassembled with Rod end seals to keep out dirt and debris
  • 4130 Chromoly Steel
  • Heat Treated
  • PTF Lined
  • Zinc Plated
  • 52100 Bearing Steel
  • Precision Ground
  • Hard Chrome Plated
  • Heim joint features a tough PTFE (Teflon) liner that is reinforced with Kevlar fibers for increased longevity over nylon lined heim joints.

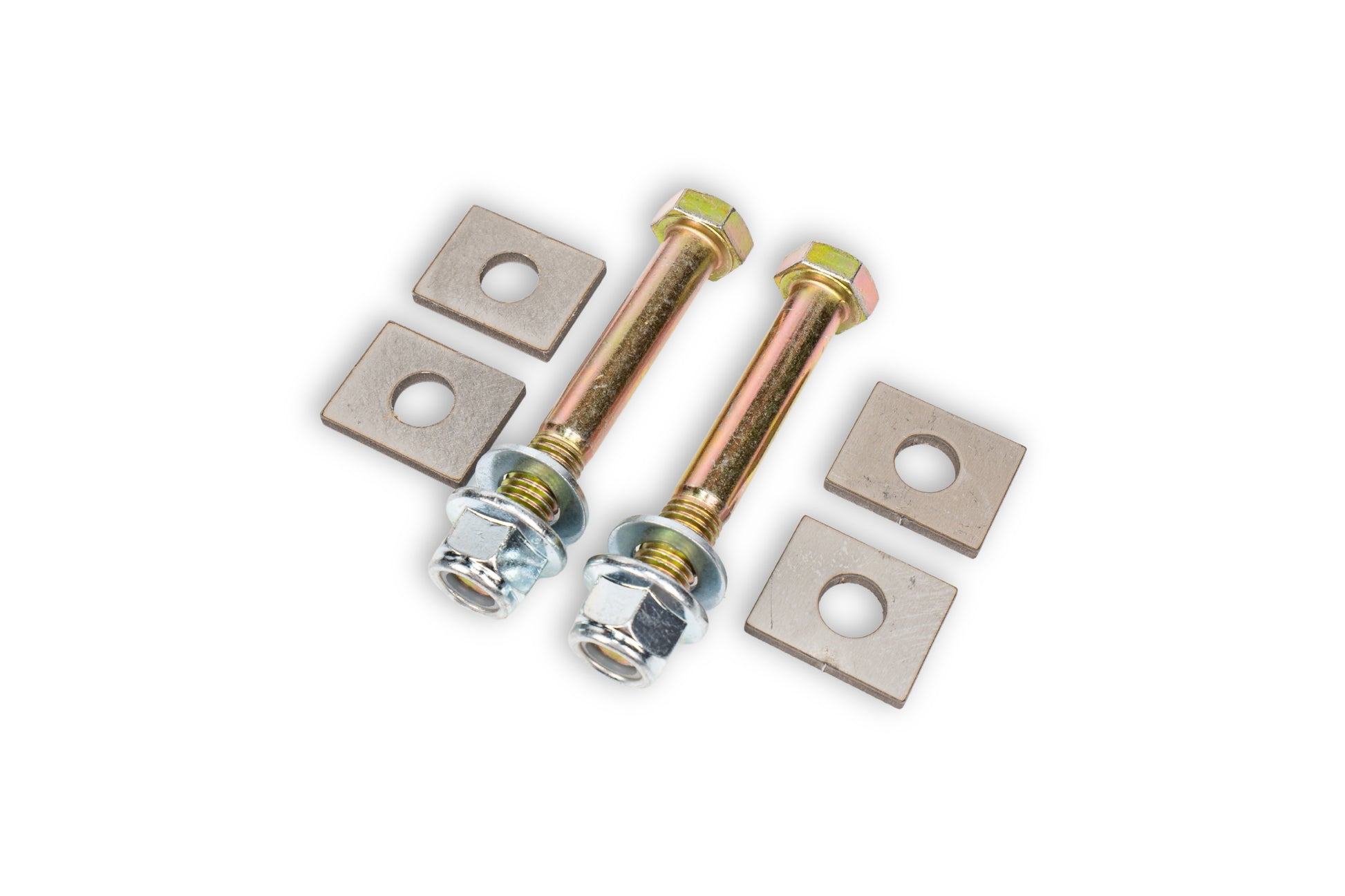

Alignment Lockout Plates:

Alignment Lockout Plates Installed:
