Gen 1: Cayenne/Touareg/Q7 - 3" Air Suspension Lift Kit

SKU: ewor90141

No reviews
Regular price $582.25 USD
Regular price $685.00 USD Sale price $582.25 USD
Sale Sold out
Shipping calculated at checkout.
Usually Ships in 3 to 5 business days
ADD Sway Bar Links?
Add Tubular Upper Control arms?

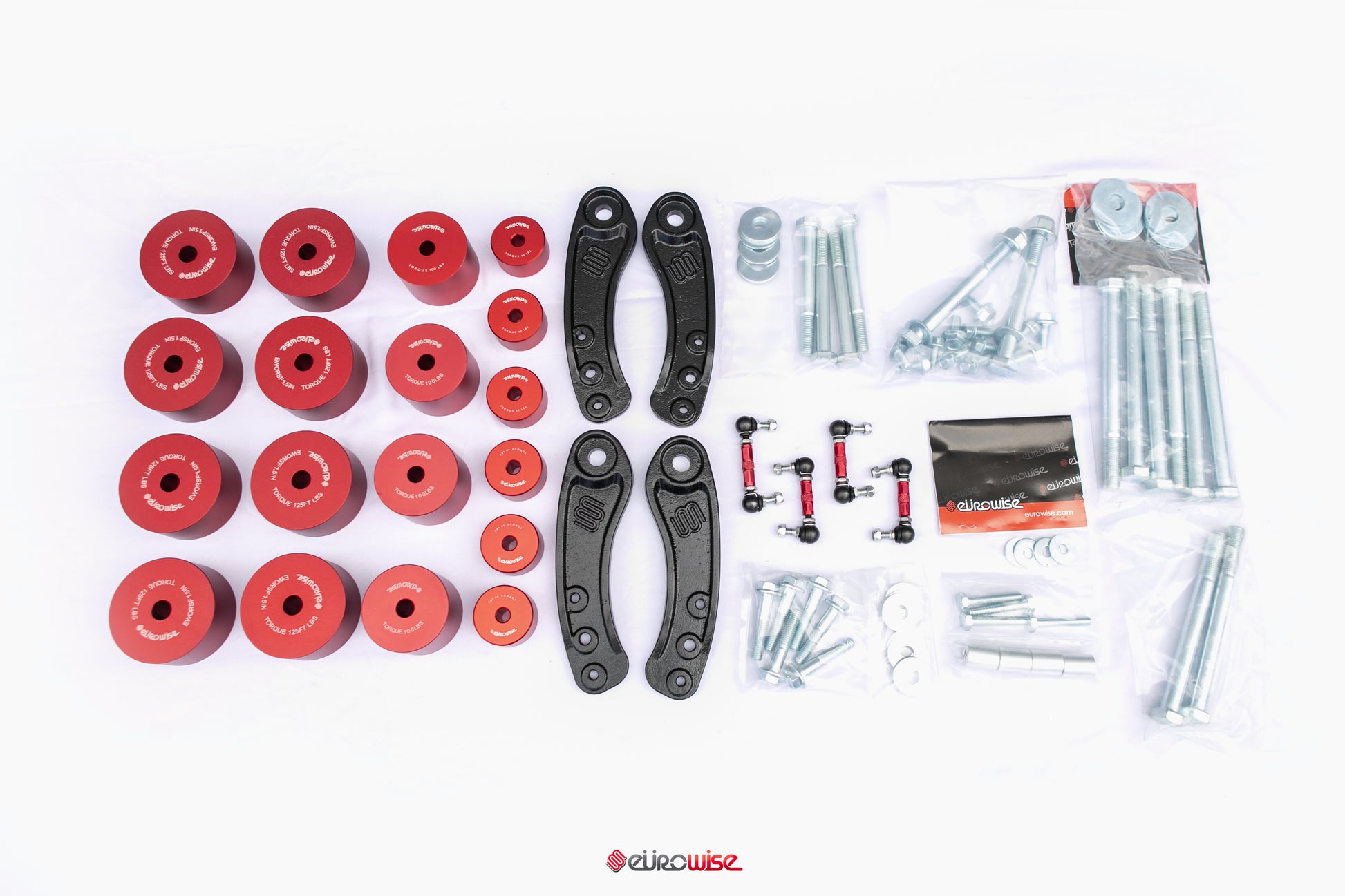

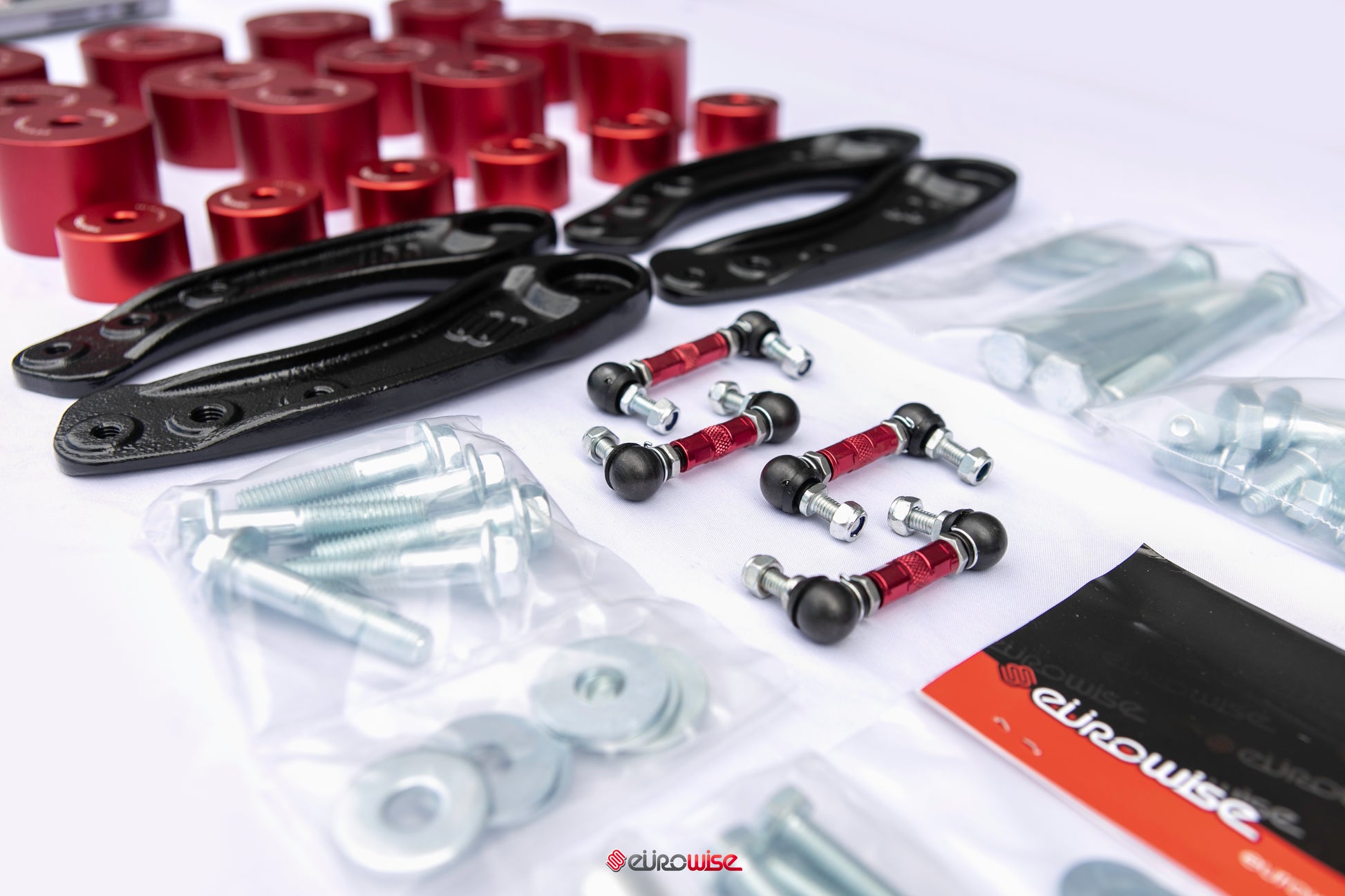

NEW Eurowise 3+ inch lift kit for the VW Touareg/Porsche Cayenne Gen 1 is a combination of our spacer lift and our 1" subframe drop.

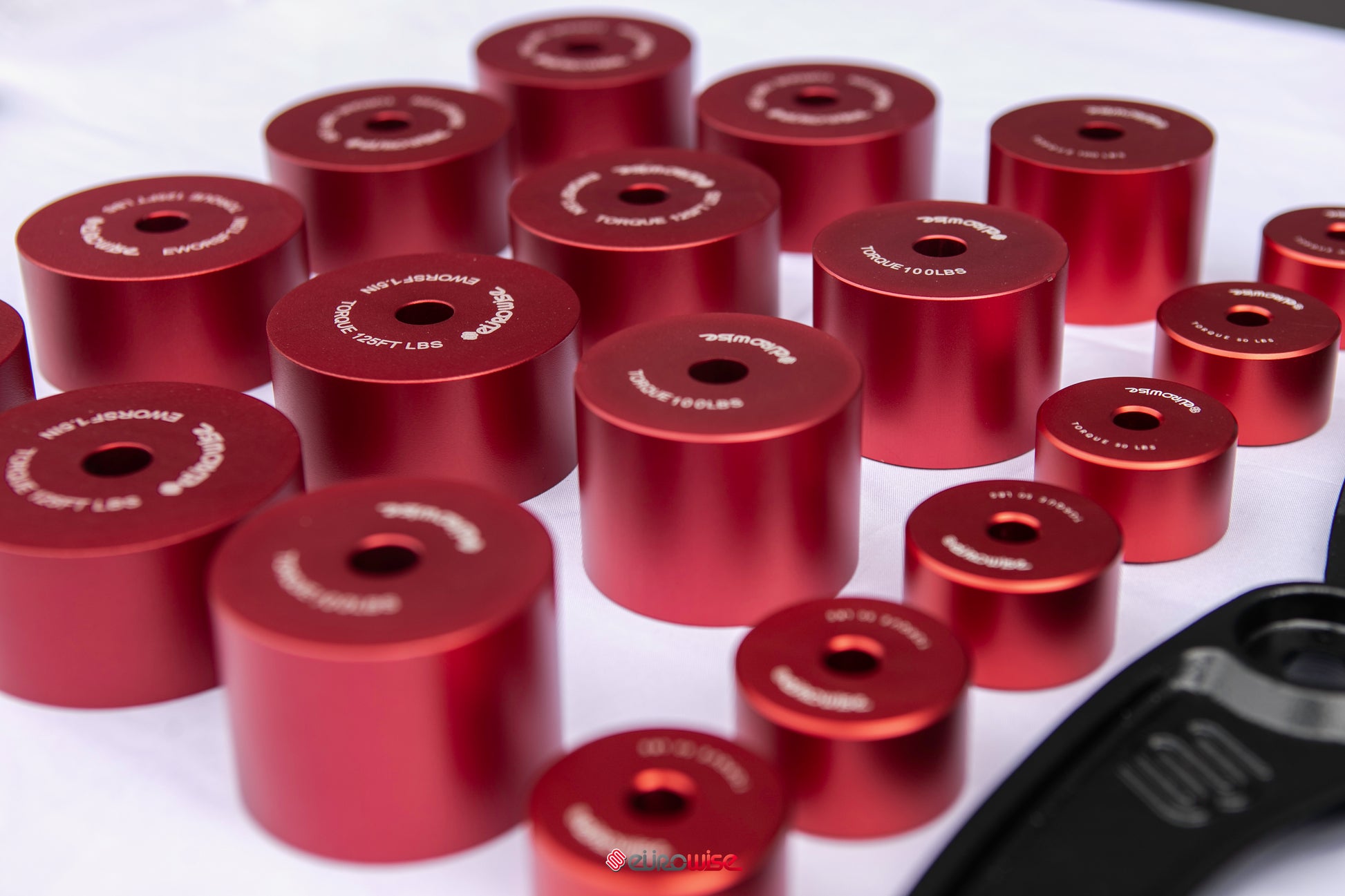

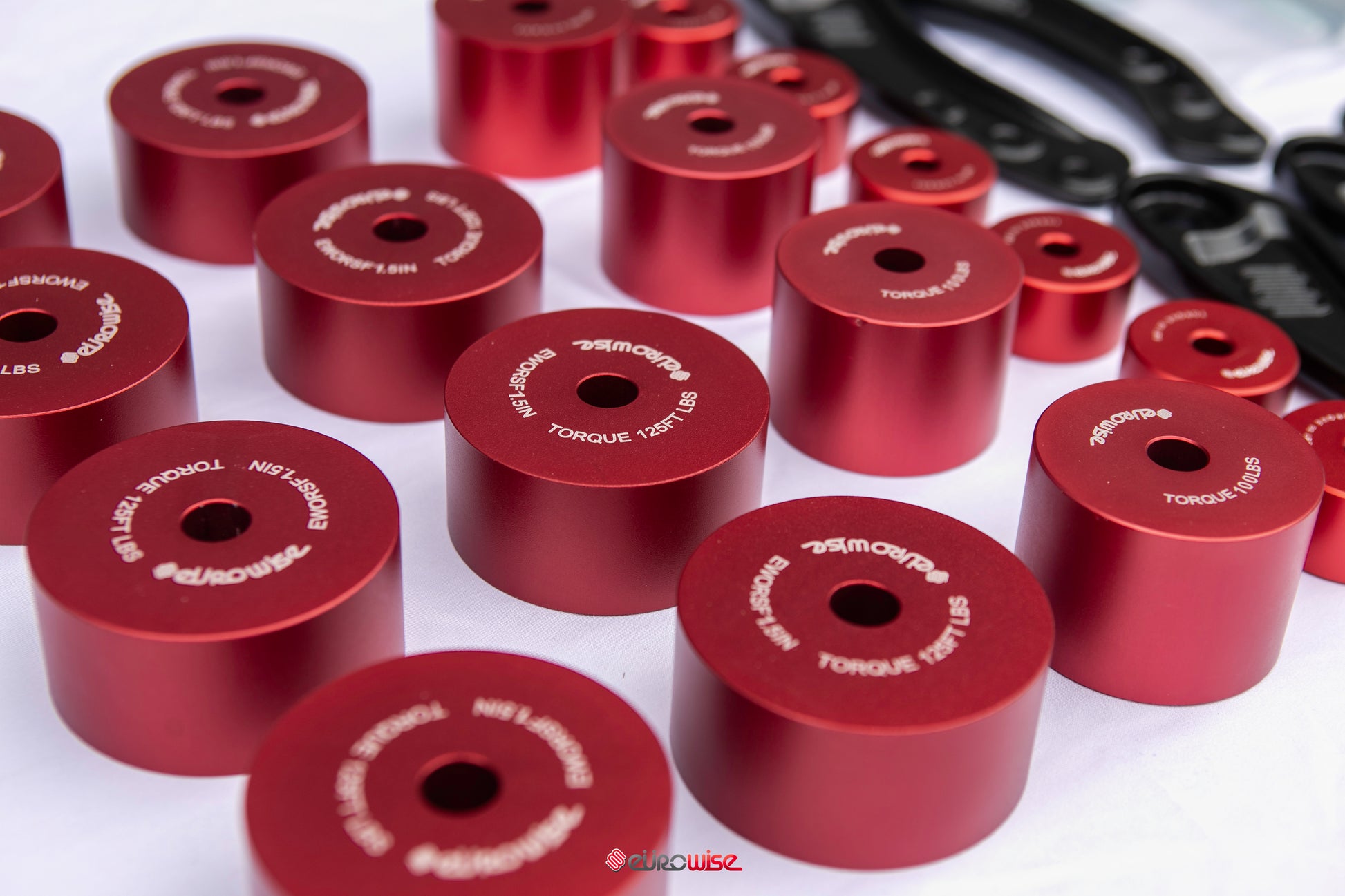

Machined from 6061 aluminum solid block, these lift kits will never wear out or fail. In addition we include 1" subframe drop kit with hardware to correct your axle geometry. when set on auto mode your vehicle will be roughly 3" taller over stock. In extra/off-road mode would be over 4 inches of additional lift!

This is a direct bolt on lift kit that installs over the top of the OEM Struts on (ONLY AIR SUSPENSIONS). Very straight forward installation procedures removal of front and rear strut assembly and bolt on installation along with dropping front and rear subframe.

NOTE: With this lift kit installed the highest lift setting on the air suspension controller will no longer lift it any higher. This kit will max out the suspension level sensors beyond their range.

if you drive your vehicle in terrain mode or the highest setting you can risk damaging the CV axle or CV boots please keep in mind driving in this exceeds CV axle limits and can cause issues to the CV boots and we will not be responsible. We recommend only driving in the middle setting “auto mode”

INSTALLATION GUIDE

Noise from rear suspension may be due to rear air strut mount bushing being worn. If you are experiencing noises from rear please contact us. we can supply shorter bushings to resolve this.

Professional installation recommended.

FITMENT:

2002-2010 VW Touareg
2002-2010 Porsche Cayenne
2007-2015 Audi Q7

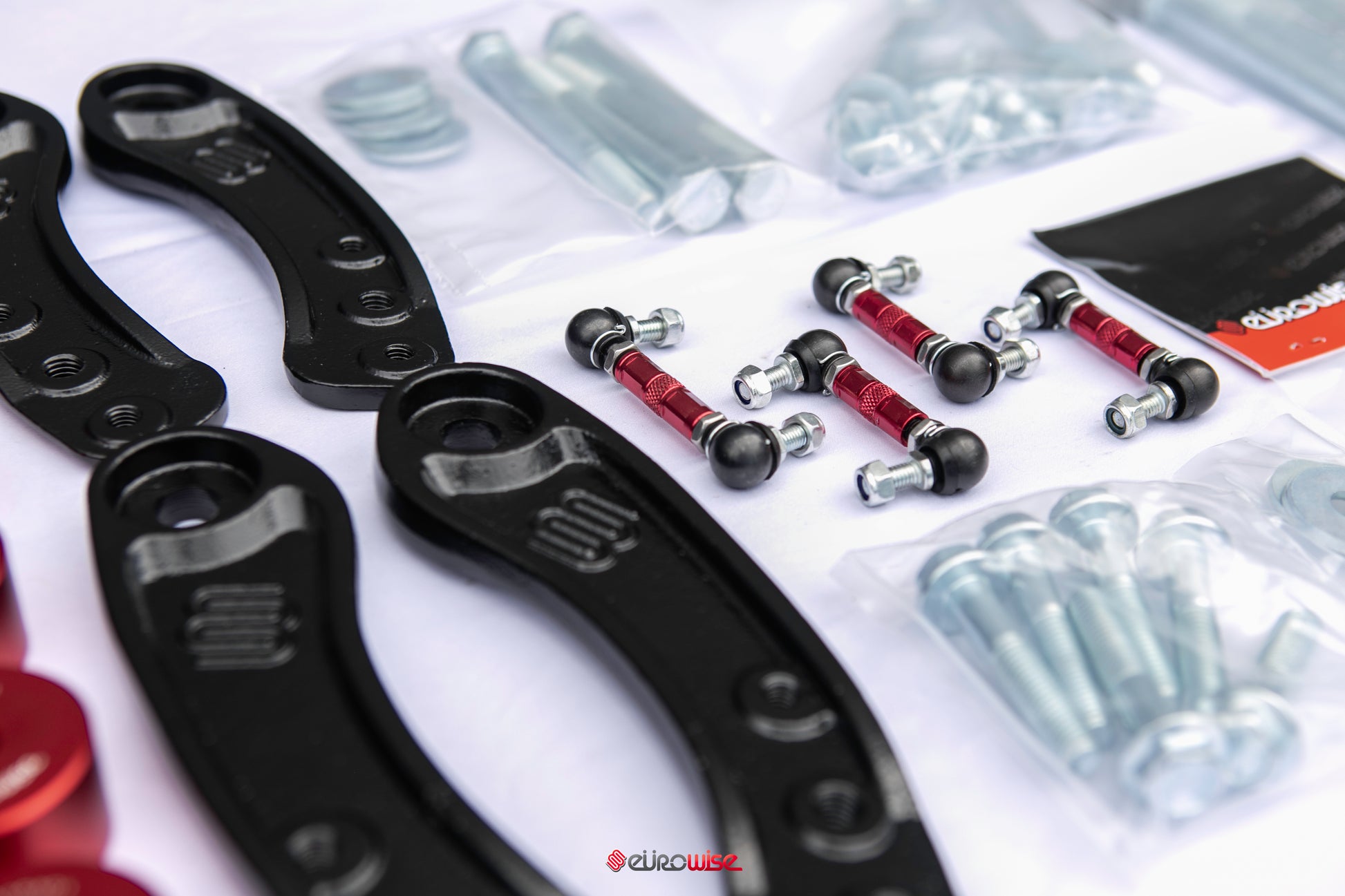

Add optional upper control arms to properly dial suspension alignment in! 3" of lift will result in about 1-1.5 degrees of positive camber after installing 3inch and more of lift. We designed these upper control arms proprietary to our 3 inch lift kits for steel spring and air ride chassis to dial in the alignment back to factory specs! Not only do they perform better than stock, they look better too.
