On-Board 12 Volt 12V High Output Twin Air Compressor
Compressed air source to suit the high volume airflow needs of most air powered tools, and also to suit the actuation and control needs of the onboard air when airing tires up and down offroad and onroad in emergecy situations
Rapid inflation of small, medium and large tires.
Air tools rated up to 85LPM [3CFM] @ 6Bar [90PSI] continuous supply. Sold Separately
Air tools rated higher than 85LPM [3CFM] @ 6Bar [90PSI] using an air tank suitable to the run time requirements. Sold Separately

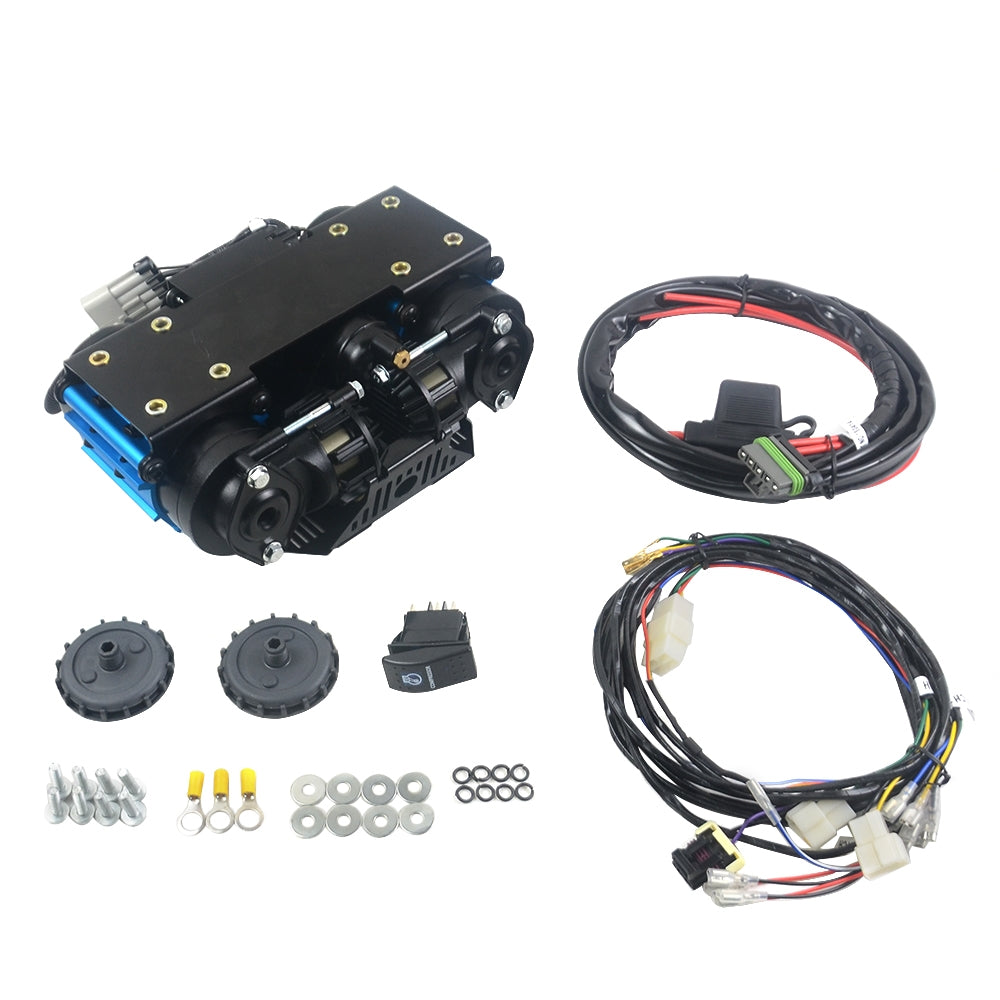

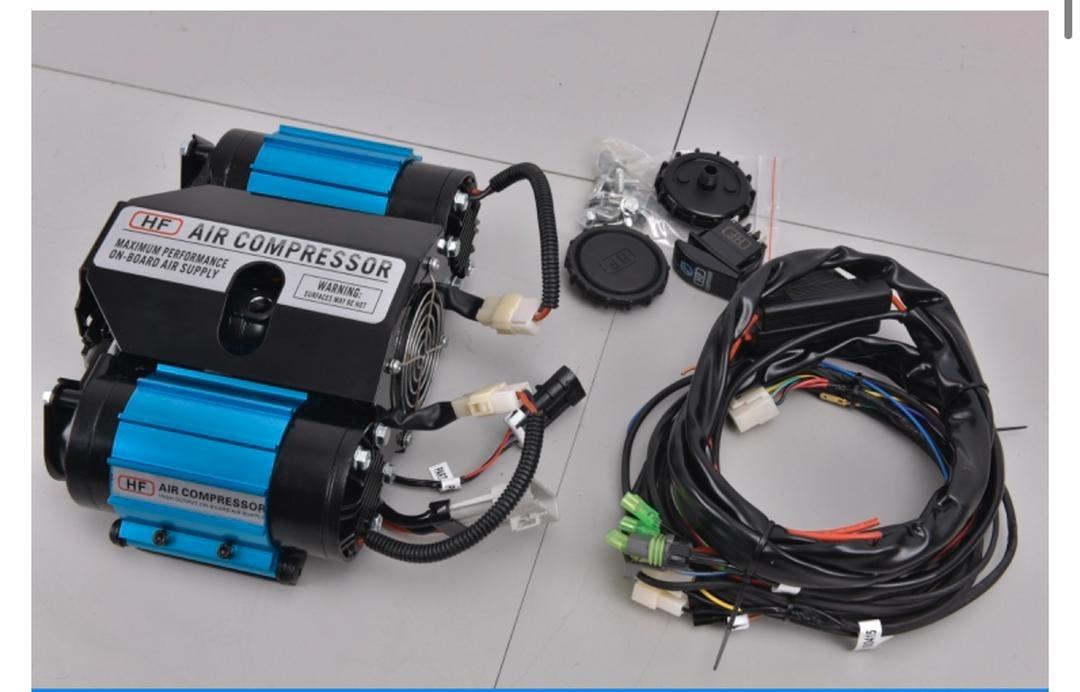

Fully assembled and tested air compressor (12V or 24V).
Complete wiring loom w/ Air Locker solenoid plug-in terminals.
2 x relocatable splash resistant air filters with washable high-flow sintered bronze filter cartridges.
Mounting bolts and washers.
Constructed primarily of light weight, high strength, engineering grade materials, including military and aerospace standard components.
Pressure switch controlled air manifold system regulates pressure between 9.3Bar [135PSI] and 10.3Bar [150PSI]
Highest air flow rate of any 12V compressor of its size on the market at 174LPM [6.16CFM].
High efficiency design consumes only 56 Amps at maximum air flow.
Built with sealed components for moisture and dust resistance.
Hard-anodized cylinder bores and PTFE (Teflon) impregnated carbon fiber piston seals for reduced friction and maximum trouble free life.
Ducted IP55 sealed brushless DC cooling fan and anodized motor mounting brackets effectively dissipate heat from the motors, heads and electronics allowing for a 100% duty cycle (under room temperature conditions).
Anti-vibration / sound deadening is integrated into the mount.
Relocatable splash resistant air filter assemblies for cleaner, cooler air supply and versatile waterproof air intake positioning.
High density and high flow washable sintered bronze air filter elements.
Full wiring loom included for simplified installation
Equipped with dual heavy duty Maxi-Fuses for professional in-line circuit protection and true circuit redundancy in case of a fault.
Motors are water sealed, 100% ball bearing equipped (i.e., no bushings used), and feature a unique linear brush pre-load system for extra long life, low heat and quiet operation throughout the life of the unit.
Motors are internally thermal protected against extreme temperature damage.
Compressor pistons are equipped with a heavy duty European made cylindrical roller bearing.
