Cayenne/Touareg Intercooler Relocation Brackets (2004-2010)

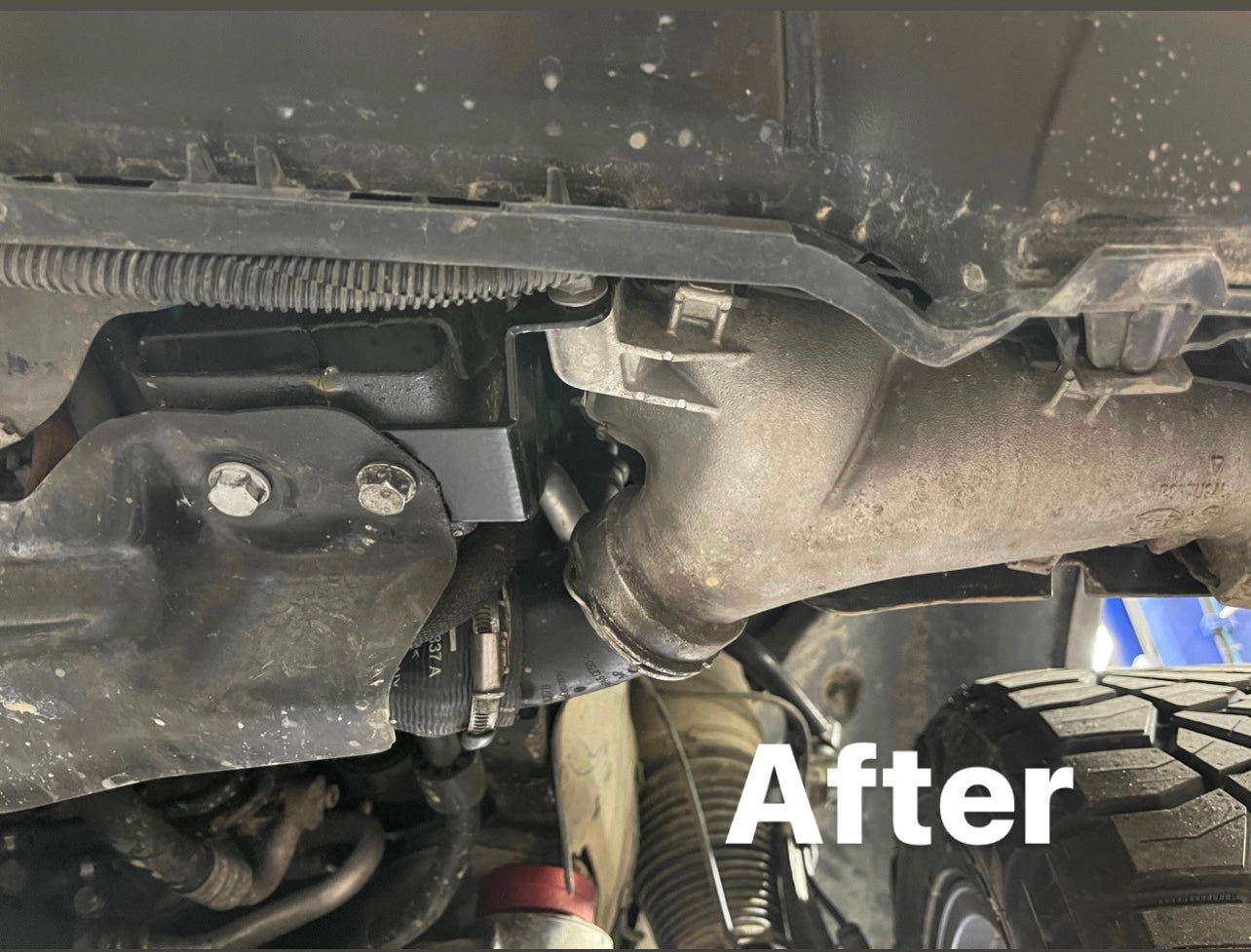

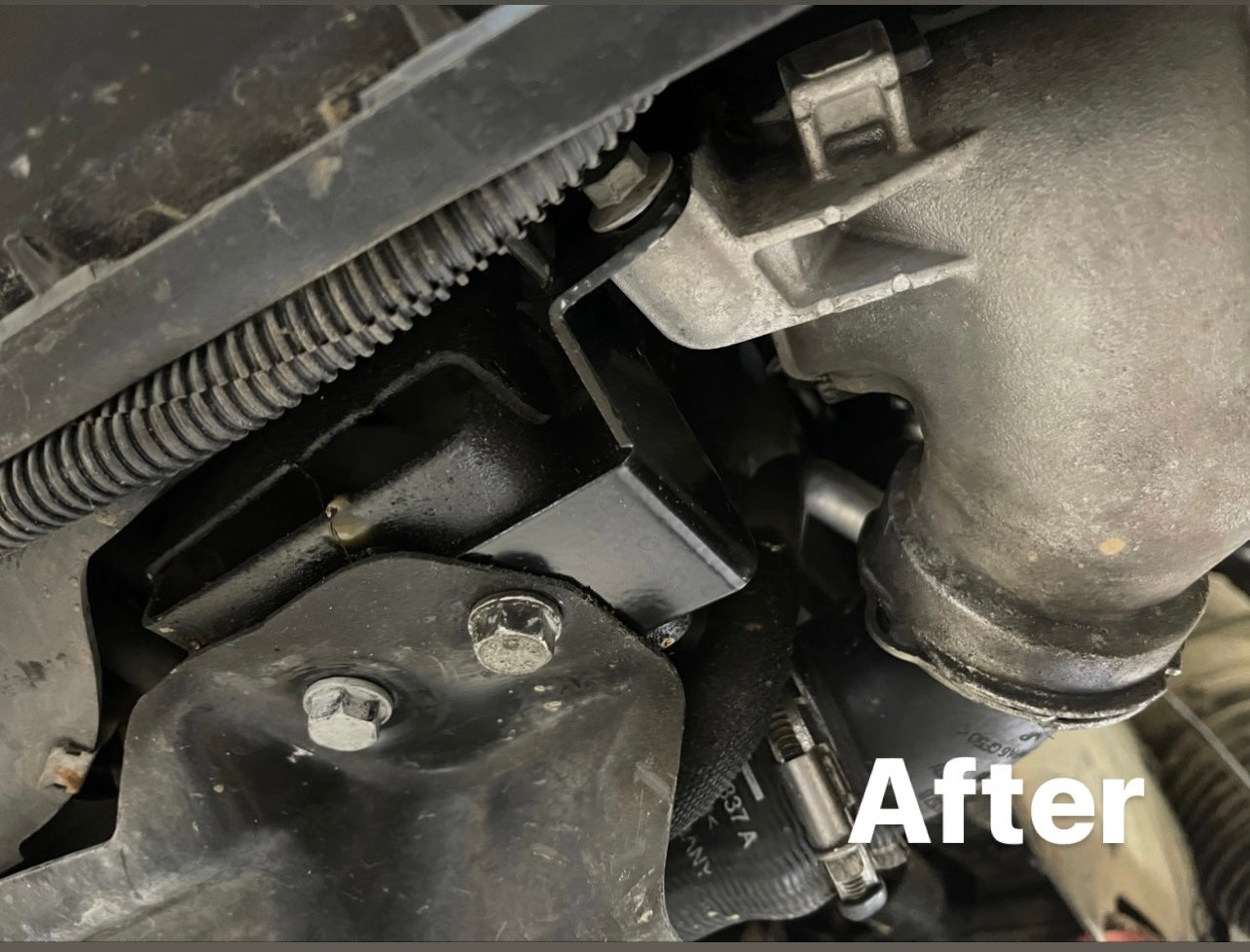

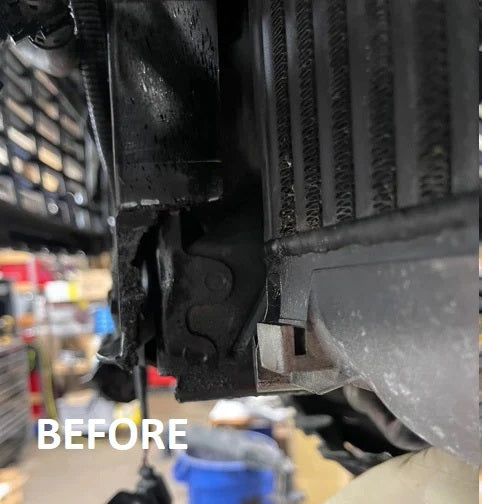

Guys with turbo motors know the aggravation of oversized tires rubbing the intercooler core. Avoid this issue with our new intercooler brackets. Moves the lower part of your intercooler 1 inch forward. Built from 1/8 inch steel then powder coated black for long lasting quality.

We now offer two versions:

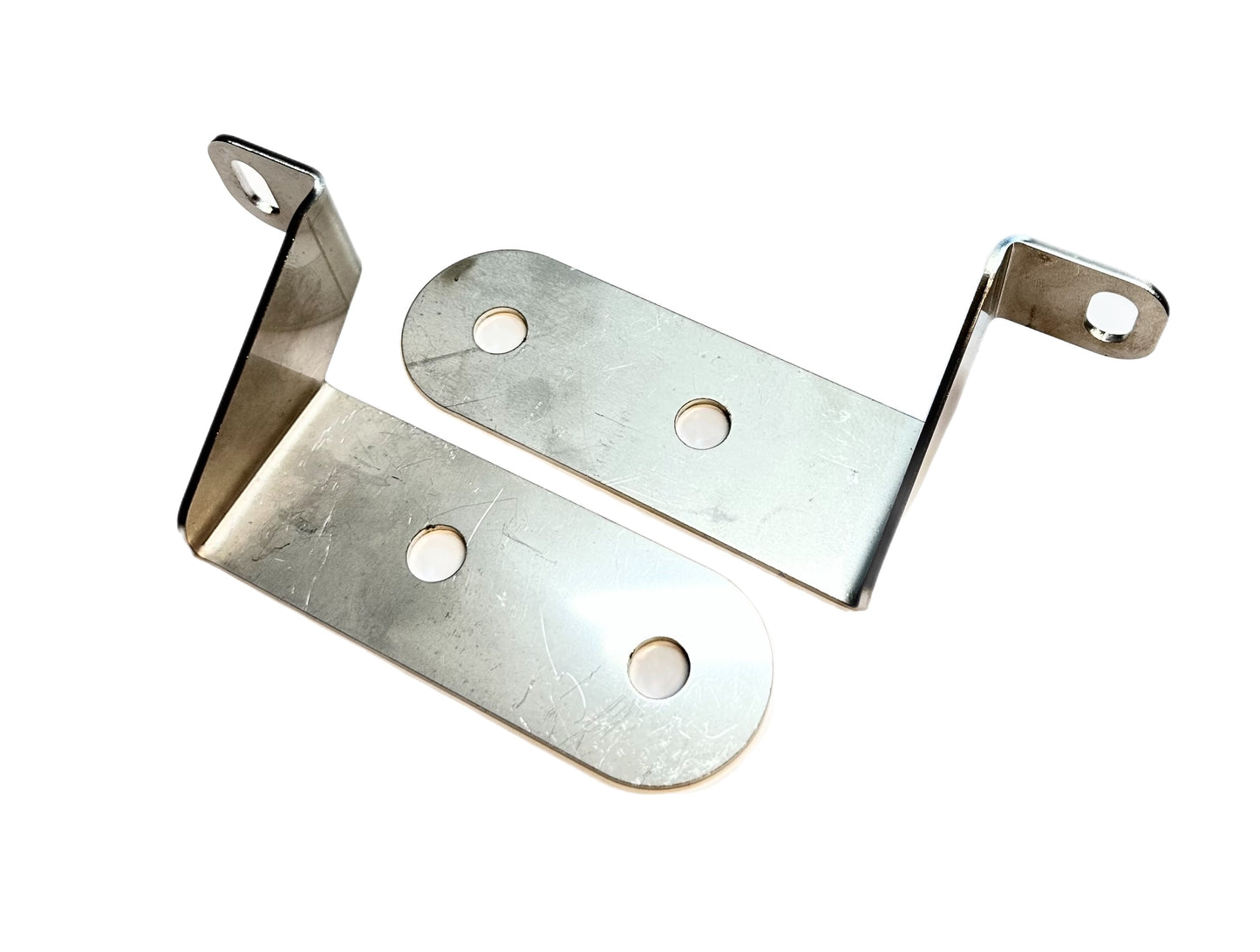

Standard up to 1 inch clearance

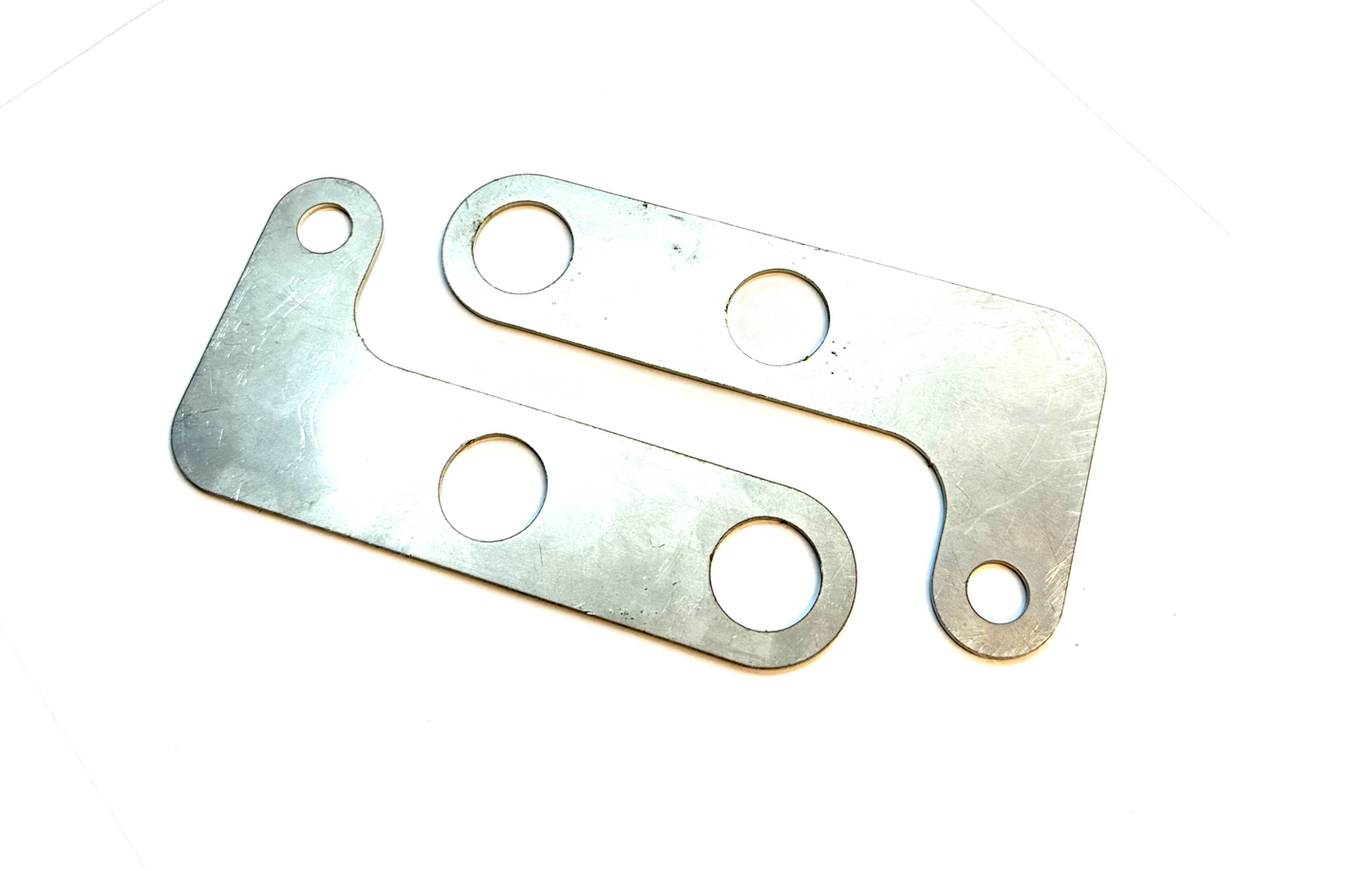

DEEP up to 1.75 inches clearance

STANDARD BRACKET FITMENT:

Cayenne Turbo 2004-2010
Touareg TDI ( 2008-2010 )

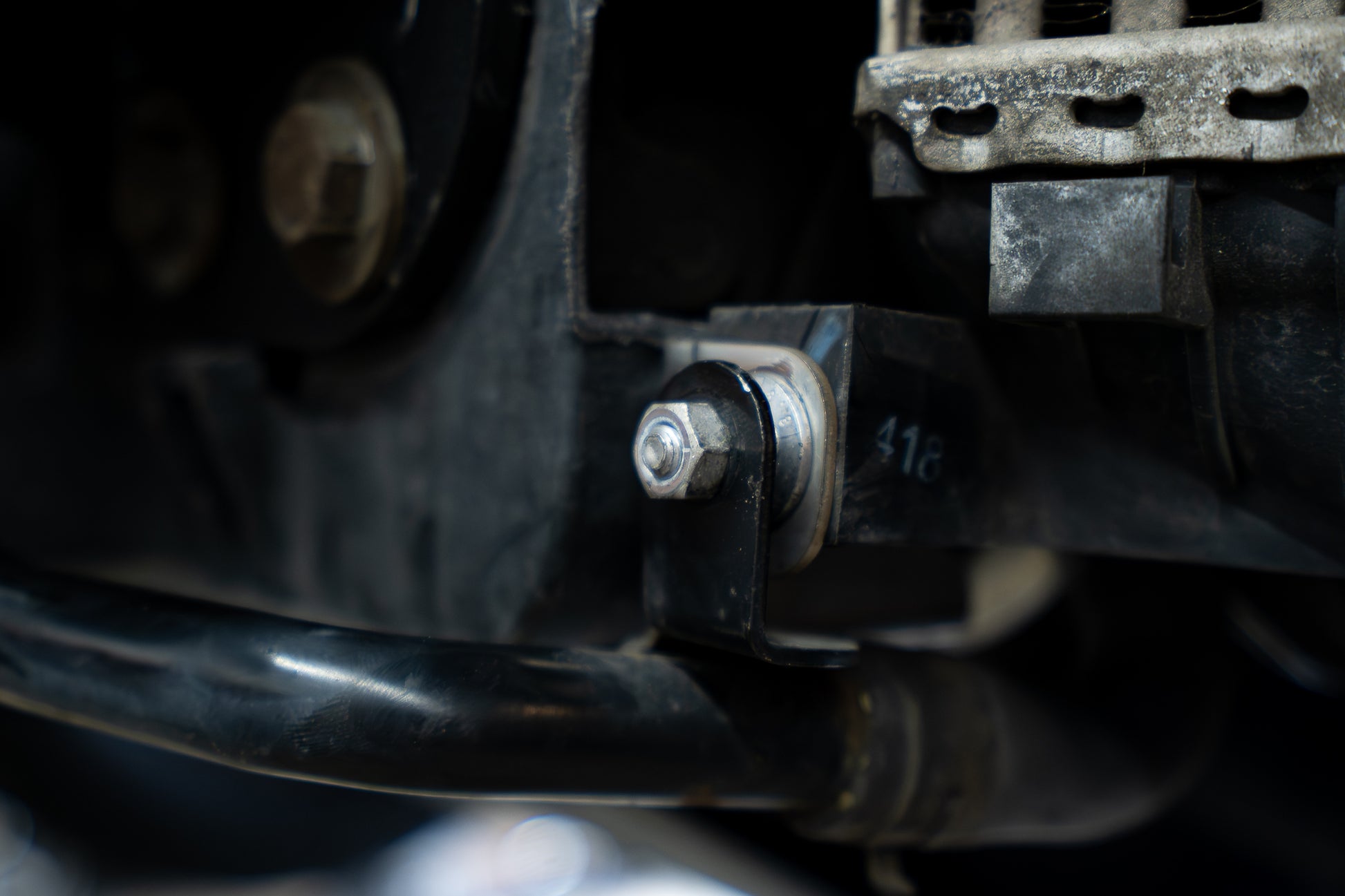

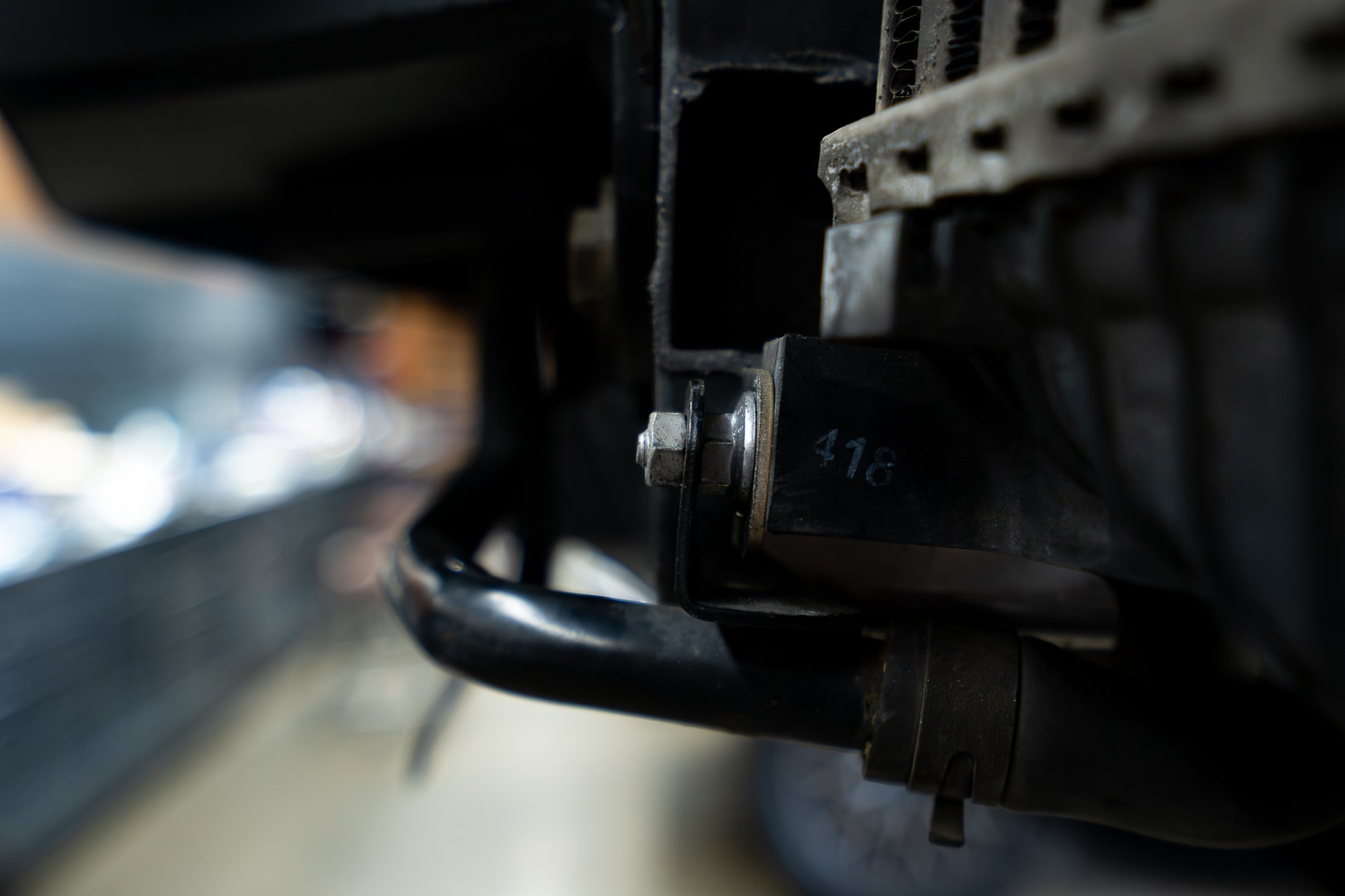

Audi Q7 2007- 2015 Turbo models only )

DEEP BRACKET WILL NOT WORK ON THE BELOW MODELS, please choose standard intercooler brackets.

Touareg TDI (2008-2010)
Cayenne Turbo 2004-2007 (plastic end tanks)
Audi Q7 2007- 2015 Turbo models only )

NOTE: TOUAREG with OEM fog lights will need to trim the fog light bracket and the intercooler shroud to clear.

INSTALLATION GUIDE
