Subframe Drop Kit, the largest we offer, designed for use with lift kits of 4” or more.
When lifting your vehicle, the angle and length between your wheel hubs and transmission increases. Our Subframe Drop Kits are designed to correct this change in axle geometry by lowering the subframe.
Our 2” Subframe Drop Kit lowers both front and rear subframes, eliminating lift restrictions due to axle geometry issues, and includes a steering shaft extension. This level of Subframe Drop Kit will bring the axle angle to nearly 5 degrees on 4” lifts.
NOTE: Eurowise Gas Tank Skid and Transfer Case Skids will not fit with a 2” subframe drop. If you currently have gas tank skids, you can cut the tabs off of each side and weld them on to the opposite sides to make them work.
Exhaust modifications are required. Dropping the rear subframe 2” will cause it to contact your exhaust.
A 2” Subframe Drop will decrease overall lift height. For example, a 2.5” lift kit with a 1” subframe drop will result in 2” of actual lift. A 3” lift kit with a 1” subframe drop will result in 2.5” of actual lift.
Fitment:
- 2002-2010, 2011-2017 VW Touareg
- 2002-2010, 2011-2017 Porsche Cayenne
- 2006-2015 Audi Q7

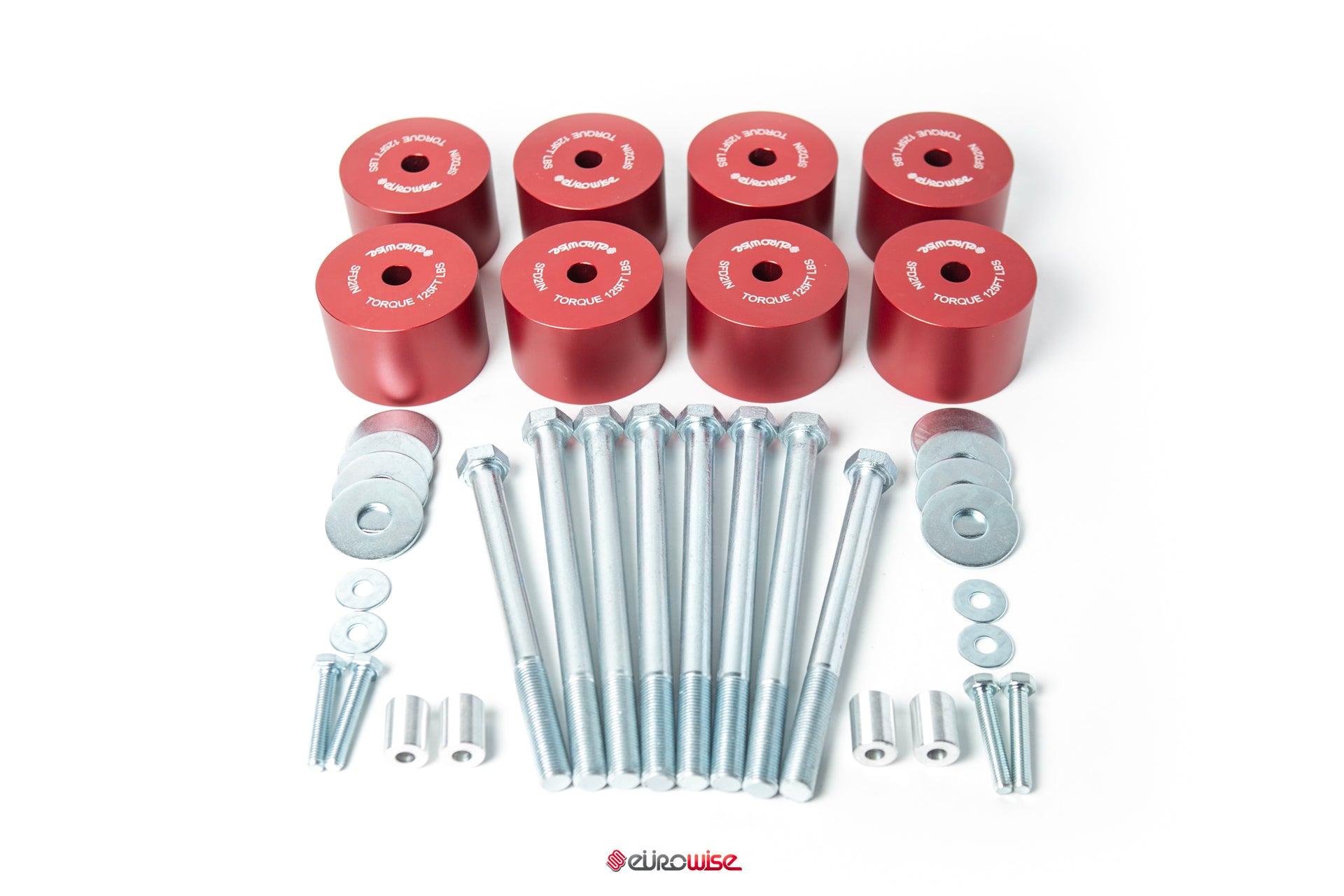

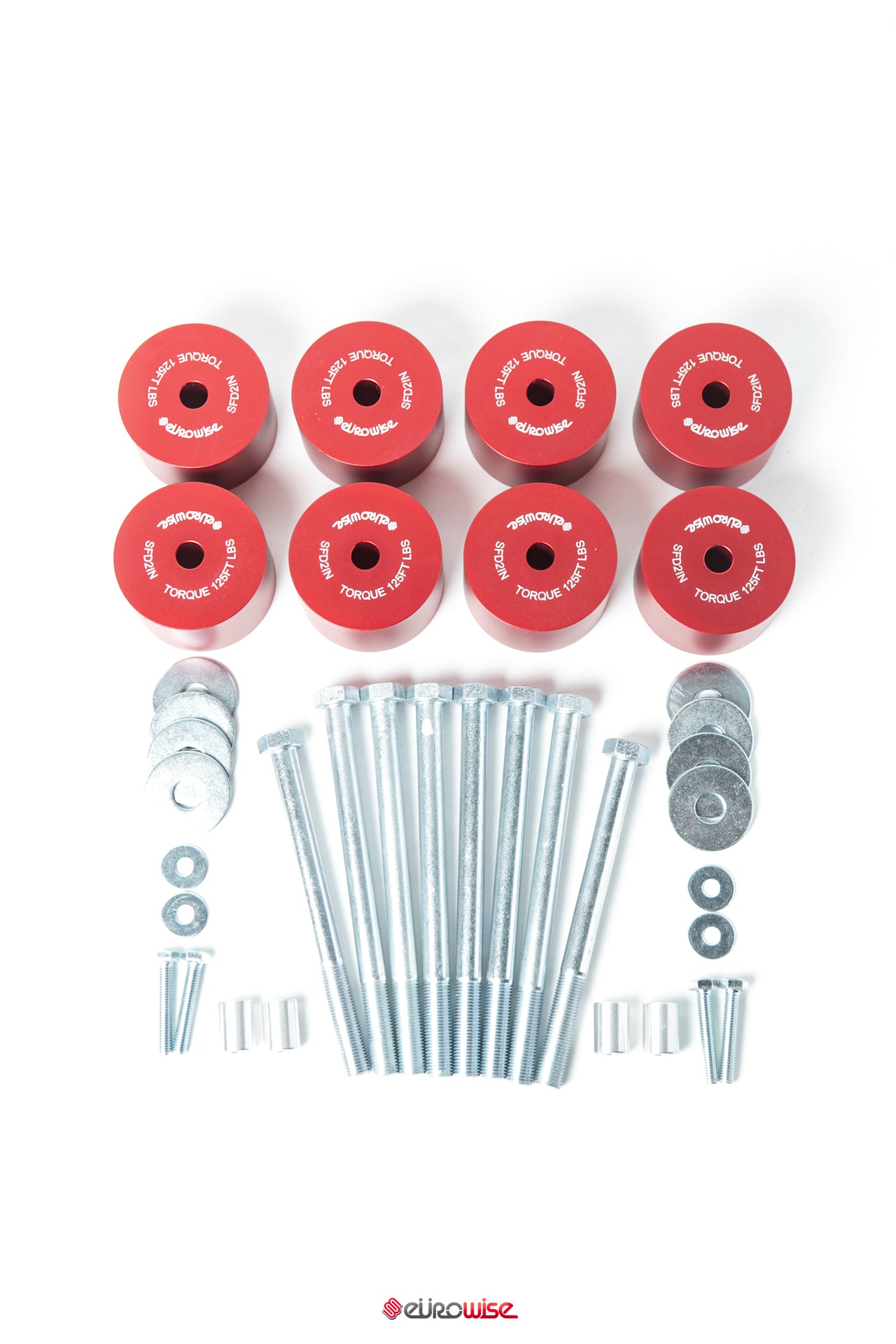

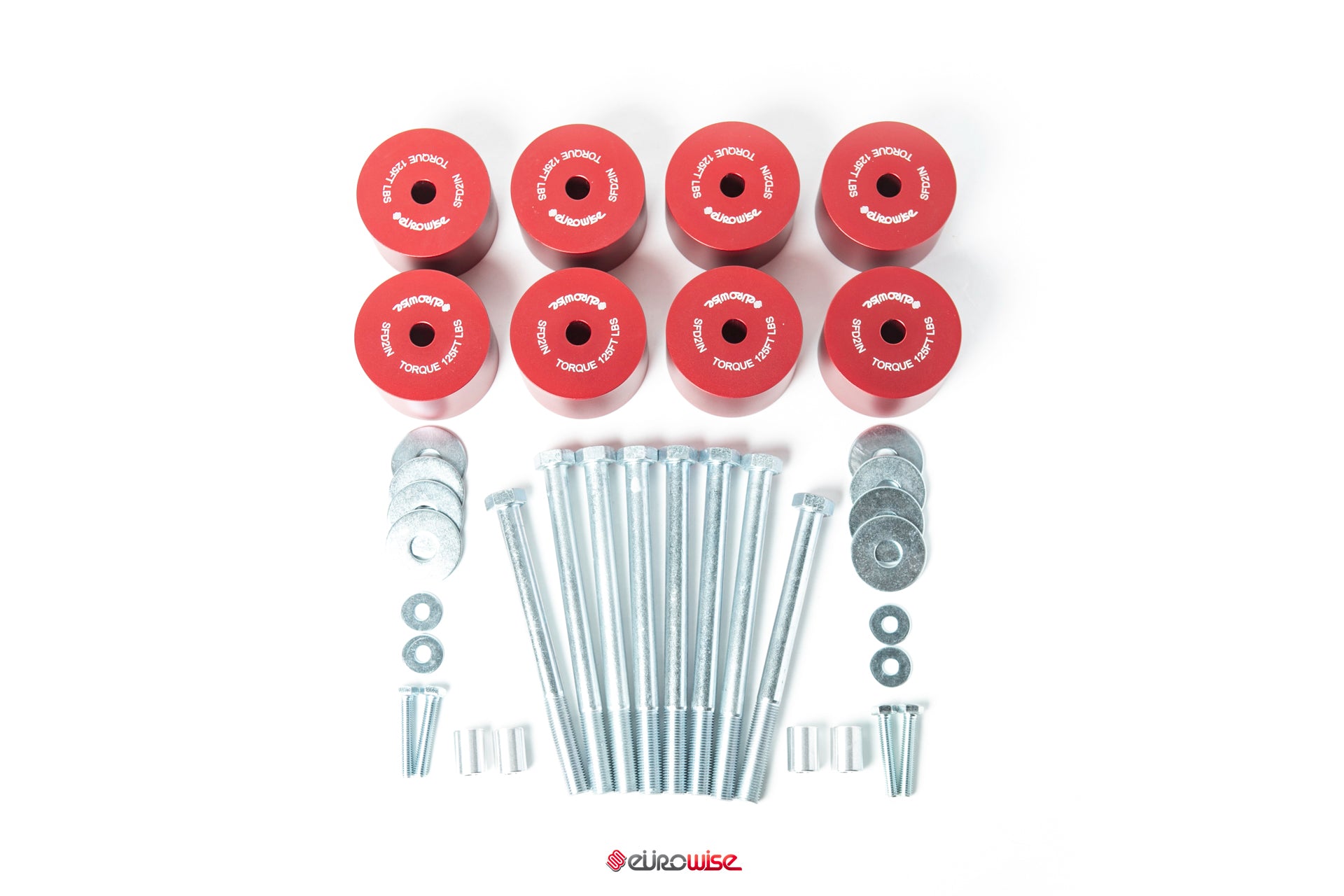

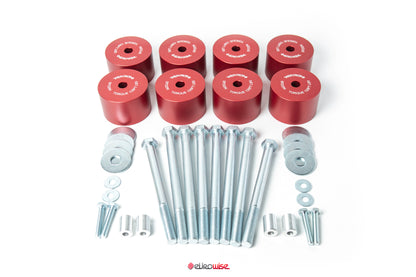

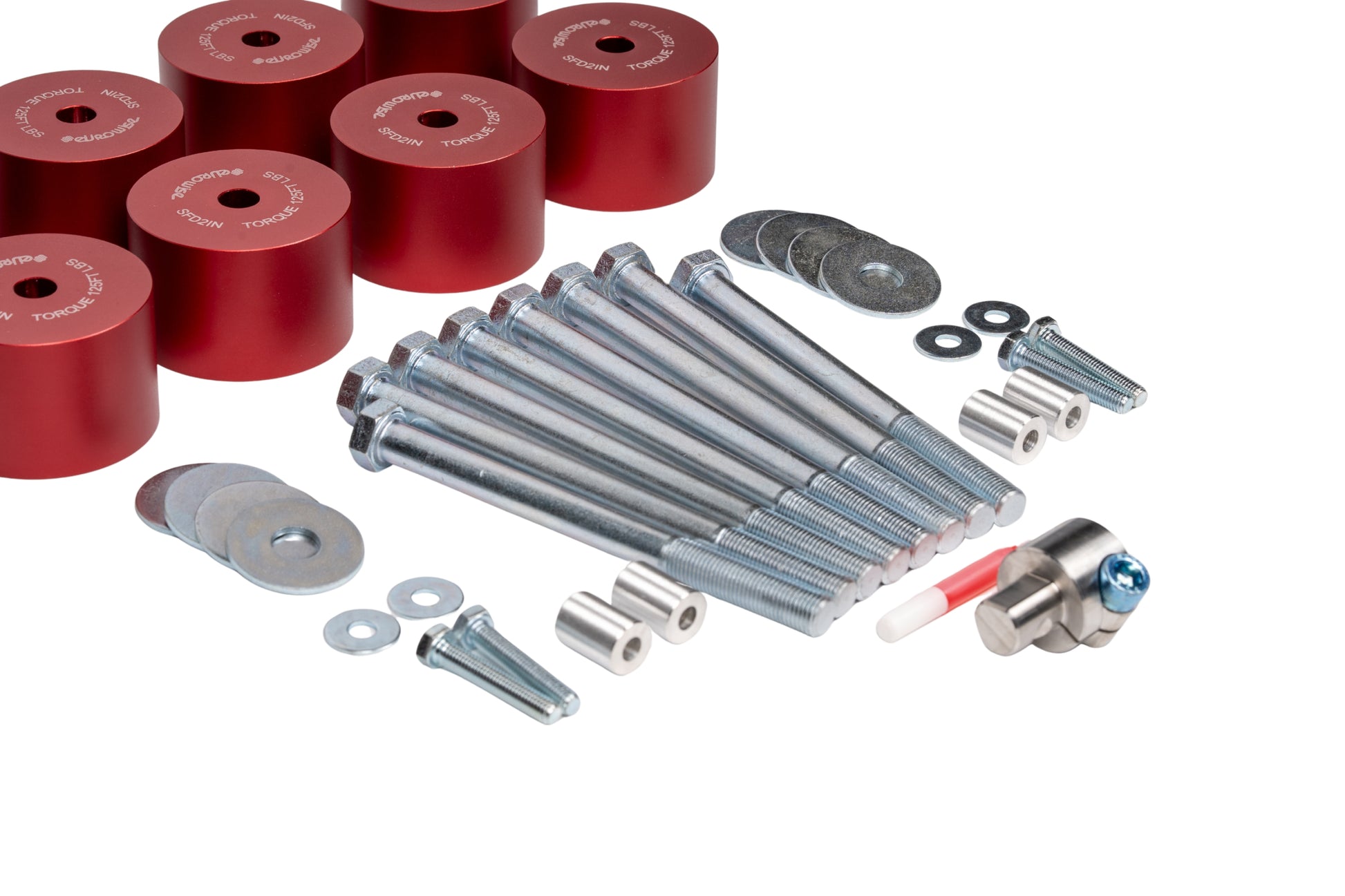

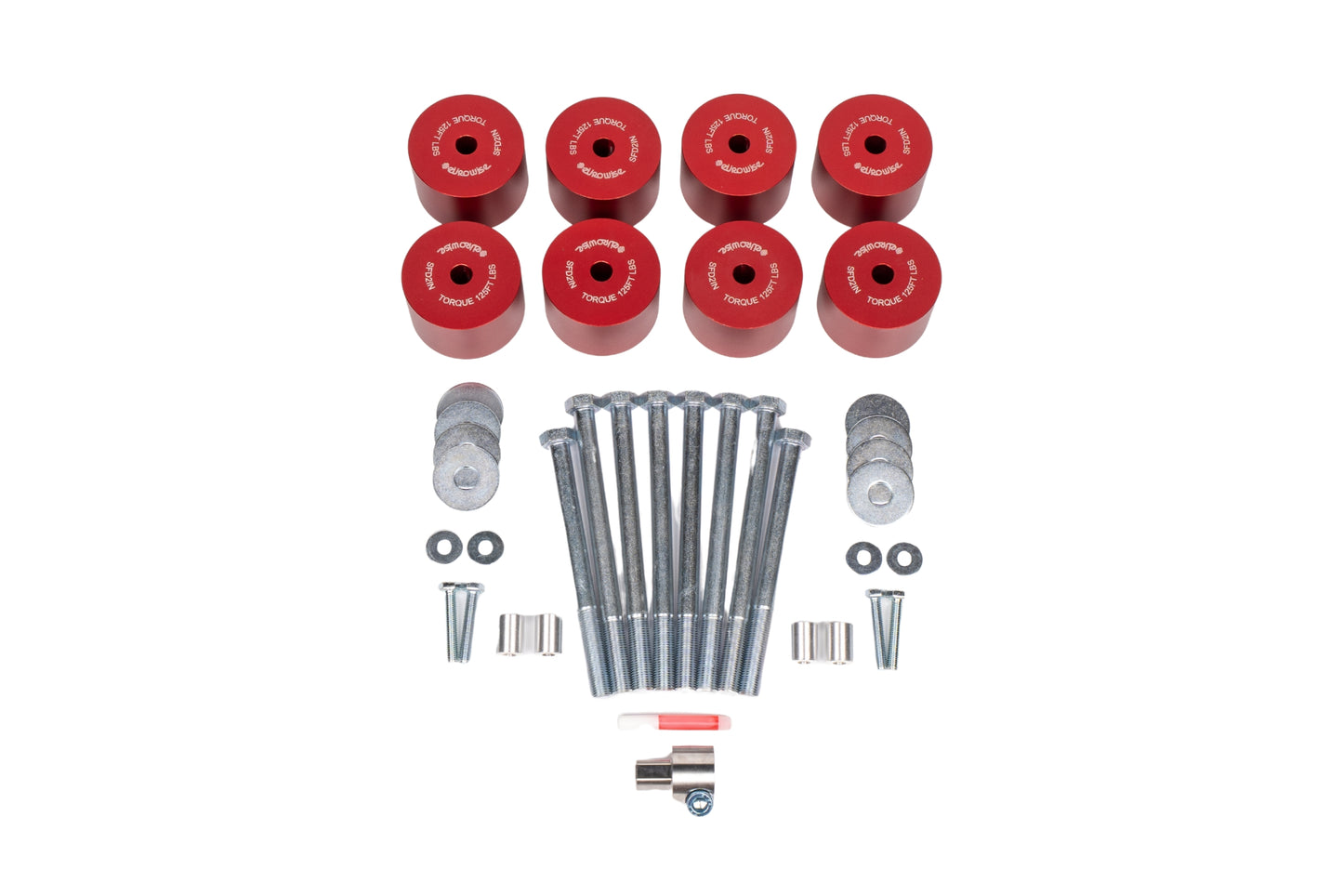

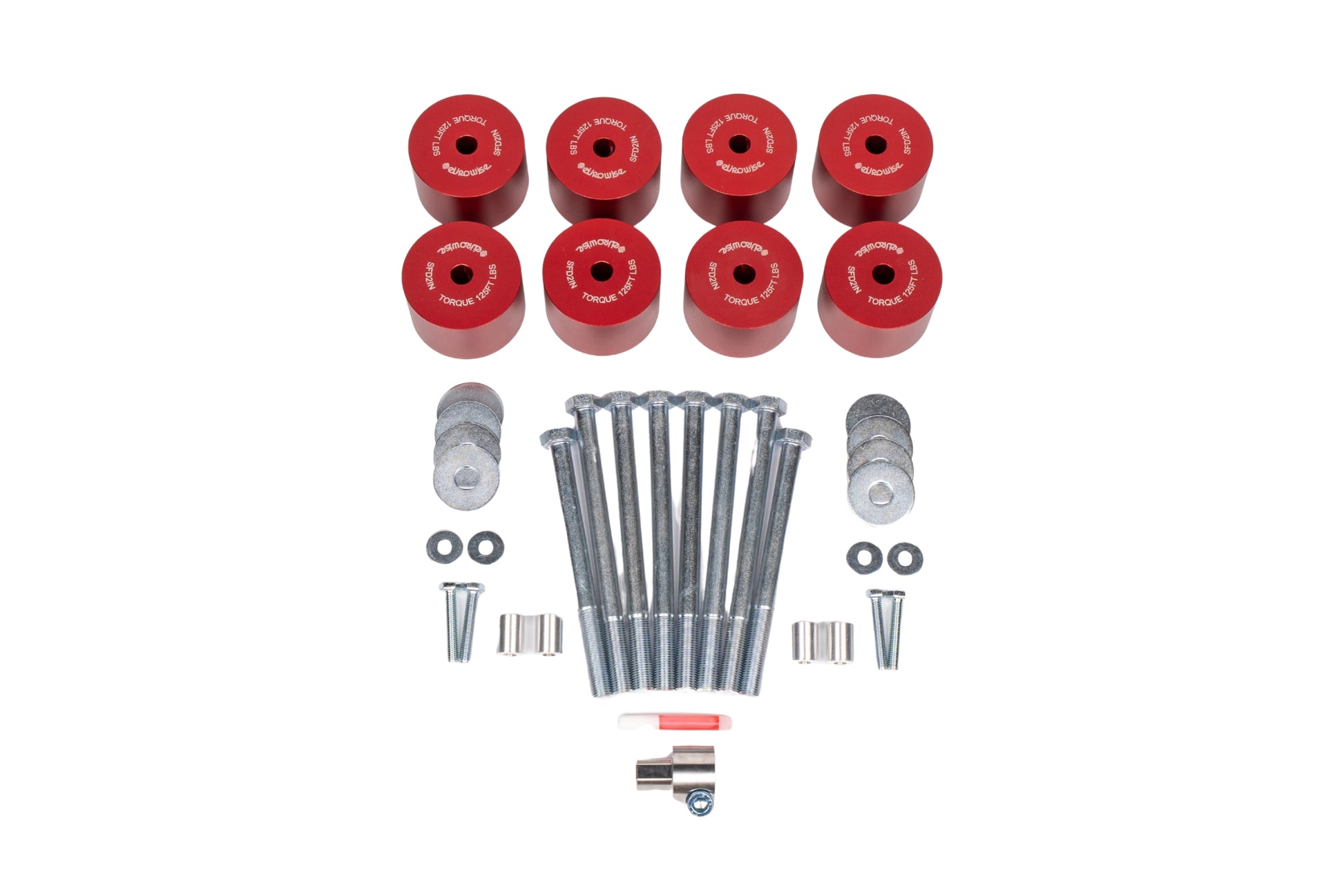

Product Includes:

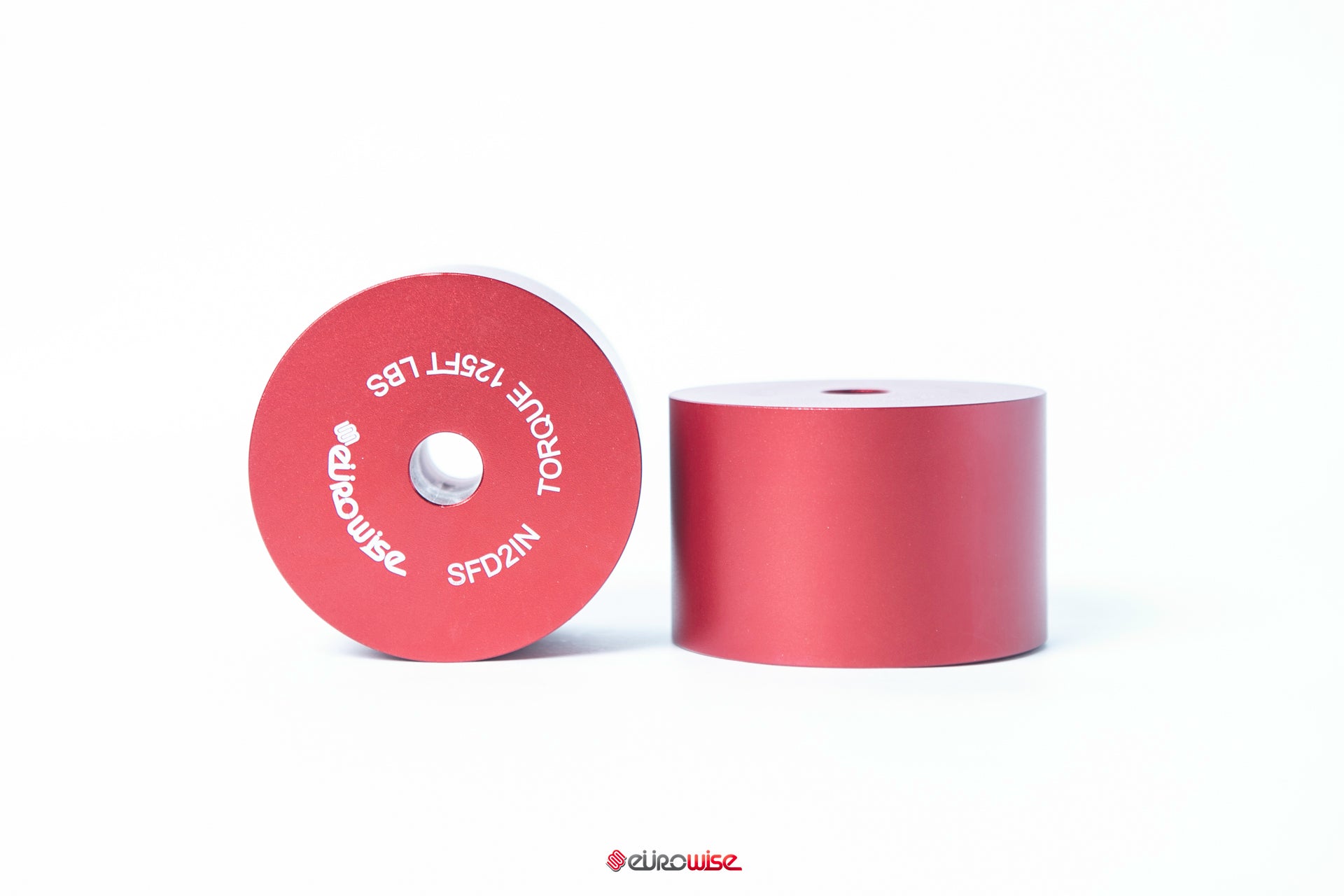

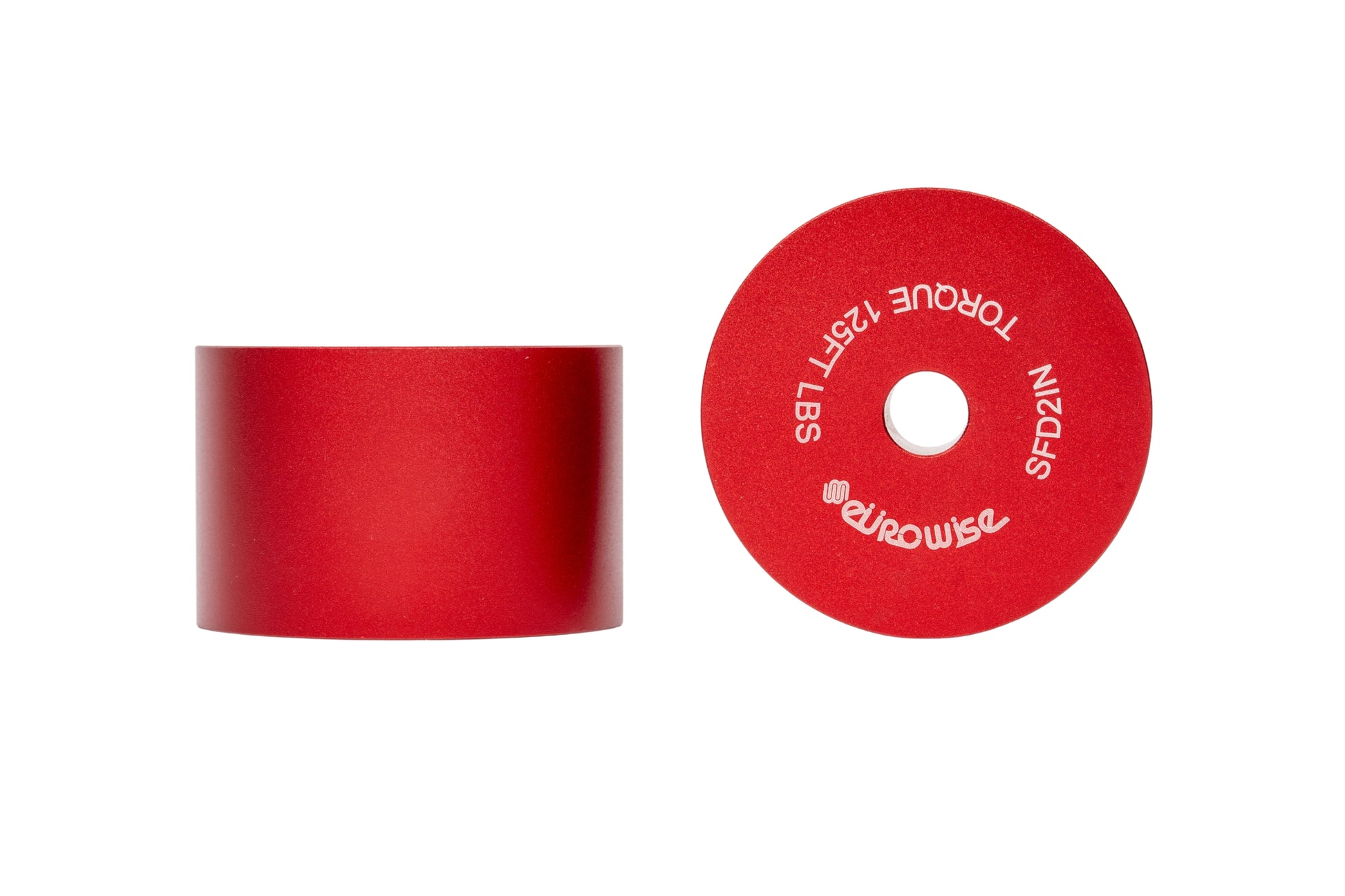

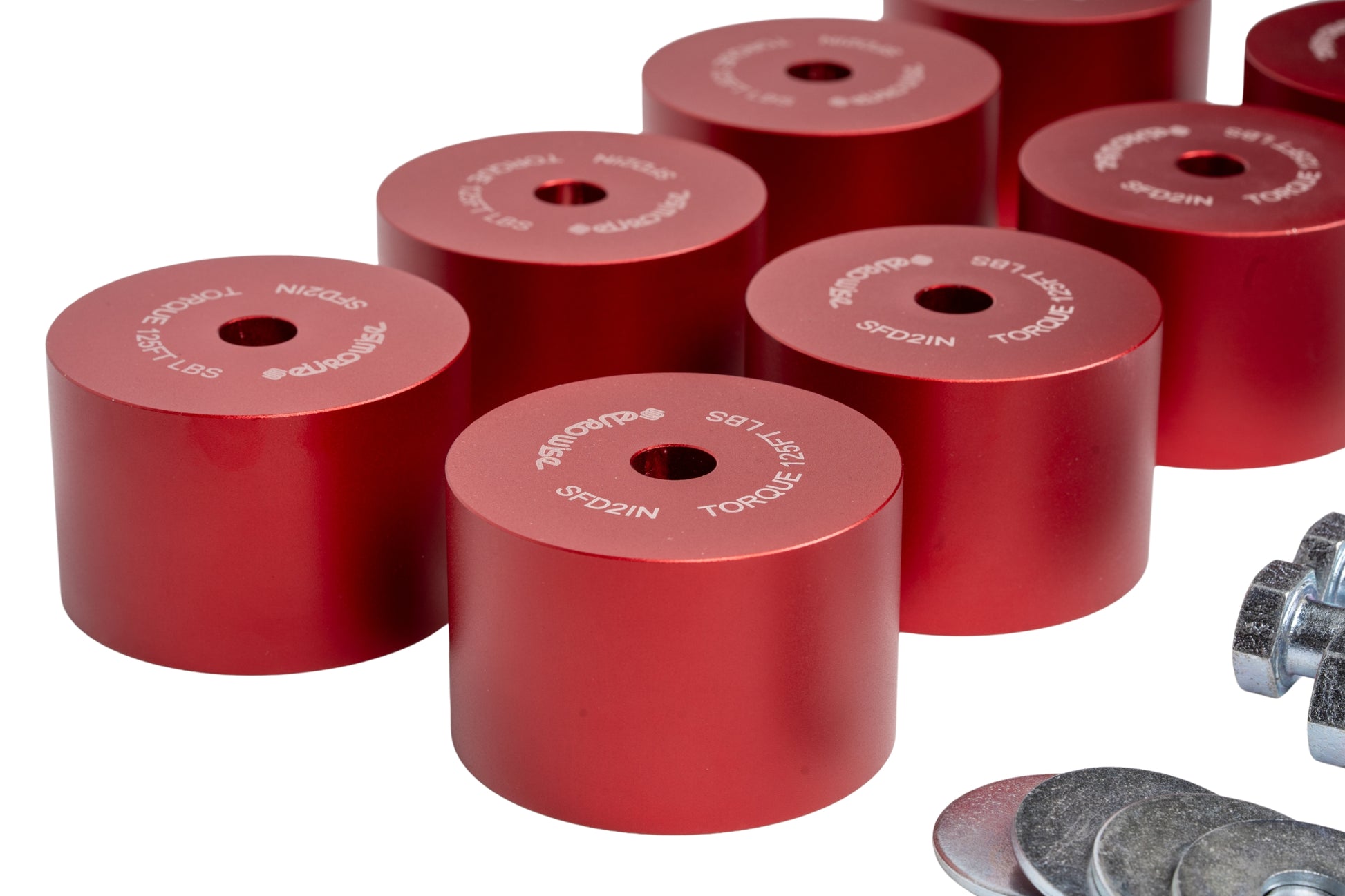

- (4) 2” Front Subframe Spacers w/ hardware
- (4) 2” Rear Subframe Spacers w/ hardware

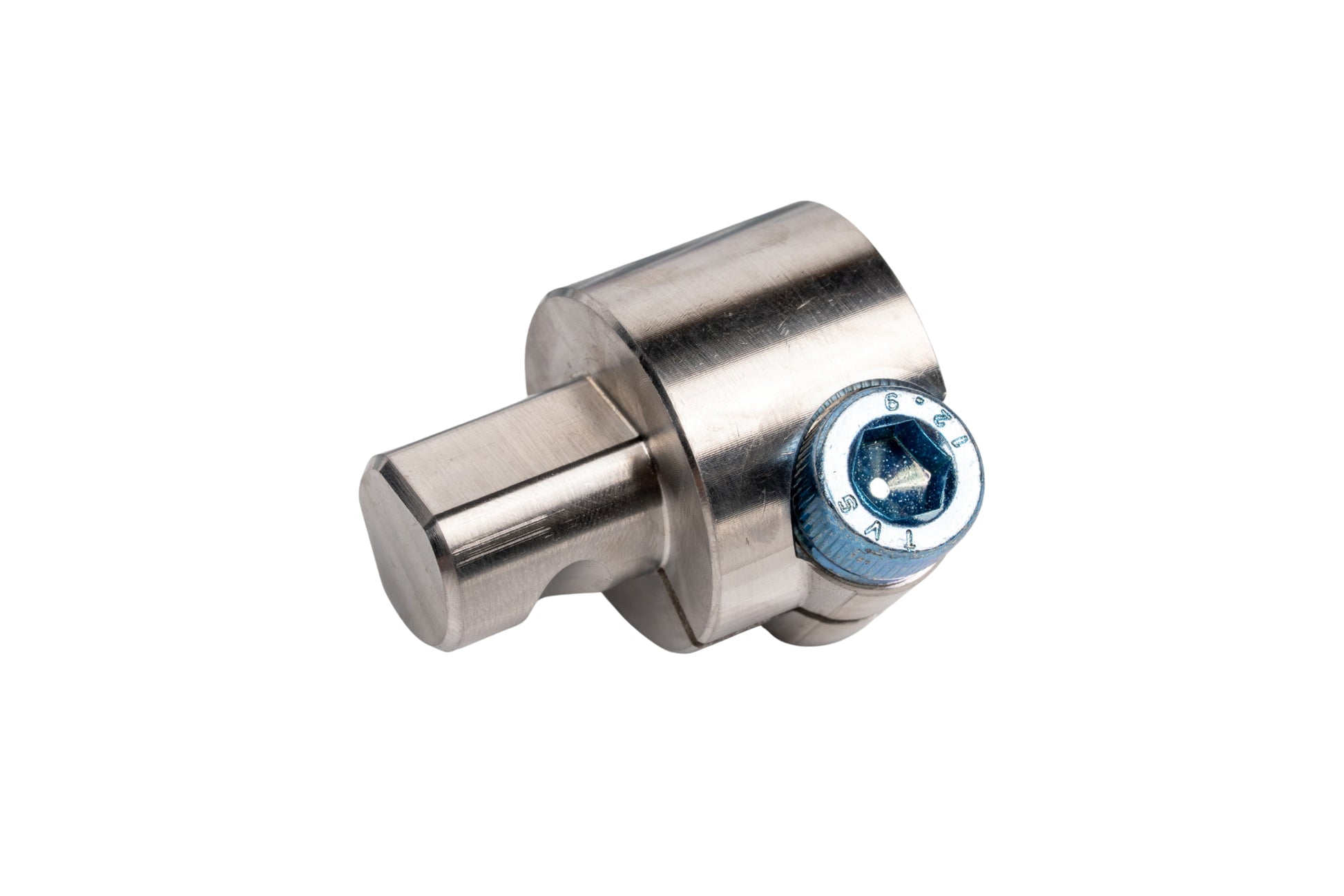

- (1) Steel Steering Shaft Extension w/ hardware
Before subframe drop with 2.5 inch lift:
After subframe drop with 2.5 inch lift:
NOTE:
If you have Eurowise gas tank skids, you will need to leave the rear mounting point on the subframe attached so the rear portion that bolts to the bracket lines back up easily.
Contact us if you have any questions.

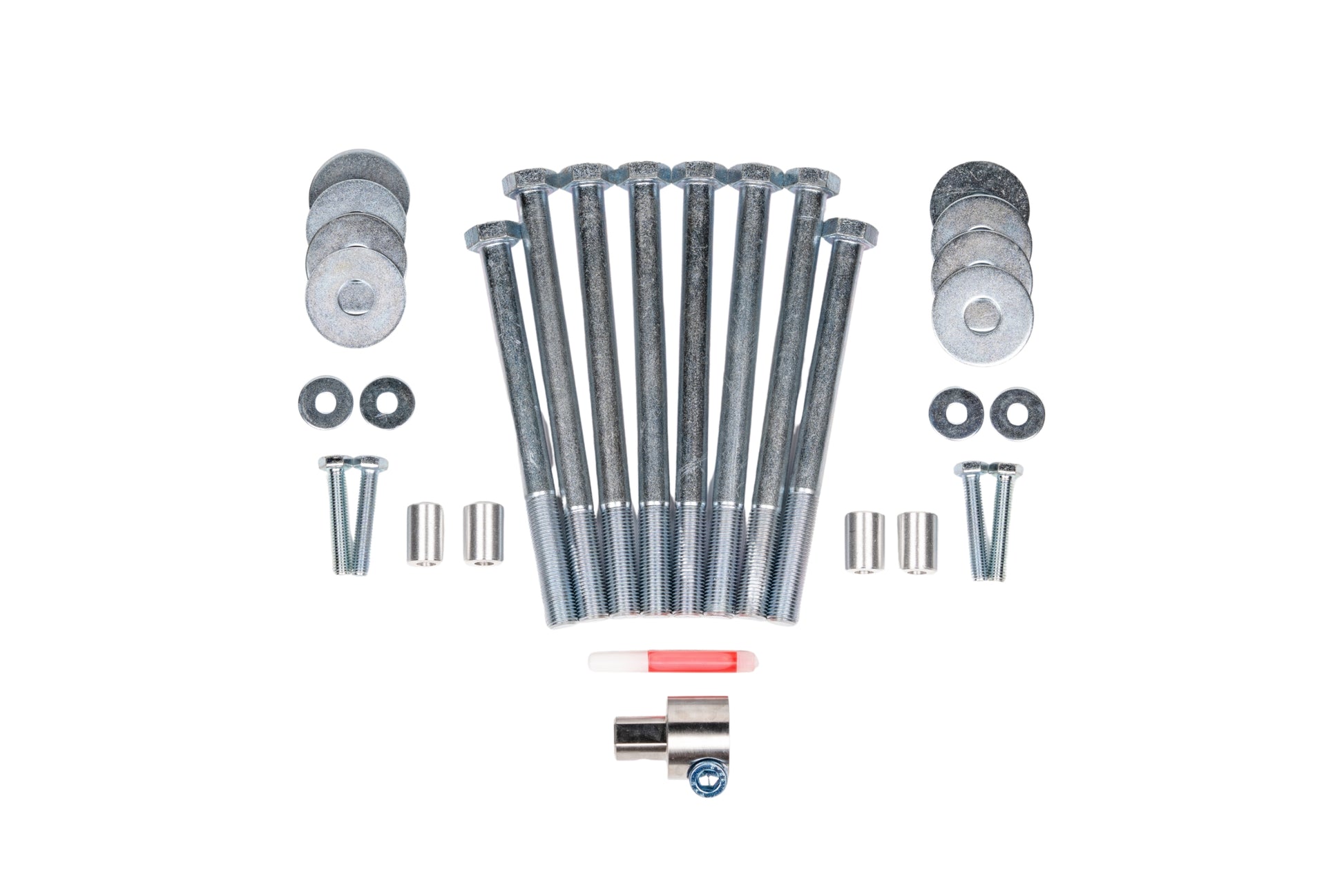

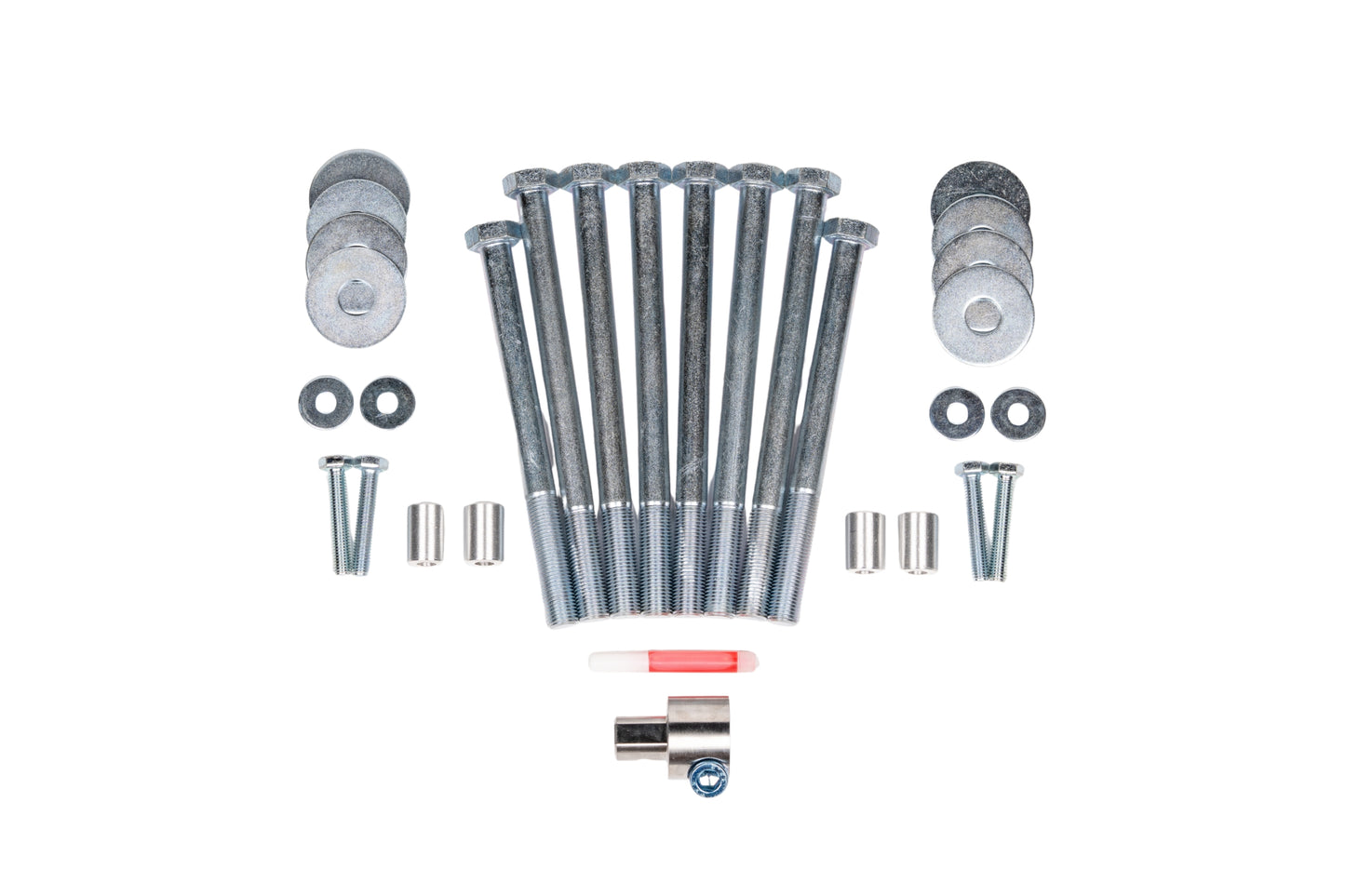

- 8 Subframe Spacers

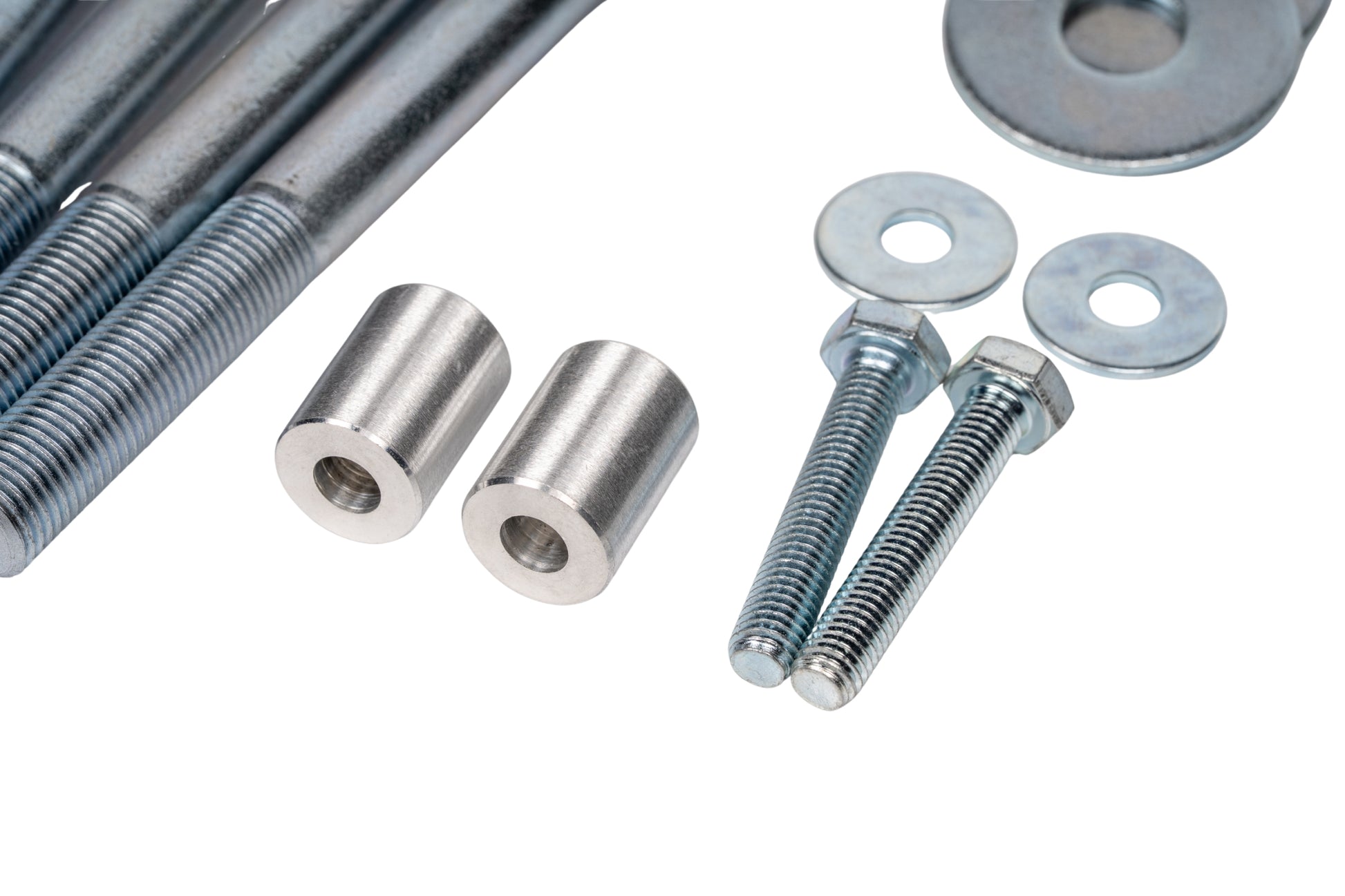

- Extended Hardware
- Steel Steering Shaft Extension
With the Eurowise Coilovers/4" plus lift kit it brings your axles to nearly 5 degrees of angle when on level ground. You will have to modify your exhaust as the subframe will contact it with a 2" subframe drop.
Before subframe drop with 2.5 inch lift:
After subframe drop with 2.5 inch lift:
NOTE:
If you have Eurowise gas tank skids, you will need to leave the rear mounting point on the subframe attached so the rear portion that bolts to the bracket lines back up easily.
Contact us if you have any questions.
