GEN 1 & 2 - 1/2" SUBFRAME DROP KIT - CAYENNE/TOUAREG/Q7

Eurowise ½” Subframe Drop Kit

Designed to use with our 2.5 steel spring or 2" air suspension lift kit.

This is not a mandatory upgrade, however, if you plan on doing heavy off-roading or driving in the lifted modes on air suspension vehicles we recommend it.

When lifting your vehicle, the angle & length between your wheel hubs and transmission increases. Our subframe drop kits are designed to correct this change in axle geometry by lowering the subframe; 2.5 inches of lift is the maximum lift that a Gen 1 & 2 Cayenne, Touareg, and Q7 can achieve without stressing the OEM CV joints. On some vehicles, especially those with more worn components, 2.5” of lift is enough to cause CV joints to click.

This kit is designed to eliminate CV joint clicking and improve axle geometry, to roughly 5 degrees, for vehicles with a 2.5” lift.

FITMENT:

• 2002-2010, 2011-2017 VW Touareg
• 2002-2010, 2011-2017 Porsche Cayenne
• 2006-2015 Audi Q7

PRODUCT INCLUDES:

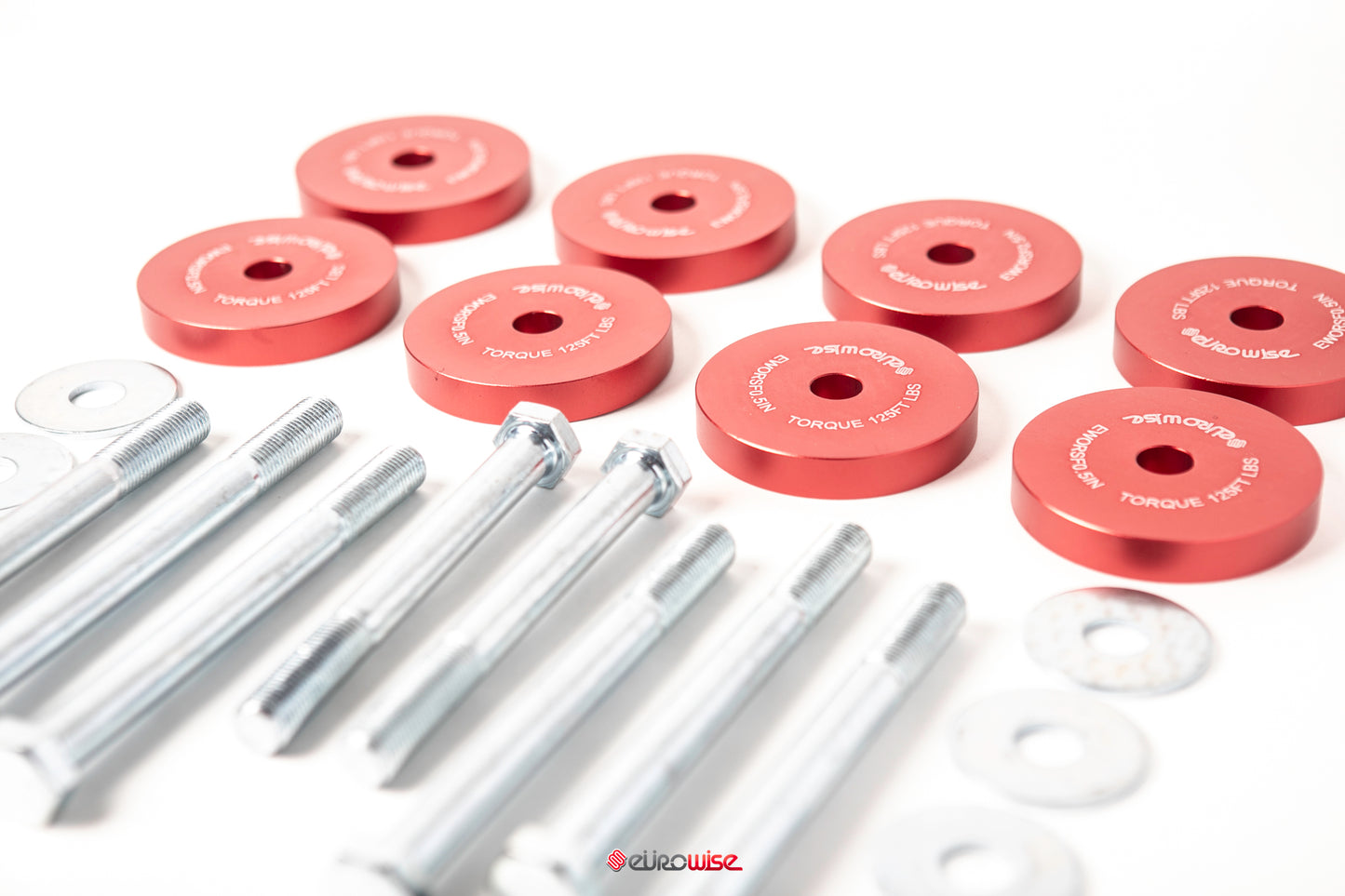

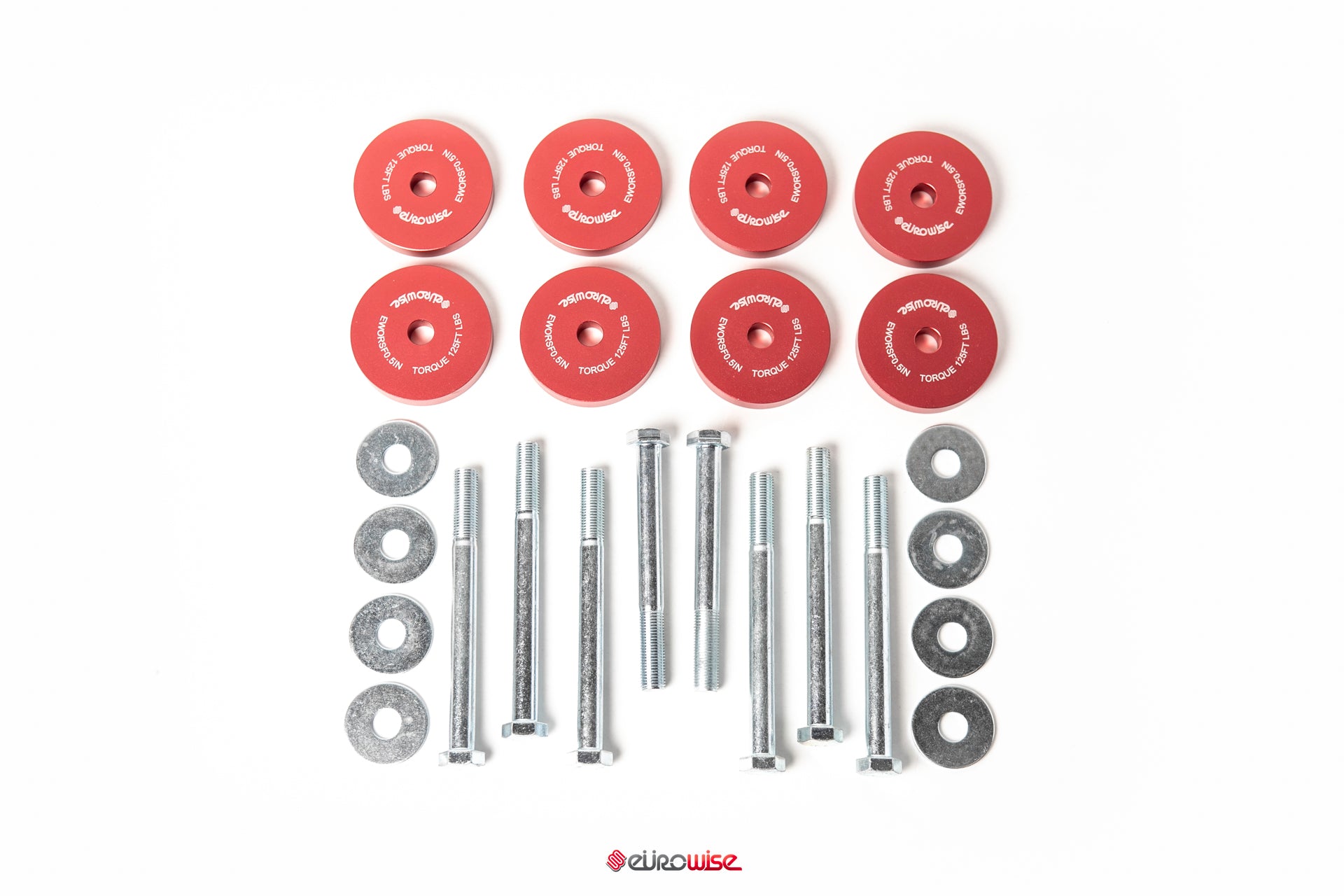

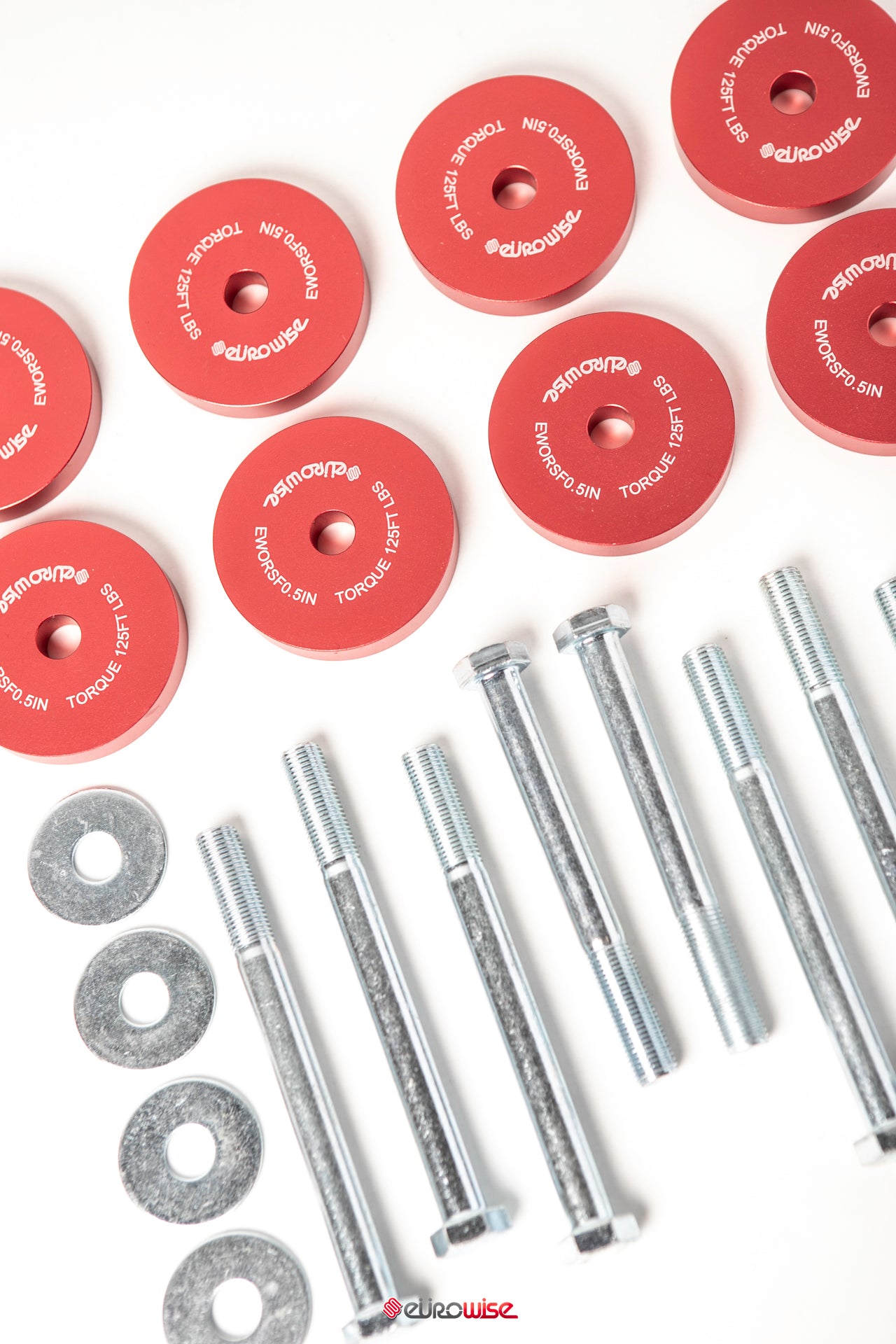

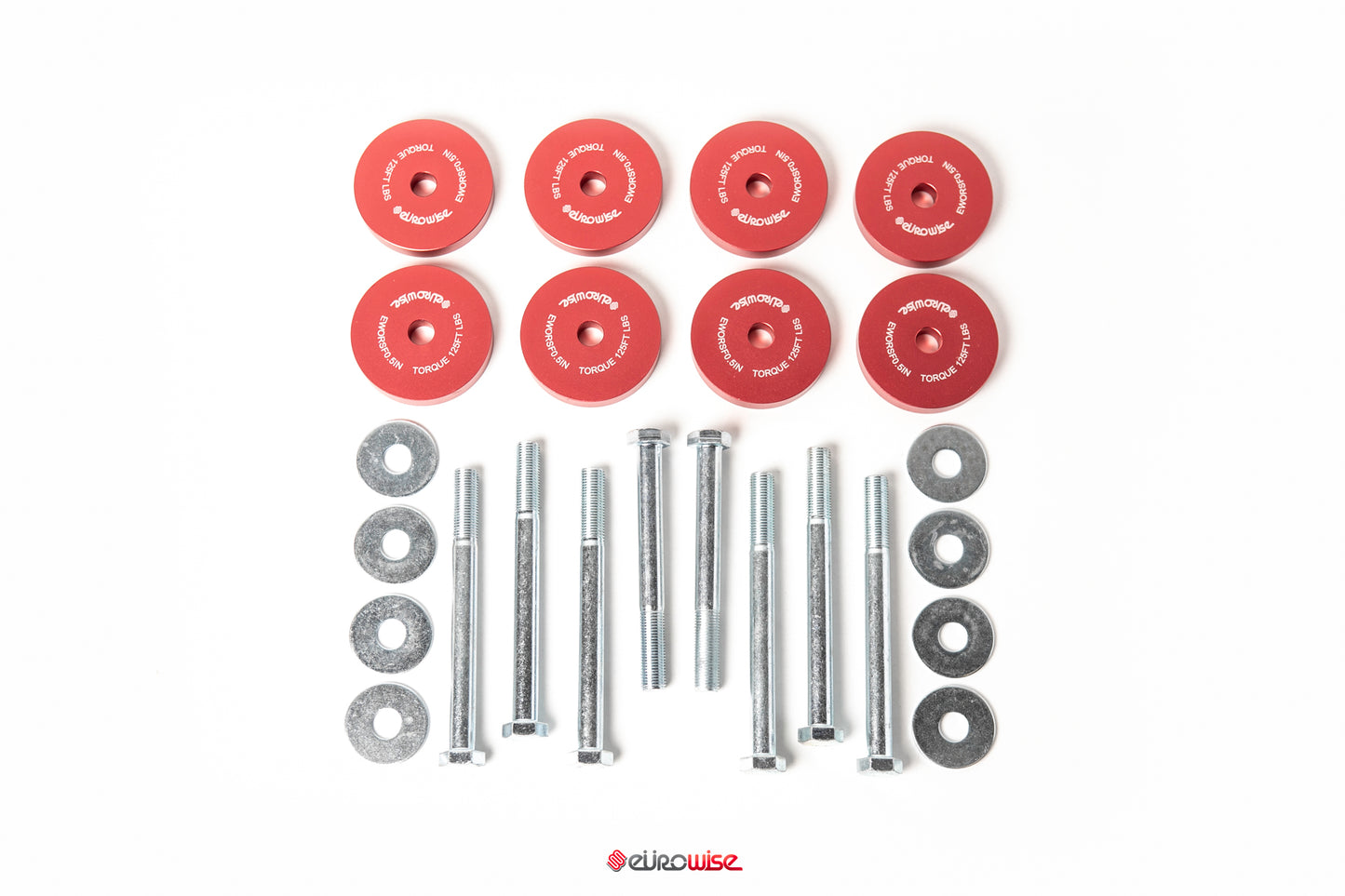

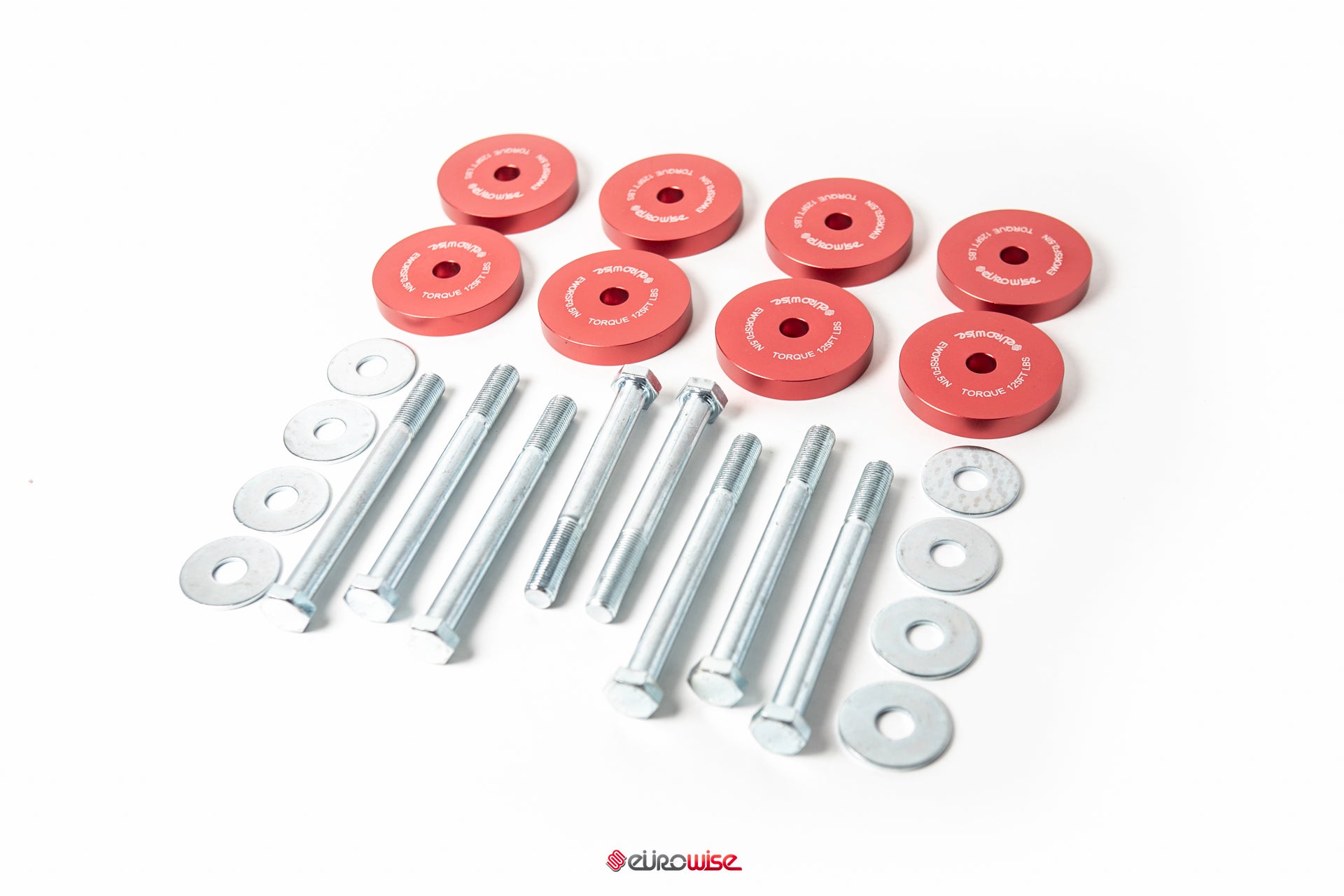

(8) ½” Subframe Spacers w/ Hardware

Helpful Links:

Tire Fitment Guide

Installation Guide

Offroad Build Gallery

Install at your own discretion, professional installation recommended. We are not responsible for any damages that may occur of improper install and/or use.
