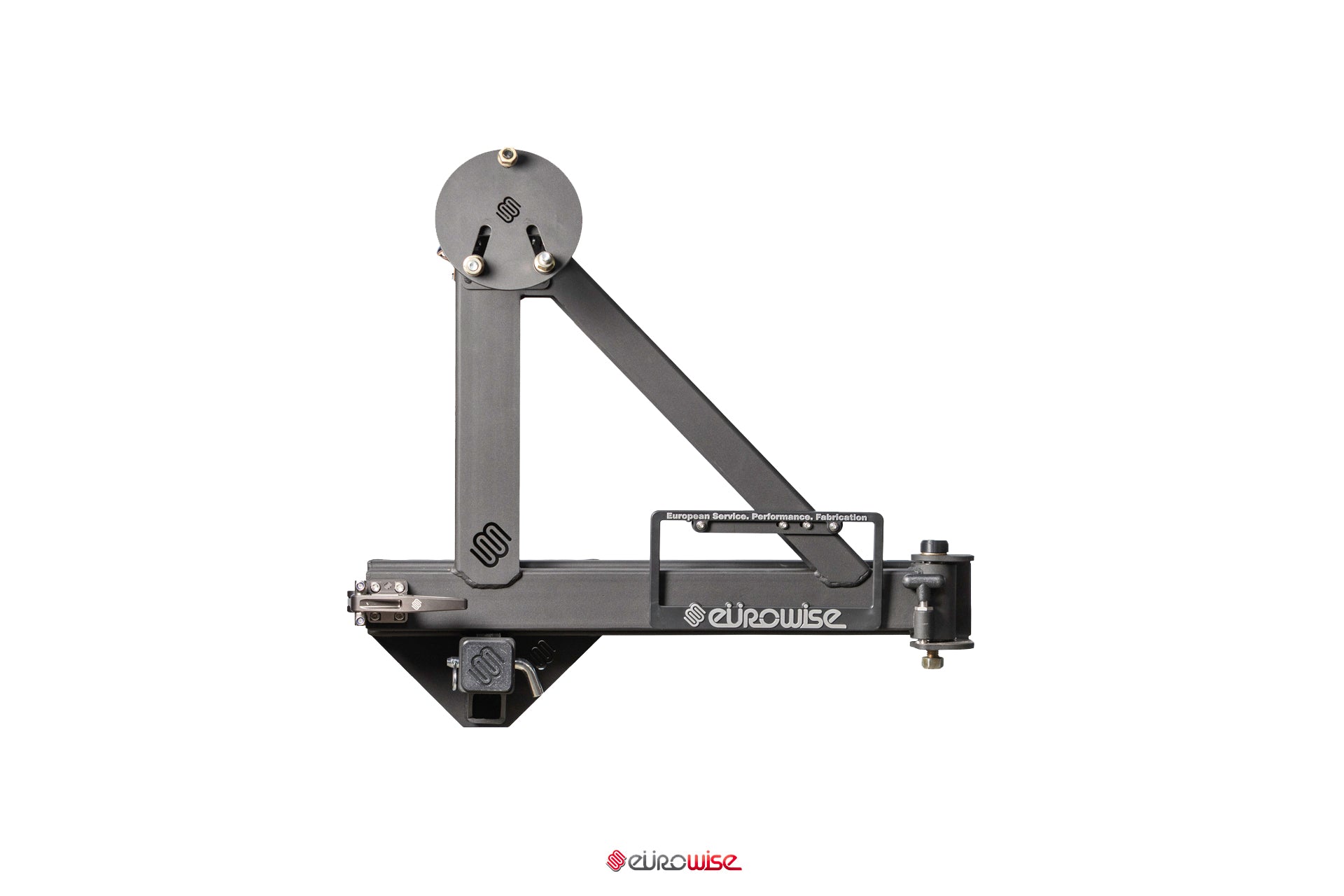

Hitch Mounted Spare Tire Swing Out Carrier

DISCLAIMER: This is a built to order product. Built to order items may not be cancelled after 72 hours from the time of purchase, as they are then placed in the fabrication queue. No returns accepted on these products, without exception.

Our version of the Tow Hitch mounted tire swing out system. We've designed this specifically around the Cayenne and Touareg to maximize space and accessory hardware attachments. Fits both Cayenne and Touareg and allows for funtional hatch operation without interference up to 35" tires (larger tires will clear when opening the swing out completely). Our hinge is a massive that is 2-3/8 inches in diameter, is supported by 2 inch bearings, sealed on both ends and mounts in double sheer with a massive 3/4" grade 8 bolt. Double sheer mounting means the hinge is supported on the top and bottom of the hinge for maximum strength.

Optional Bolt on Accessories:

• High Lift Jack Bracket
• RotoPax Brackets (cannot be combined with the table, or traction boards)
• Fold Down Table (cannot be combined with the RotoPax Brackets, or traction boards)
• Traction Board Brackets (cannot be combined with the RotoPax Brackets, or table)

Confirmed Fitted Vehicles:

• Volkswagen ATLAS
• Volkswagen Touareg 2004-2017
• Porsche Cayenne 2004-2017
• Audi Q7 2007-2017

Standard Features:

• License plate bracket
• Patented silent hitch pin comes standard

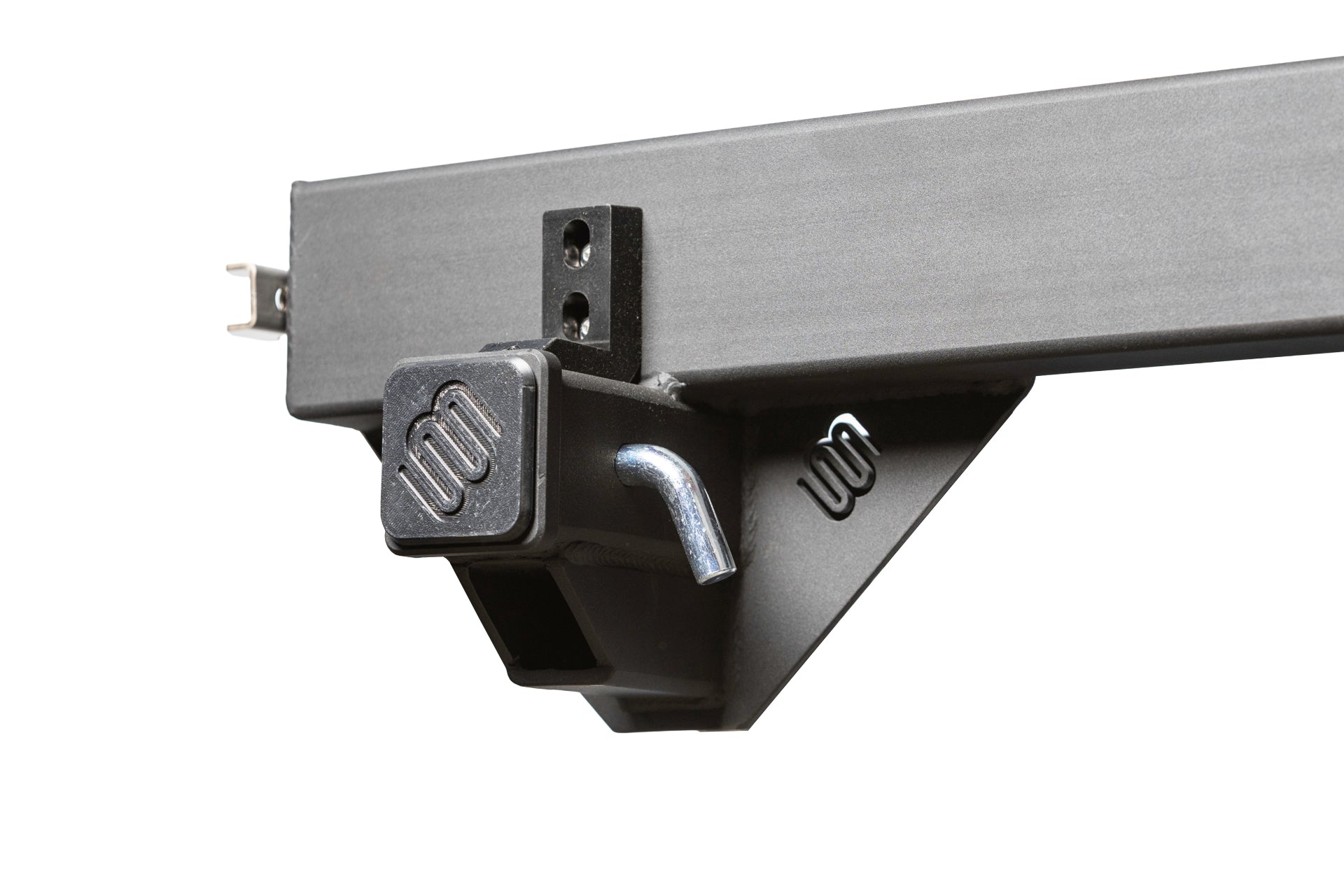

• Added hitch for towing or accessory brackets like bike rack or additional storage rack

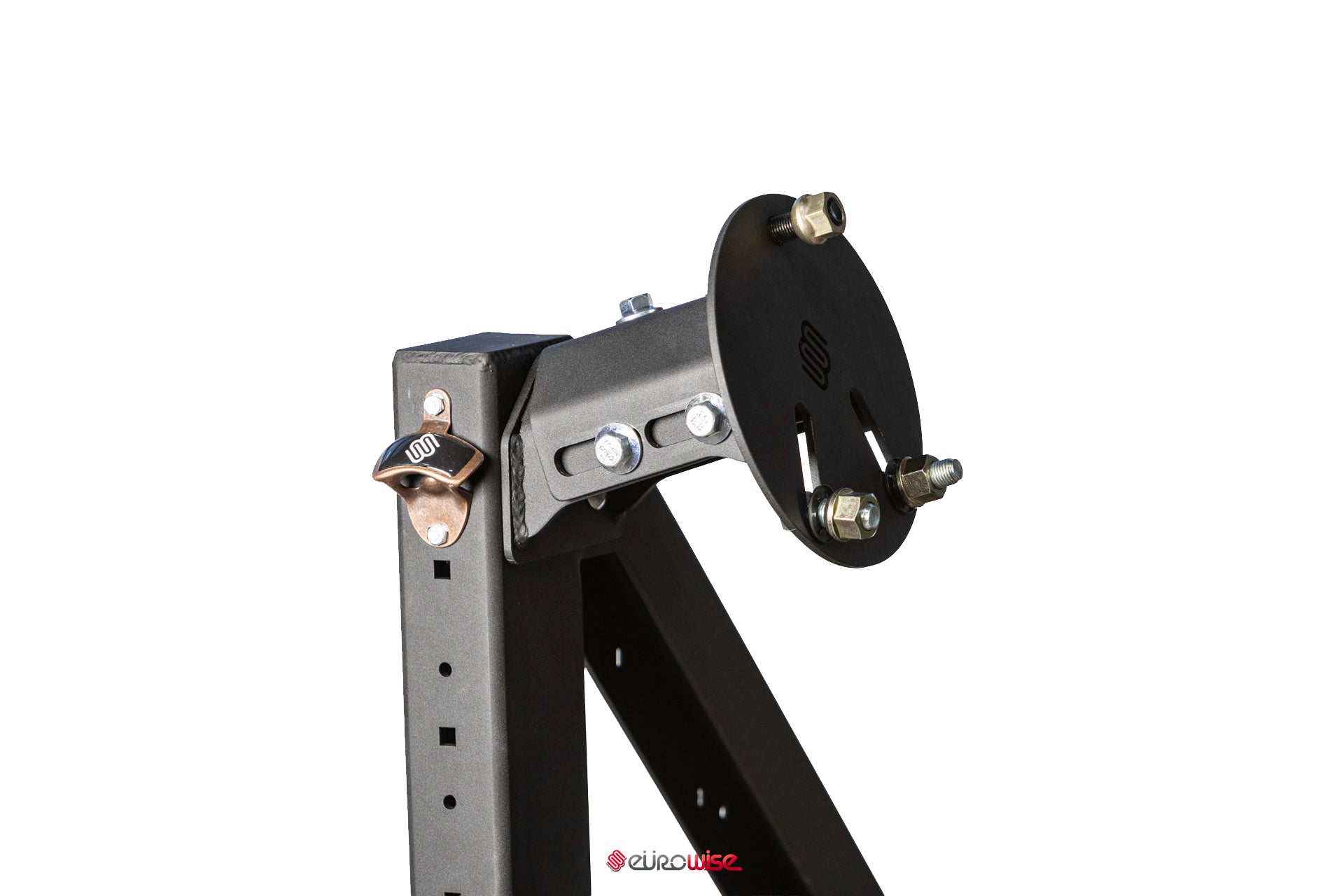

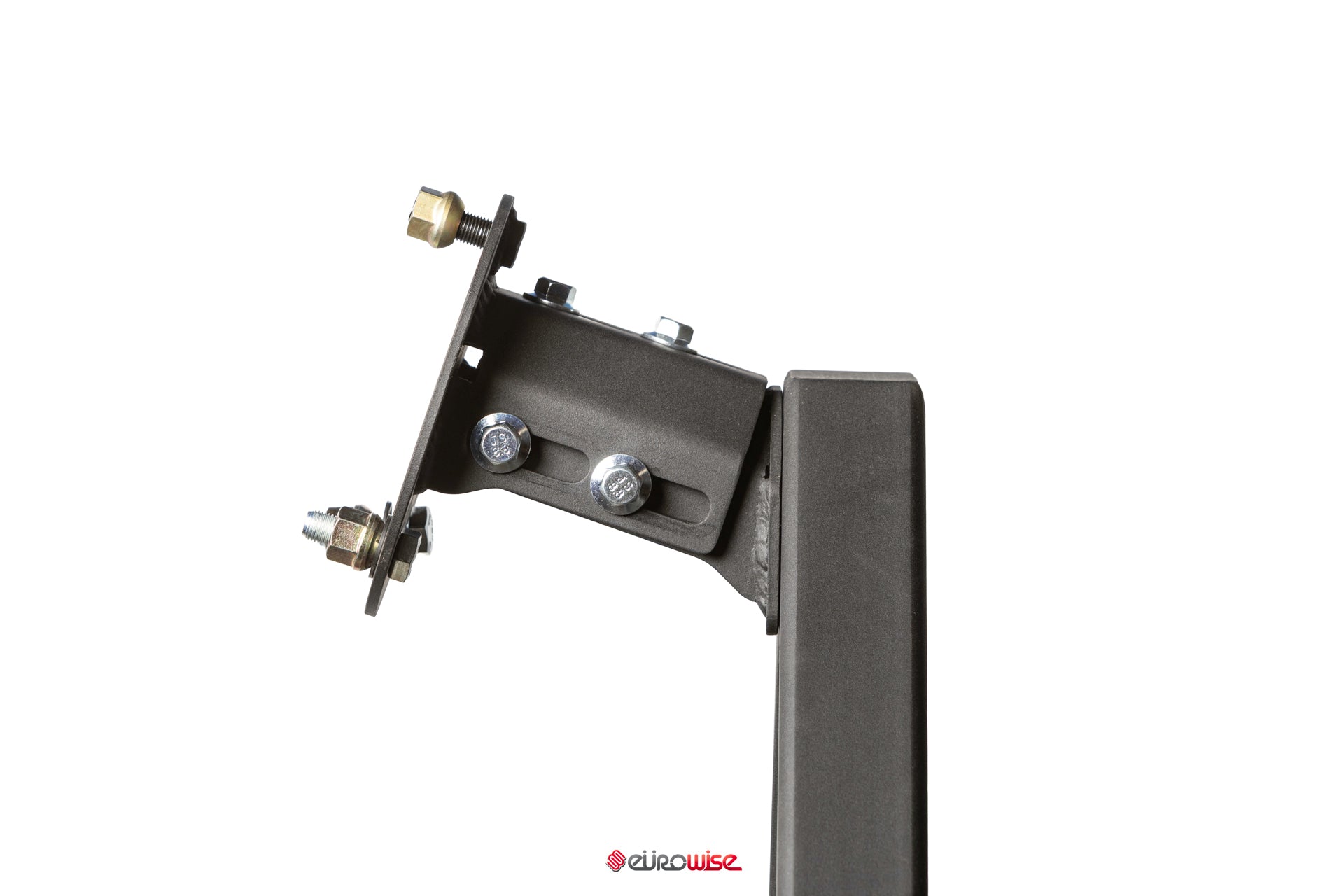

• Slotted wheel back pad for multiple wheel patterns
• 1000 pound rated hinge bearings
• Powder coated texture black
• Sealed top and bottom for bearing protection
• Spring loaded pin with hex head retaining ring - no more scratches from using pliers to tighten spring retainer
• Hold open locking positions at 90 and 113 degrees open
• Stainless steel skid pad under spring pad to protect from paint wear and corrosion, stainless steel hardware

100% MADE IN USA in House at Eurowise Performance

Please Note: 5x112-5x114 wheels will require adapter to fit the carrier hub. We can sell individual adapters if you need.

INSTALLATION GUIDE

OPTIONAL FOLD DOWN TABLE:

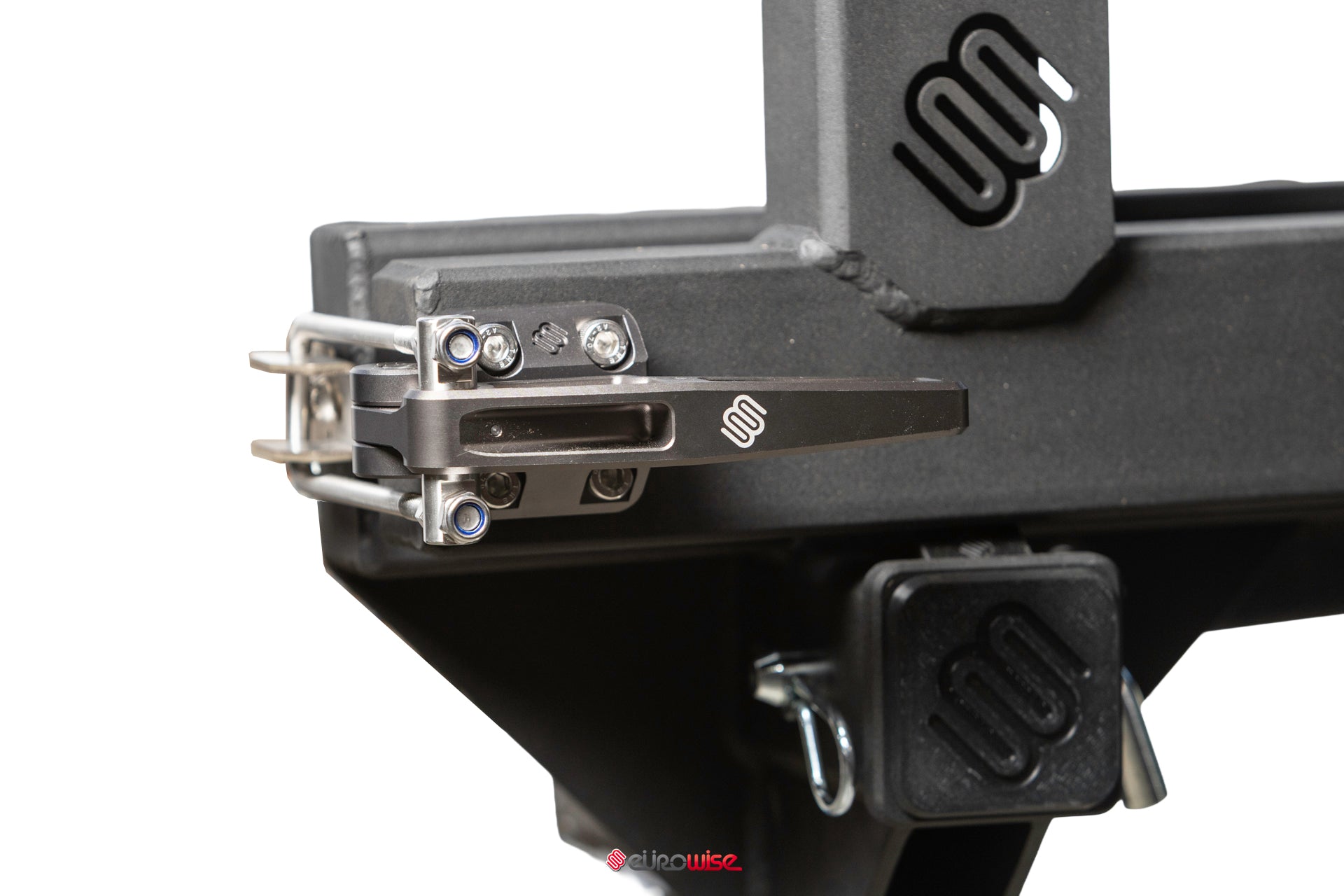

LOCKING DRAW LATCH HANDLES:

When Purchasing High Lift mount option. Rubber Jack holder is included.

LOCKING Hitch Pin Option:

Dual RotoPax Fuel Can Holder Brackets:

Offroad Build Gallery: Click Here
