GEN 1 & 2 - 1.5" SUBFRAME DROP KIT (FULL) - CAYENNE/TOUAREG/Q7

1.5” Subframe Drop Kit, designed for use with lift kits of 3.5” and more

When lifting your vehicle, the angle and length between your wheel hubs and transmission increases. Our Subframe Drop Kits are designed to correct this change in axle geometry by lowering the subframe.

Our 1.5” Subframe Drop Kit lowers both front and rear subframes, eliminating lift restrictions due to axle geometry issues. This level of Subframe Drop Kit is designed primarily for use in conjunction with our Eurowise, Eurowise+Bilstein, or Eurowise+JRZ coilovers.

NOTE:

If you have Eurowise gas tank skids, you will need to leave the rear mounting point on the subframe attached so the rear portion that bolts to the bracket lines back up easily.

A 1.5” Subframe Drop will decrease overall lift height. For example, a 2.5” lift kit with a 1” subframe drop will result in 2” of actual lift. A 3” lift kit with a 1” subframe drop will result in 2.5” of actual lift.

Fitment:

• 2002-2010, 2011-2017 VW Touareg
• 2002-2010, 2011-2017 Porsche Cayenne
• 2006-2015 Audi Q7

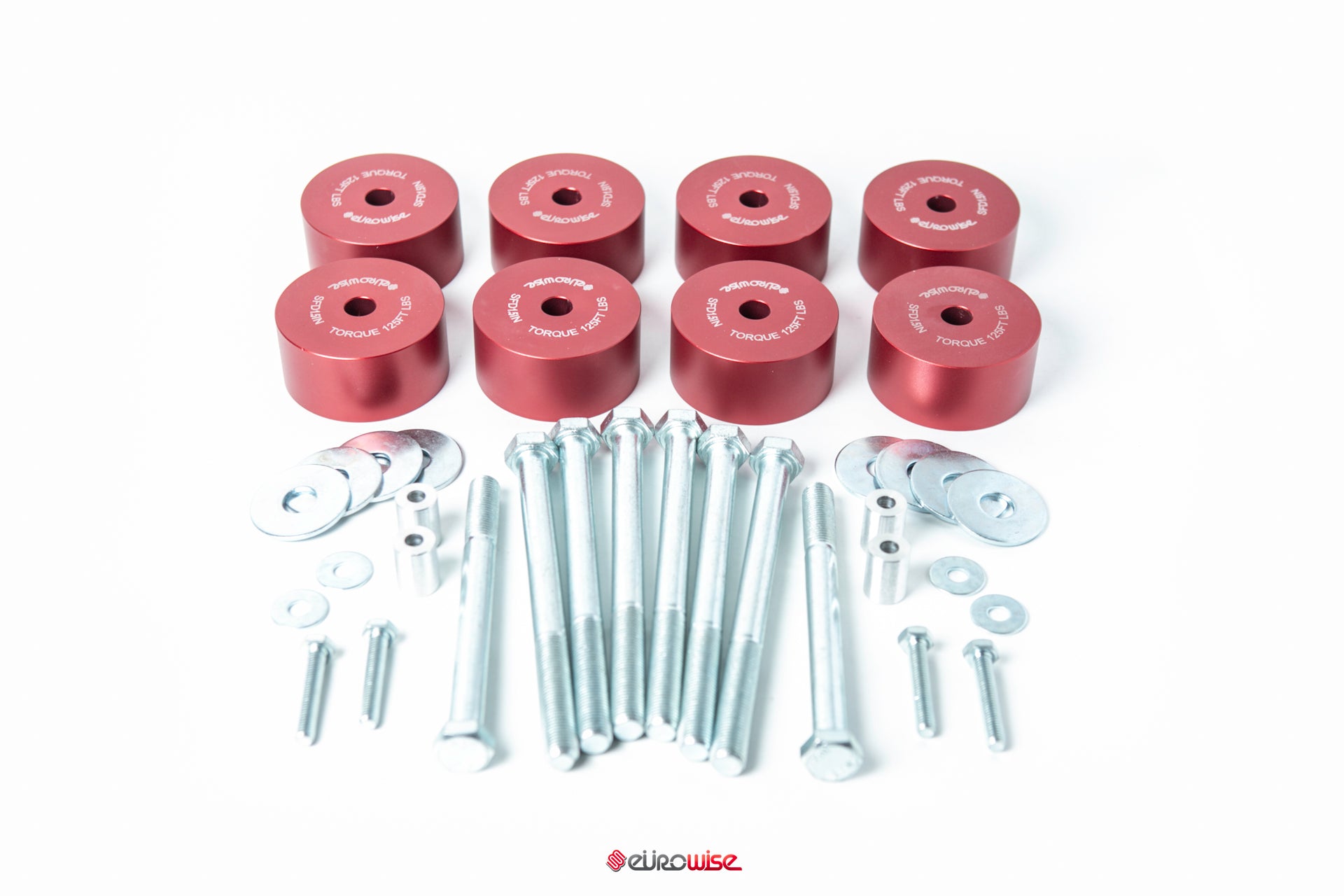

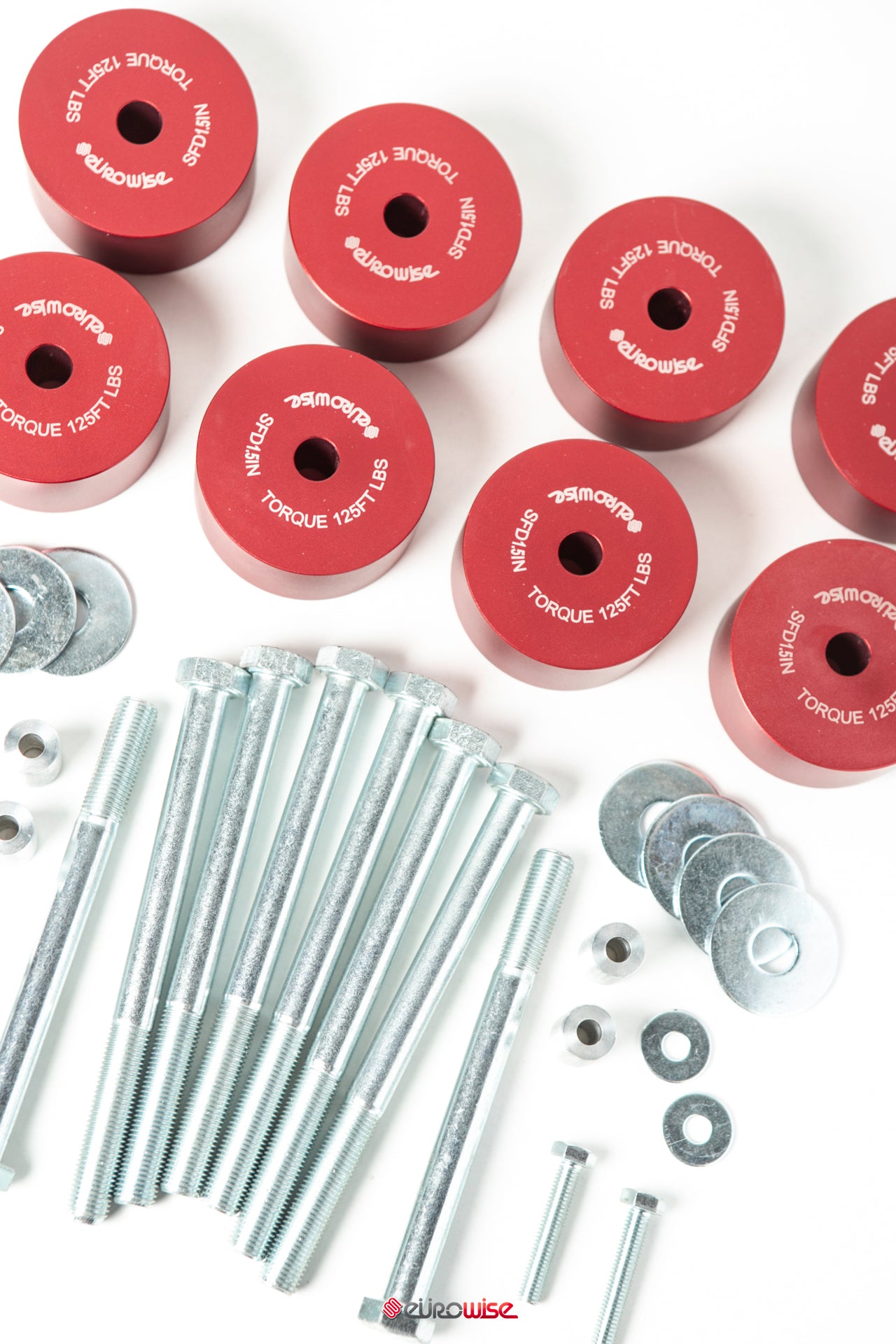

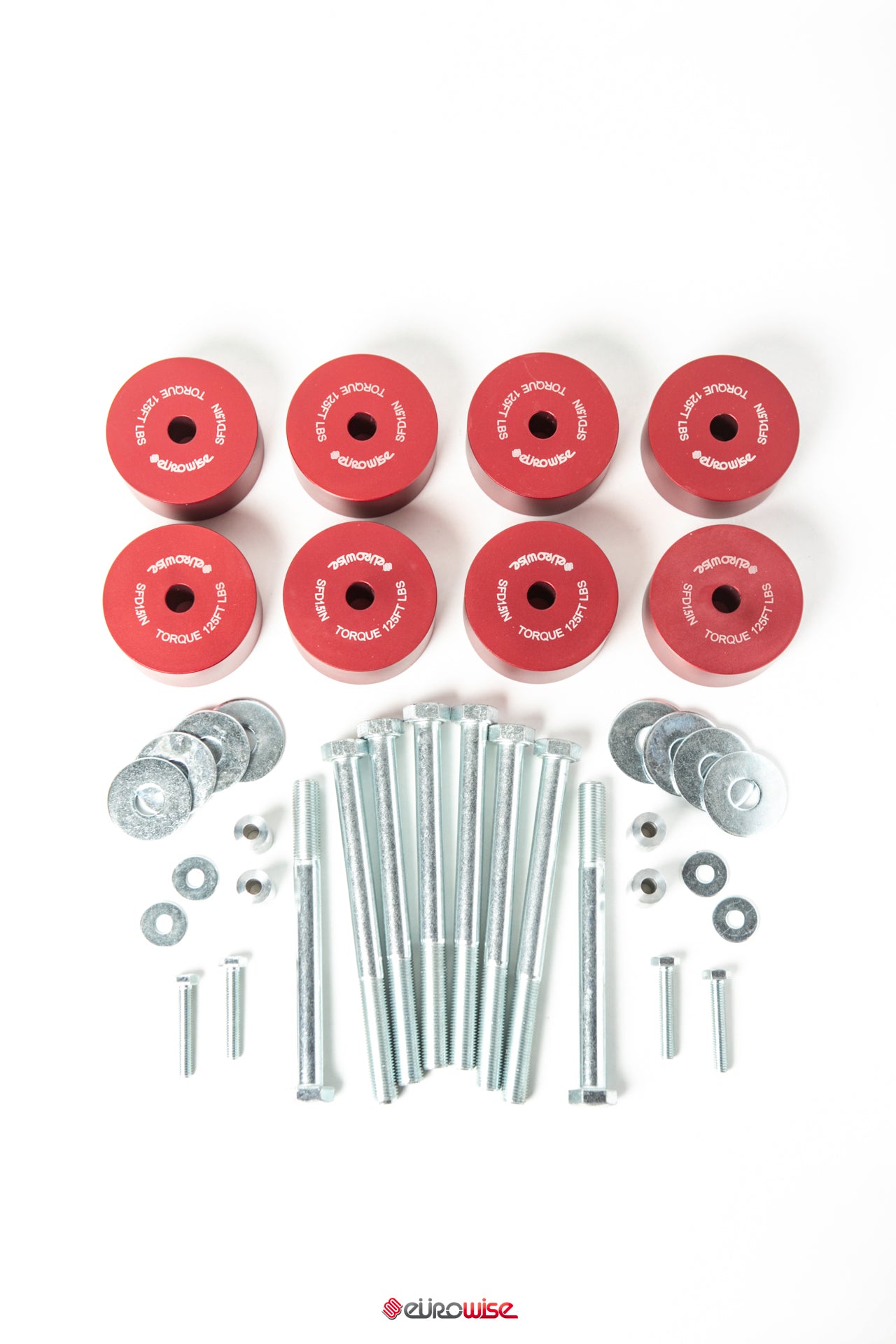

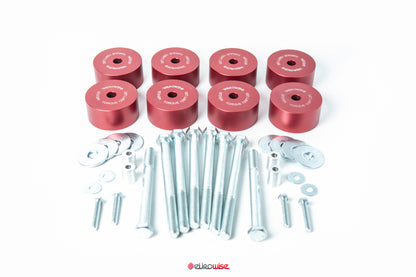

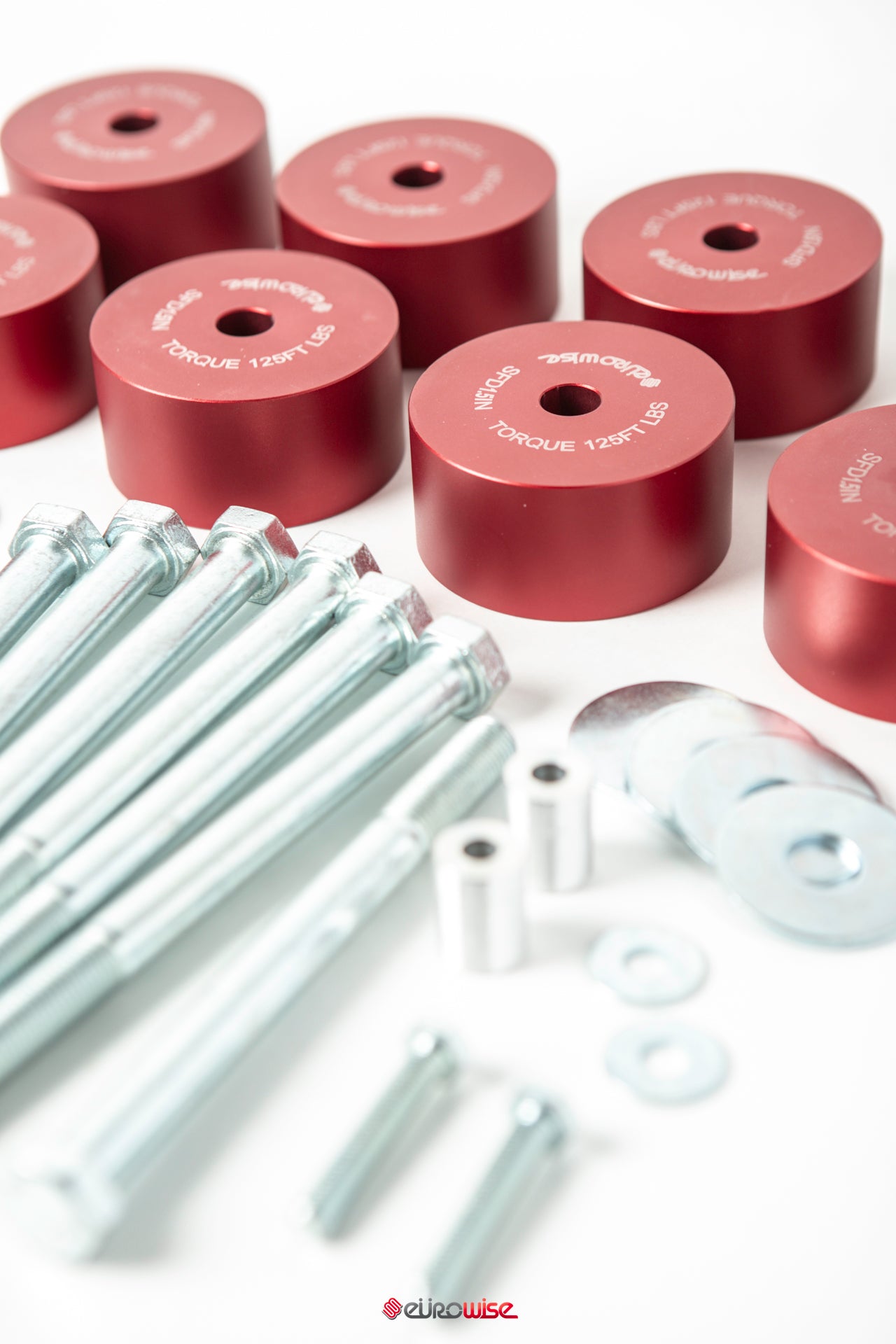

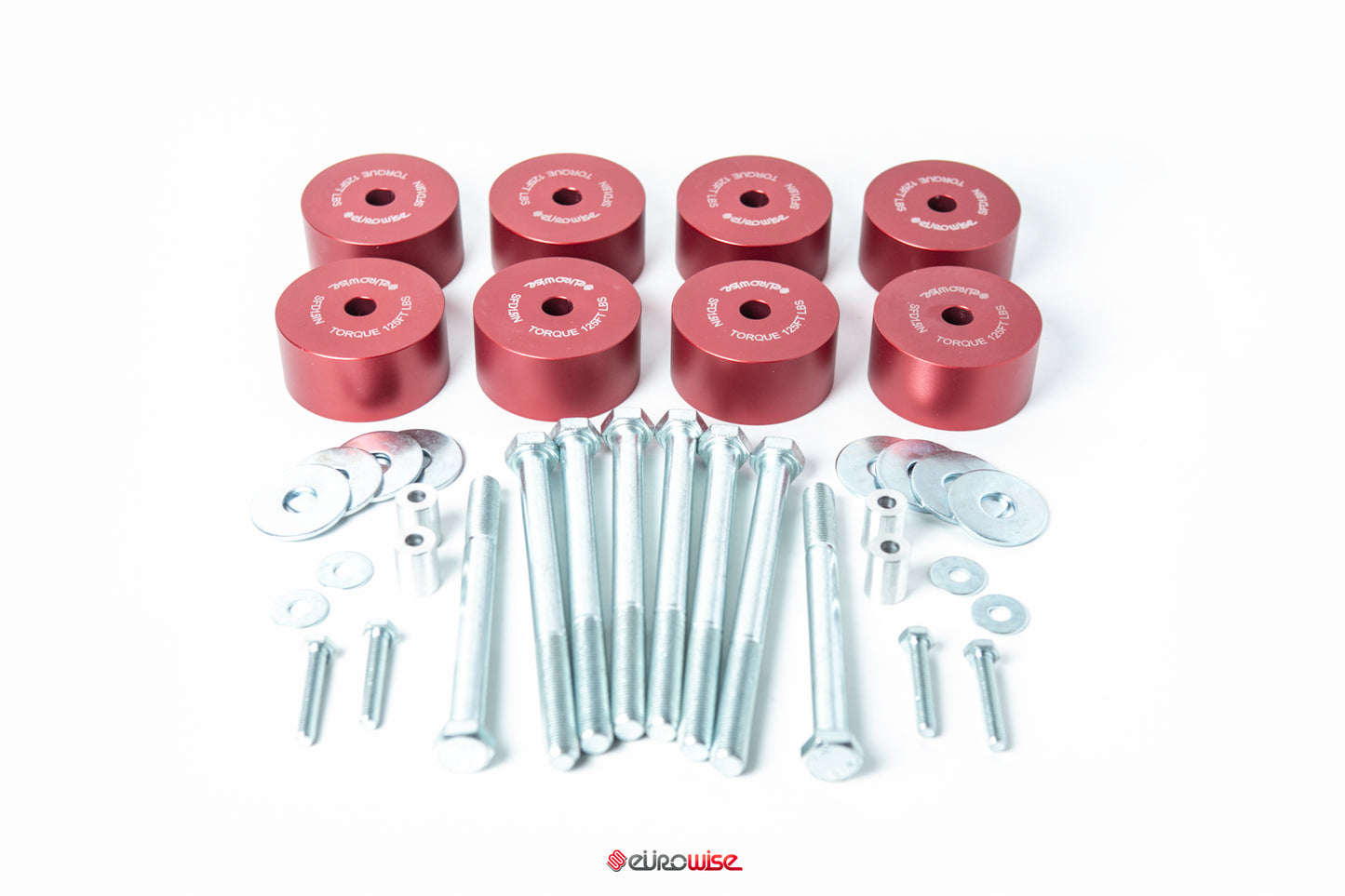

Product Includes:

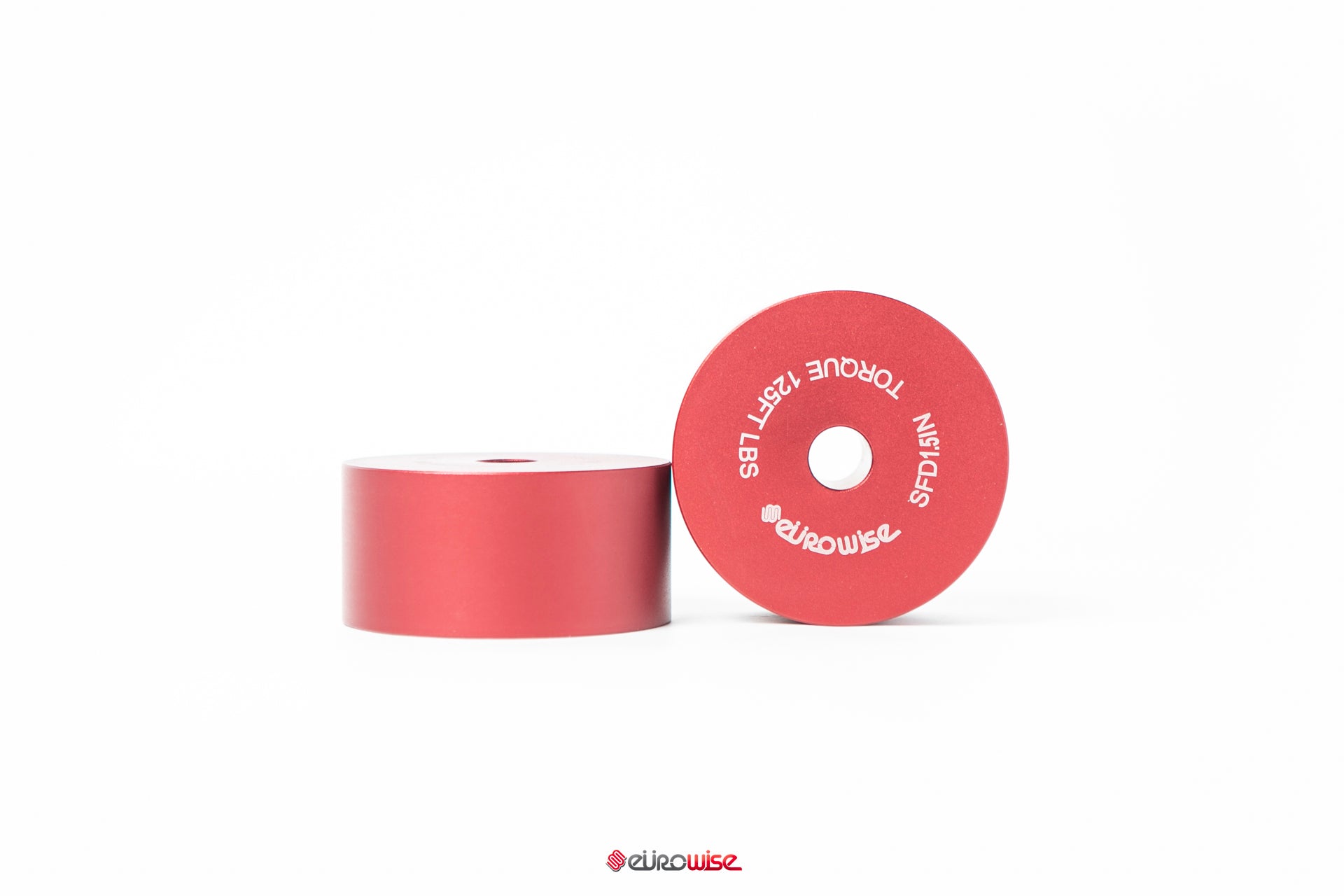

• (4) 1.5” Front Subframe Spacers w/ hardware
• (4) 1.5” Rear Subframe Spacers w/ hardware

Offroad Build Gallery: Click Here
