FOX ADJUSTABLE SHOCKS - G WAGEN - W463 (2002-2018 G500/G55/G550/G63)
SKU: EWO463SS10Couldn't load pickup availability
Materials
Materials
Shipping & Returns
Shipping & Returns
Dimensions
Dimensions
Care Instructions
Care Instructions
The Gwagen fitment aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.
Its external reservoir allows for increase oil and nitrogen capacity while delivering striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.
We recommend running these shocks with Eurowise or ARB springs. Even though they will work with other manufactures if the spring lift height is too tall for this shock design. These shocks can lead to failure and void warranty. We can only warranty these shocks with Eurowise products.
We typically stock these shocks. We are not a drop shipper like most seen online. Please call us to check availability.

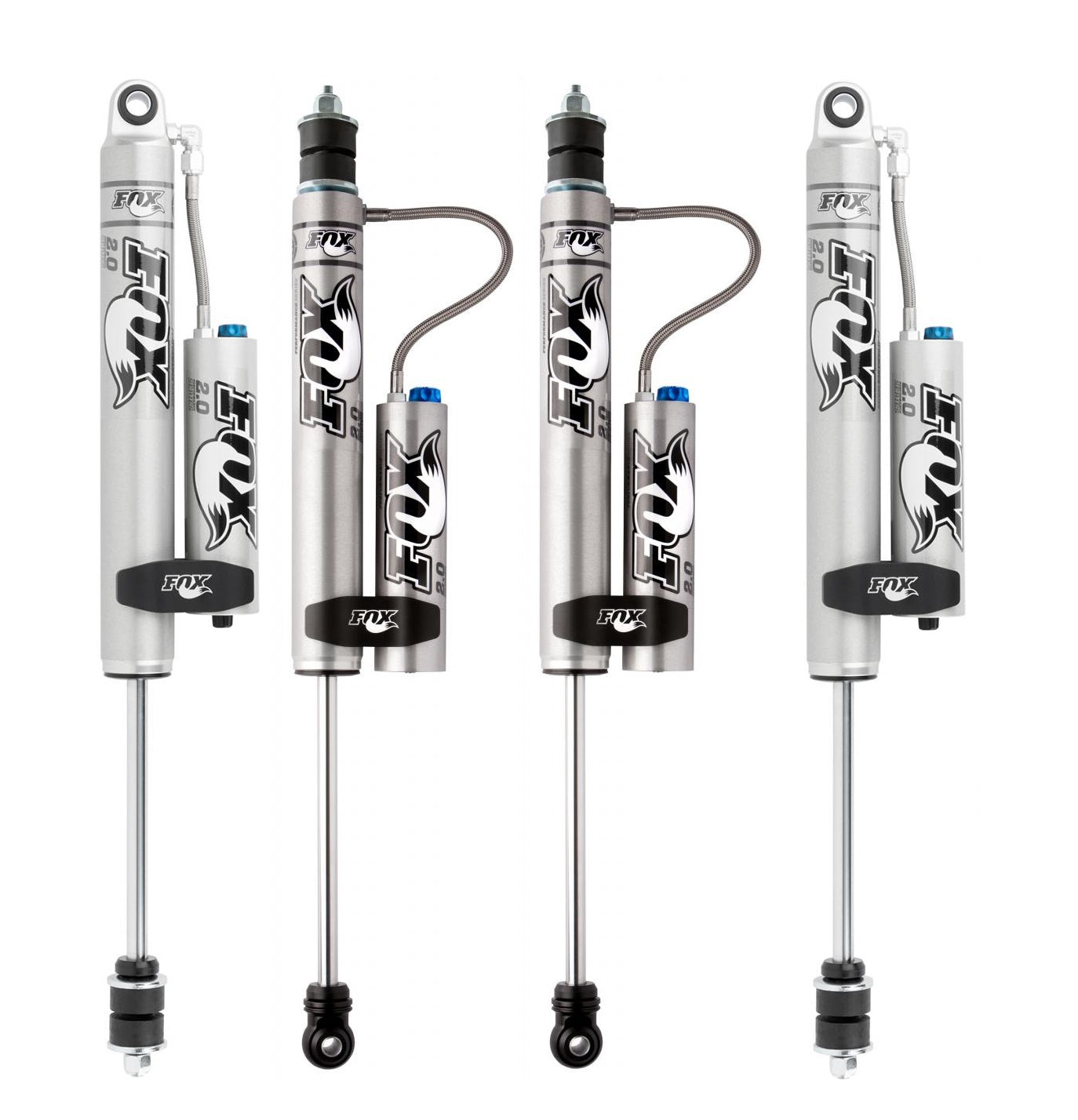

Product Includes:
- QTY. 2 Front Shocks
- QTY. 2 Rear Shocks
Fitment:
2002-2018 G500/G55/G550/G63

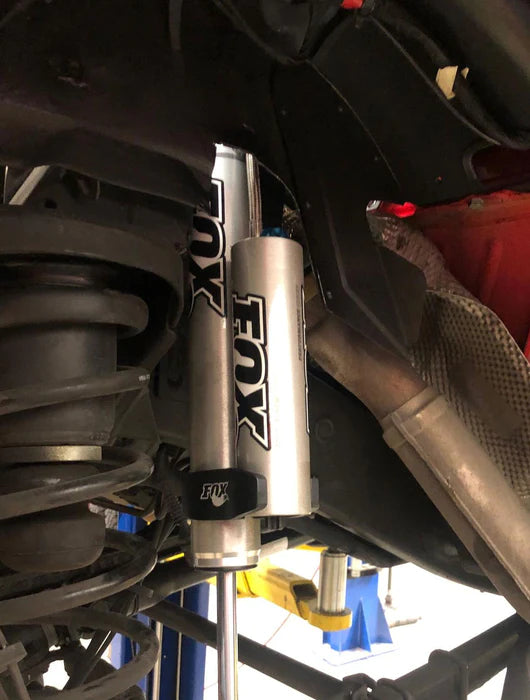

NOTE: 2024 version Front Shocks no longer have reservoir clamps; they are mounted to the fender housing seen below.
| Body | 2.0" Impact extruded 6061-T6 aluminum will resist rust over time |
|---|---|
| Body Plating | Clear-anodized for a durable finish |
| Reservoir | 2.0" Smooth bore 6061-T6 Aluminum is hard anodized |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 5/8" hard chrome plated heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Valving | Application specific valving to maximize performance |
| Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
| Oil | JM92 Advanced Suspension Fluid for improved performance at variable temperatures |
| Bushings | Quiet nitrile rubber allows for increased suspension articulation |
| Travel (in) | 8.580 |
| Compressed (in) | 16.350 |
| Extended (in) | 24.930 |
| Top Mount | Eyelet |
| Bottom Mount | Stem Top |
| Fitment notes | W463 |
| MSRP | $379.95 |
Click Link for Installation Instructions: Installation Help Forum
DISCLAIMER - FOR OFF-ROAD USE ONLY
Eurowise parts, are sold for off-road use only. All performance modifications and installations are at the customers own risk.Eurowise Performance Fabrication Inc. or www.eurowise.com hold no responsibility either implied or otherwise for mechanical, electrical or other failure when using any aftermarket performance products. Items sold for off-road use only are illegal in many states and provinces and are intended for racing vehicles which may never be used on a public road.
By purchasing any aftermarket performance product, the customer takes full responsibility for any use, and/or misuse of the product and agrees that Eurowise Performance or www.shop.eurowise.com holds no responsibility for any consequences, legal, or other, of such use and/or misuse.
Offroad Build Gallery: Click Here
