GEN 2 - 3" LIFT KIT - CAYENNE/TOUAREG (STEEL SPRING)

Eurowise 3" lift kit for the second generation Porsche Cayenne and VW Touareg

Machined from a solid block of 6061 aluminum, these lift kits will never wear out or fail.

This is a direct bolt on lift kit that installs over the top of the OEM Strut in the front and between the upper strut mount and the spring on the rear. Requires removal of front and rear strut assembly and dropping of both subframes. Front struts do not require disassembly.

What's different about our kit vs. the competitors? We include an shock shaft extension that accounts for the spacer that you install between the spring and strut mount. This keeps your spring rate, shock travel, and ride quality the same as OE. This also translates into better performance on the trails.

Strut extensions come with the option for vehicles with and without electronic dampening. To install the connector must be depinned, the harness fed through the center of the extension, and then the connector can be reassembled.

FITMENT:

• 2011-2018 Volkswagen Touareg (with steel coil spring suspension)
• 2011-2018 Porsche Cayenne (with steel coil spring suspension)

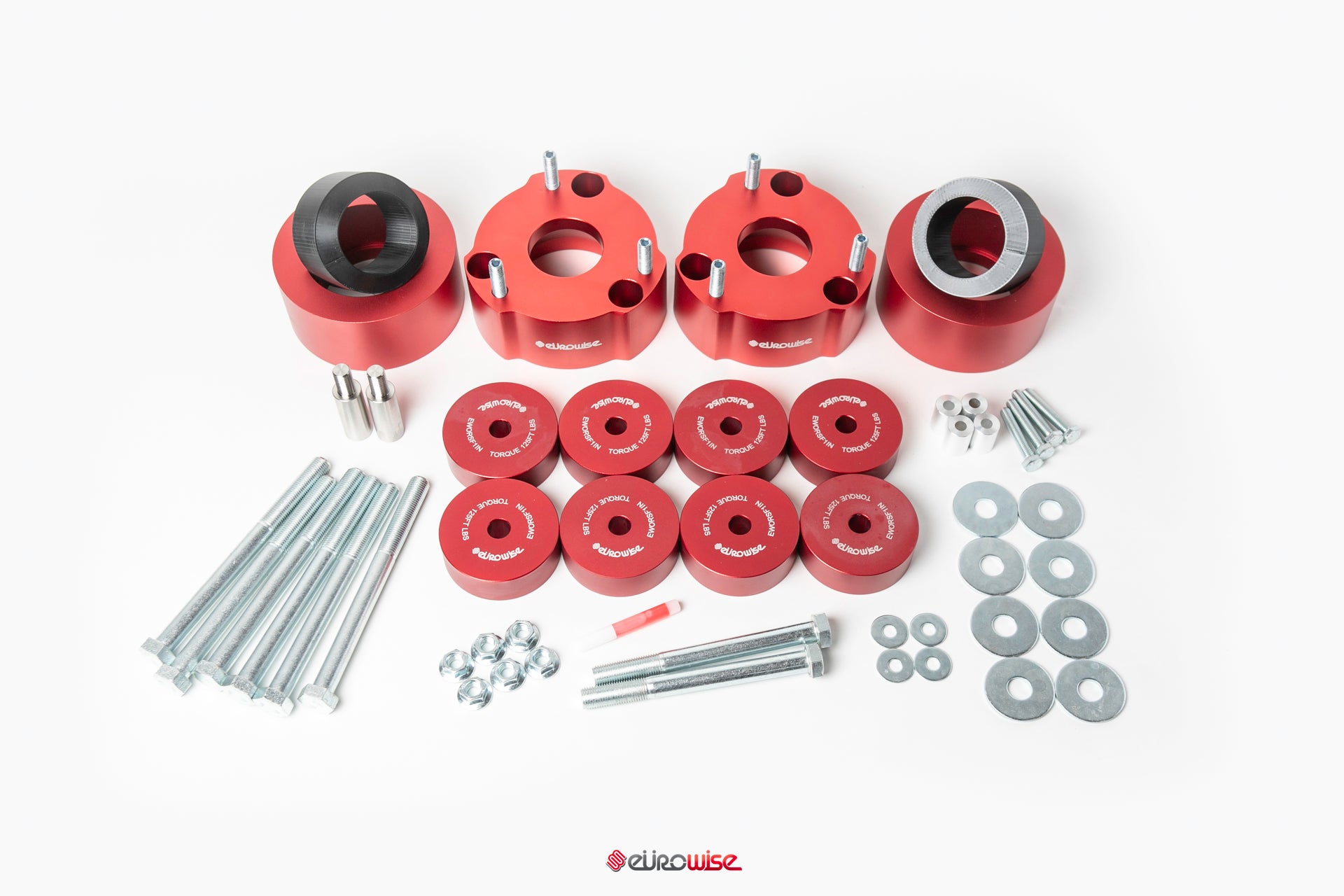

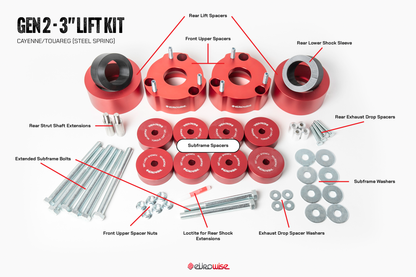

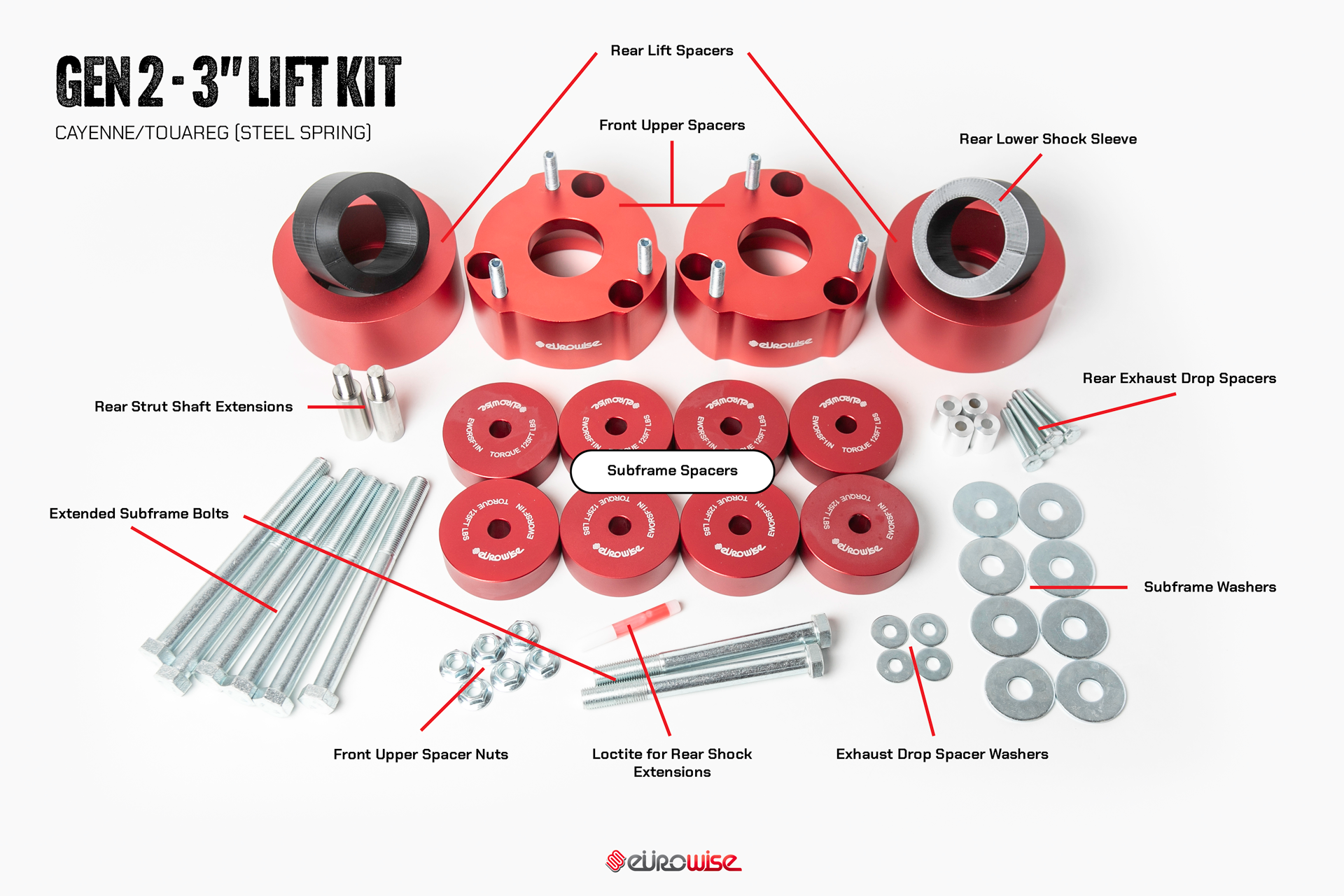

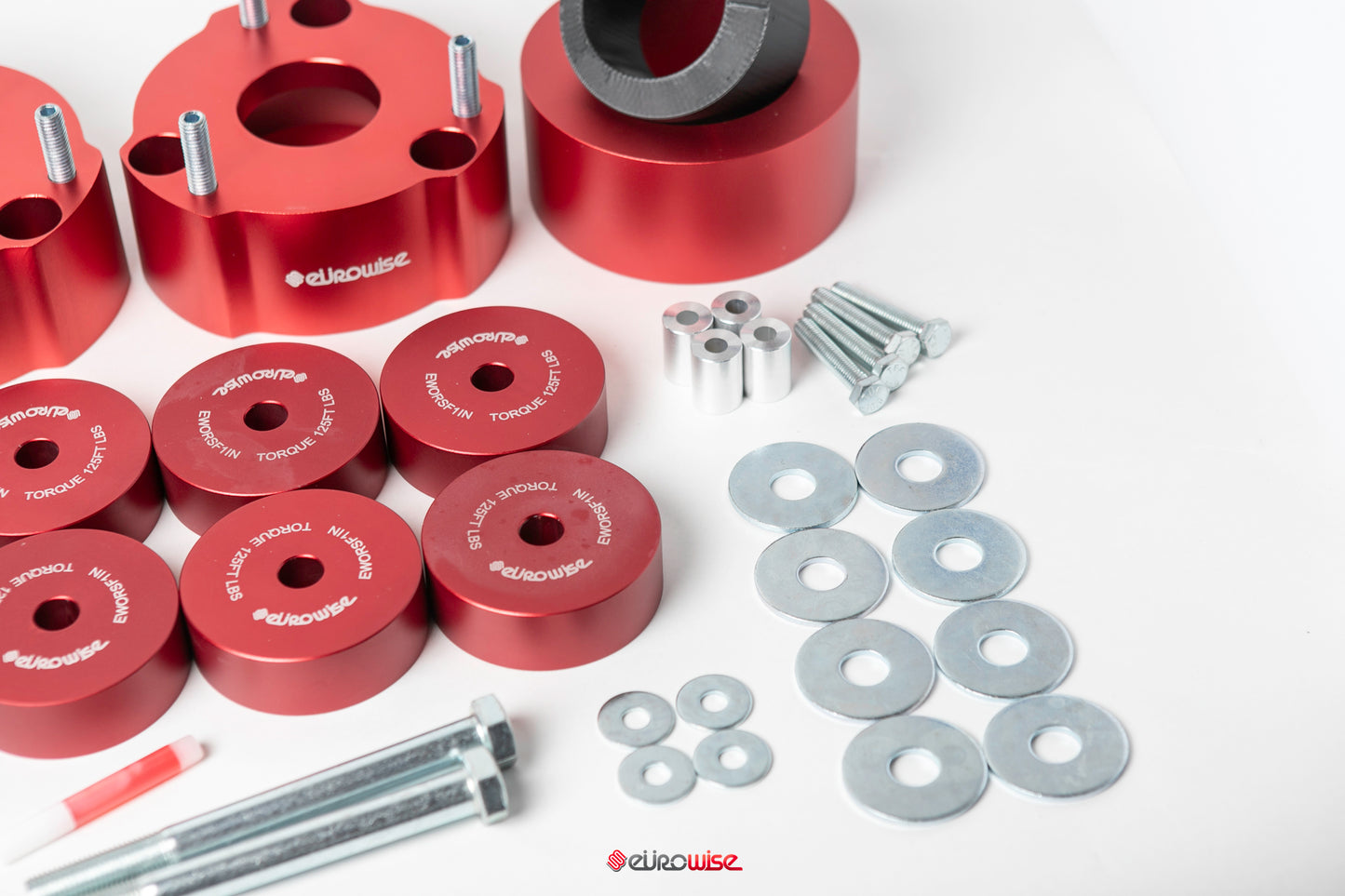

PRODUCT INCLUDES:

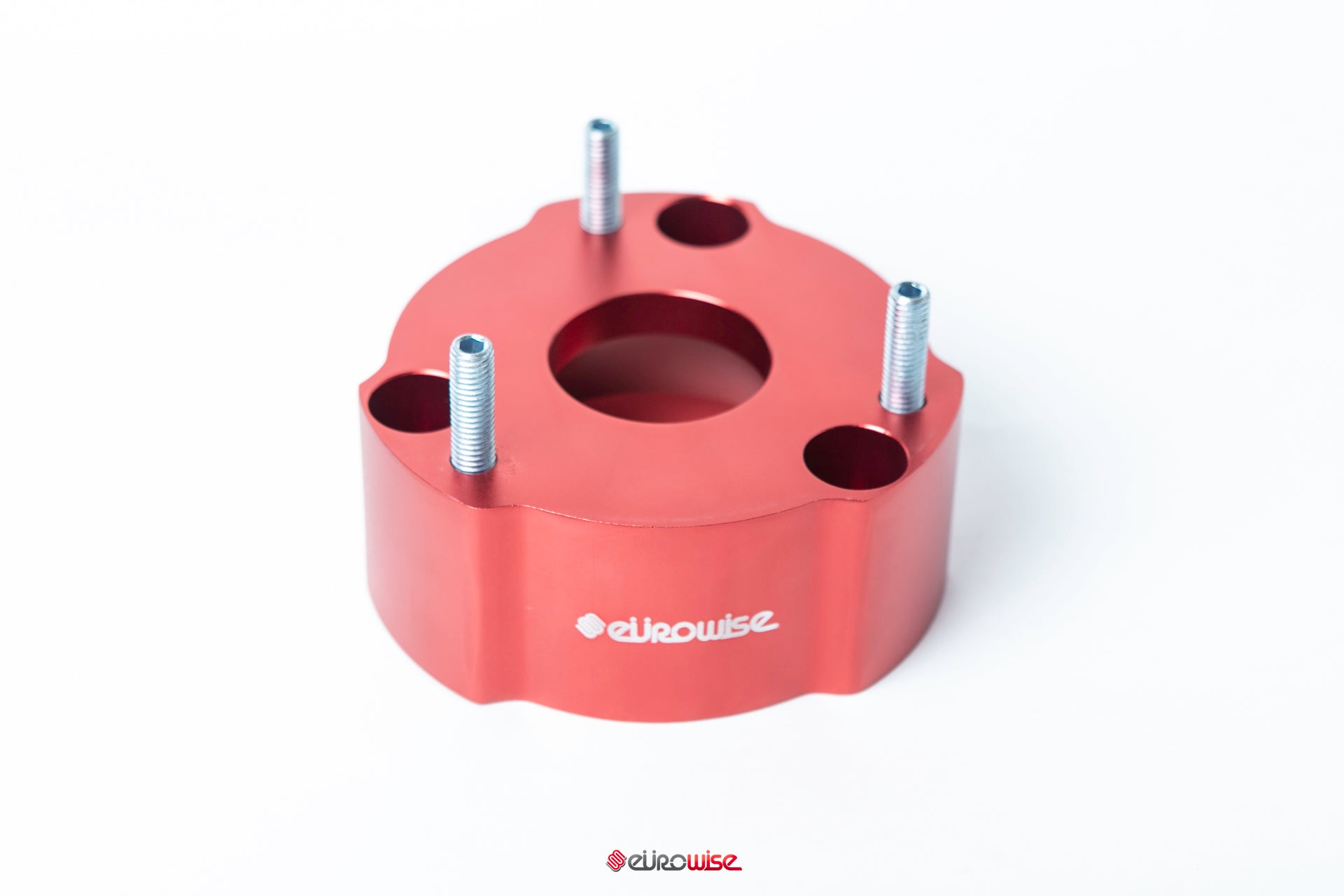

(2) Front Spacers w/ Hardware

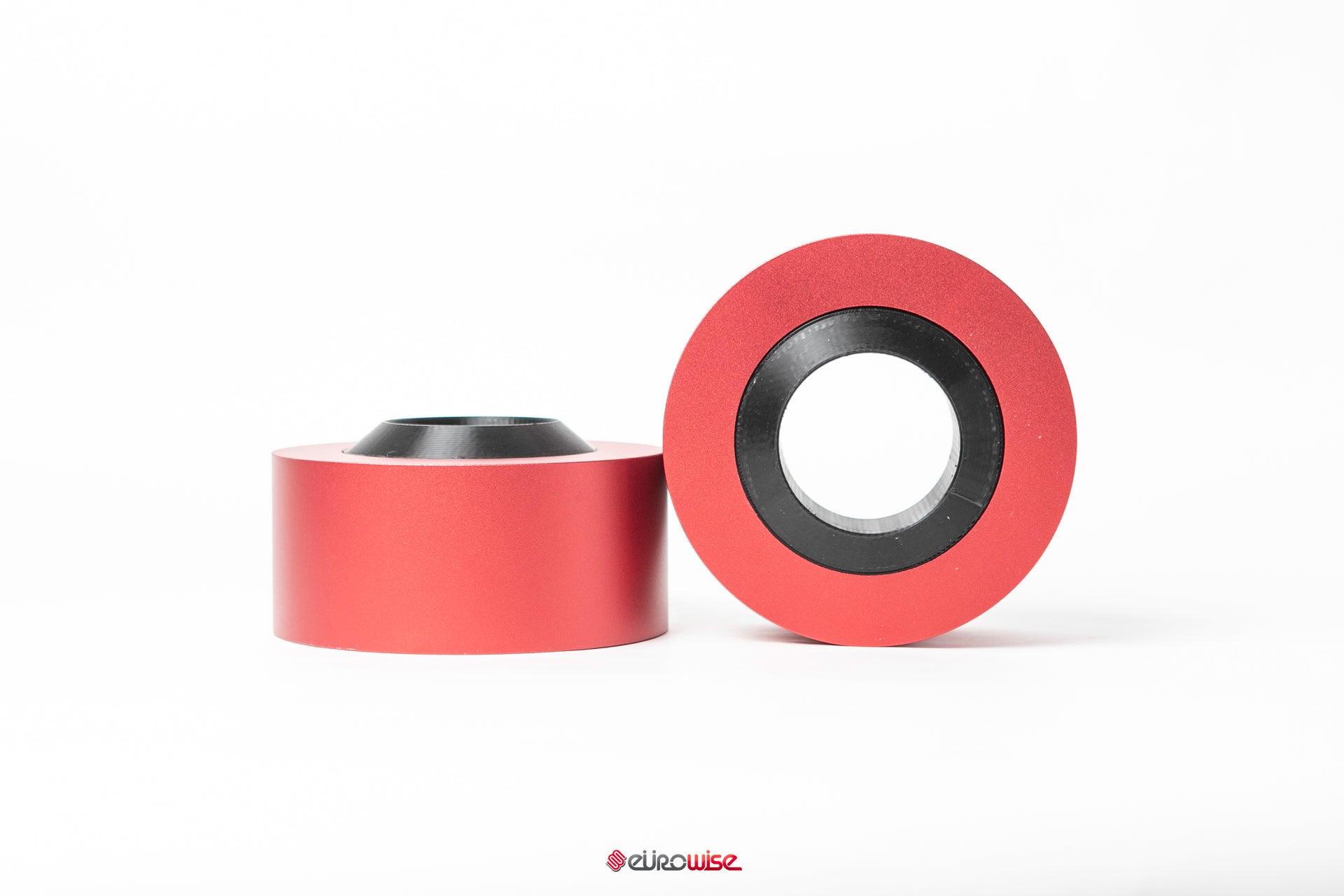

(2) Rear Spacers

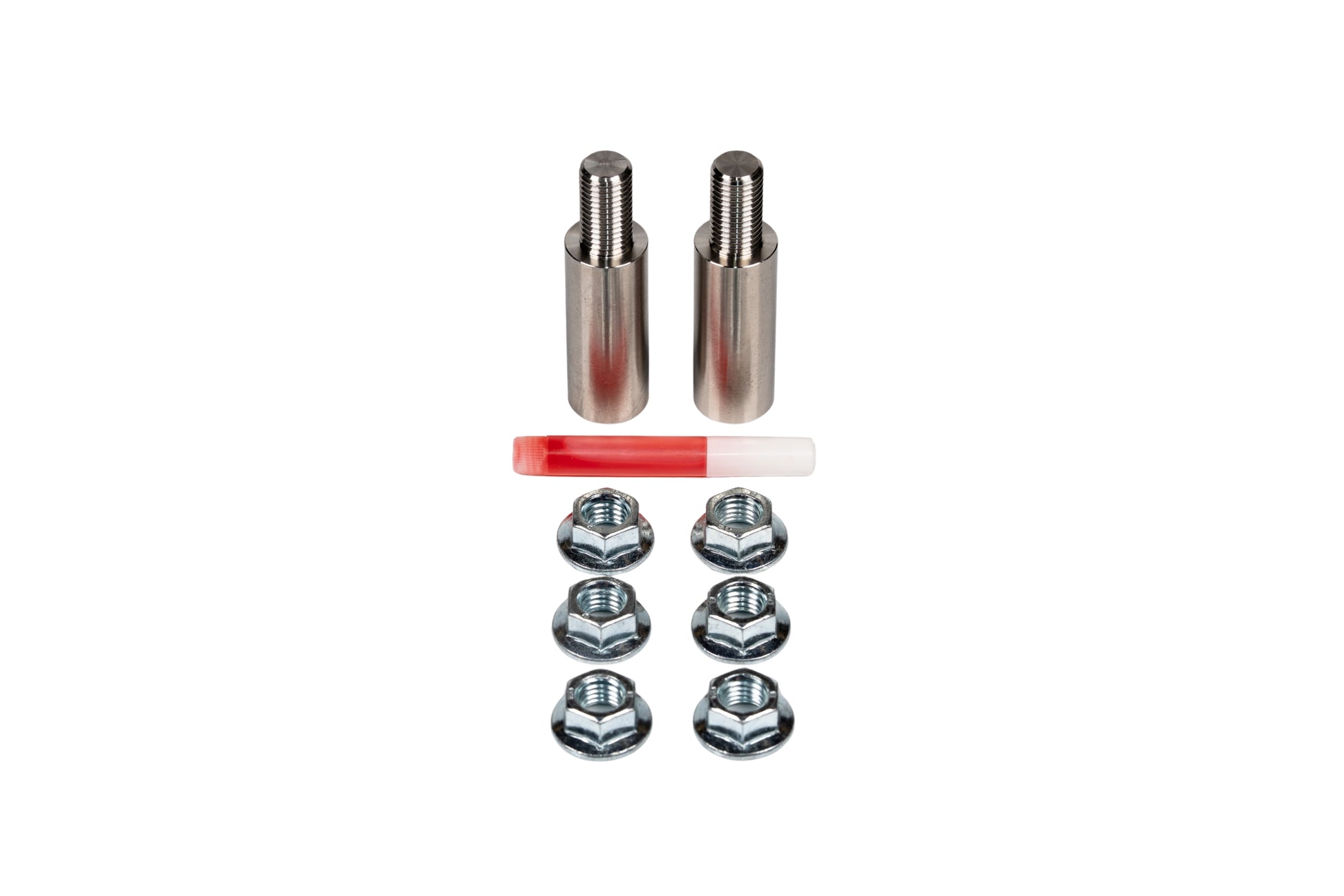

(2) Rear Shock Extensions

(1) Loctite for Rear Shock Extension

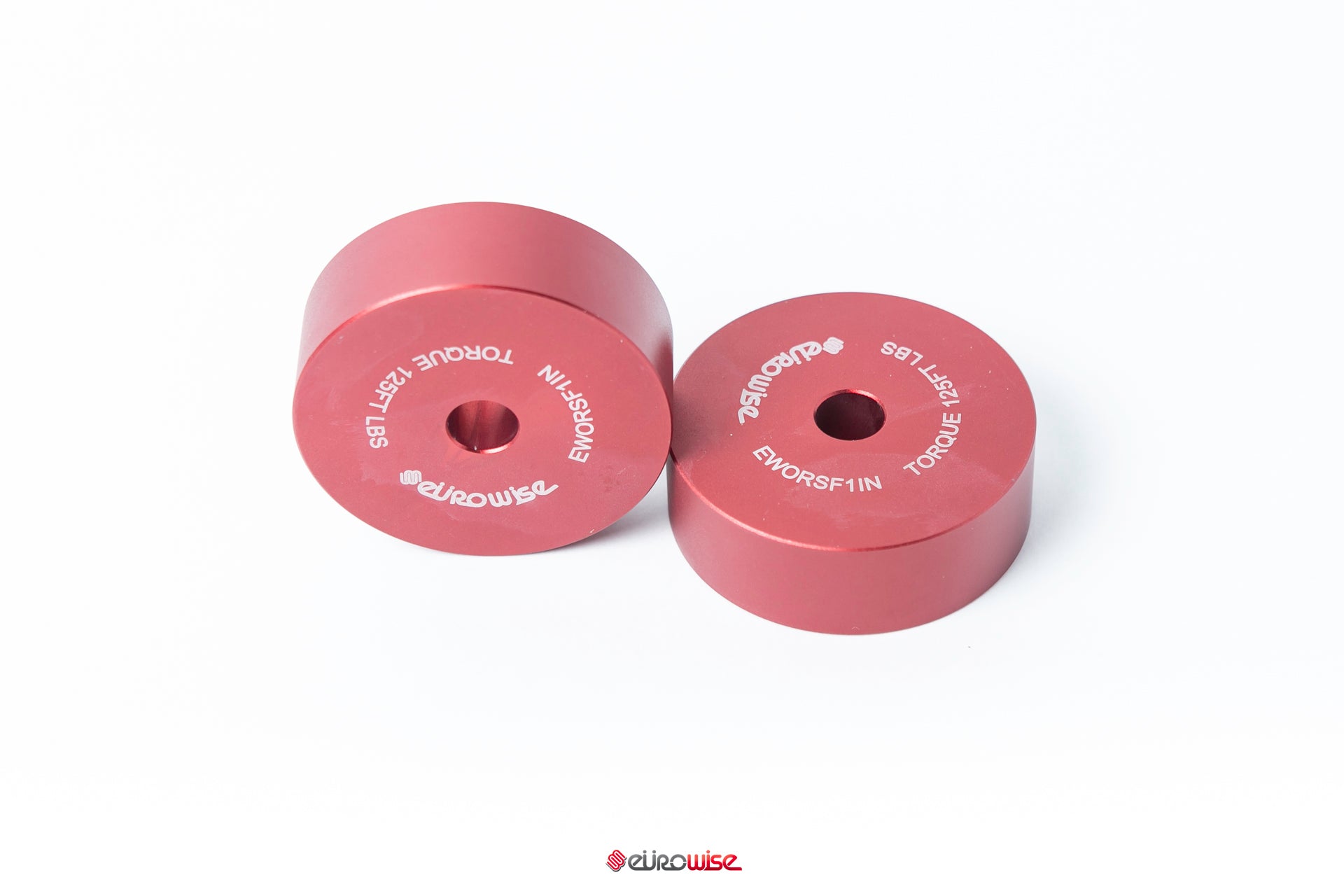

(1) 1" Subframe Drop Kit

Additional Options:

After over four years of research and testing on hundreds of vehicles, we've discovered that front and rear driveshaft flex dust boots can tear or separate from the subframe drop, leading to slight changes in driveline angles. In some cases, worn-out original boots can make this unavoidable.

While a transmission spacer drop isn’t absolutely necessary, it offers significant benefits by maintaining proper driveline angles and extending the life of the rubber boots. This kit includes a transmission and center driveshaft support drop, along with a new center support bracket designed to replace the original—eliminating the risk of rubbing.

Choose the transmission drop bracket thickness that matches your subframe drop size. If you have a 1/2-inch subframe drop, center support bearing drop spacers will not be included.

Product Link for More Info

HELPFUL LINKS:

Tire Fitment Guide

Installation Guide

Offroad Build Gallery

NOTE:
Please note that the physical thickness of the billet spacers does not equate to the actual lift height. Therefore, it is normal if the spacer does not measure precisely 3 inches in thickness.

Install at your own discretion, professional installation recommended. We are not responsible for any damages that may occur of improper install and/or use.
